Removal [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 8

  2. DRAIN ENGINE COOLANT

    See step  1

  3. REMOVE RADIATOR GRILLE

    Refer to REMOVAL [11/2016 - ]

  4. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 27

  5. REMOVE BATTERY

    Refer to PROCEDURE - Step 26

  6. REMOVE HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 11

  7. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  8. DISCONNECT NO. 1 RADIATOR HOSE

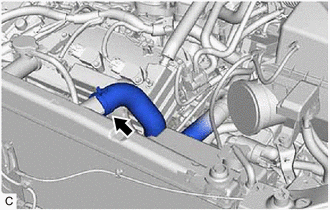

    1. Slide the clip and disconnect the No. 1 radiator hose.
      GTY722035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT RADIATOR RESERVE TANK HOSE
    1. Disconnect the radiator reserve tank hose.
      GTY443809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FAN SHROUD ASSEMBLY
    1. Disconnect the cooling fan ECU connector.
      GTY443802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 wire harness clamps.
    3. Disengage the 3 claws.
      GTY443401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 3 guides to remove the fan shroud assembly from the radiator assembly.
      NOTE:

      Do not damage the radiator assembly when removing the fan shroud assembly.

  11. REMOVE FAN LH
    1. Remove the nut and fan LH.
      GTY443803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FAN RH
    1. Remove the nut and fan RH.
      GTY454728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE COOLING FAN MOTOR LH

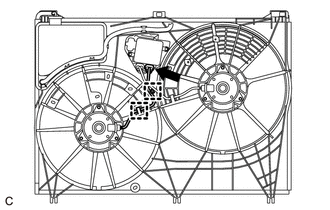

    1. Disconnect the cooling fan motor LH connector and disengage the wire harness from the 2 clamps.
      GTY723245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

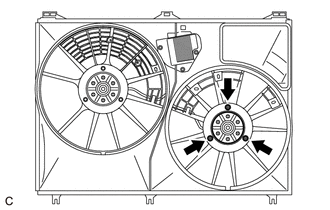

    2. Remove the 3 screws and cooling fan motor LH.
      GTY443838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE COOLING FAN MOTOR RH

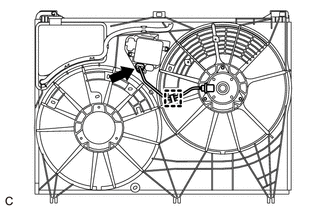

    1. Disconnect the cooling fan motor RH connector and disengage the wire harness from the clamp.
      GTY443806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

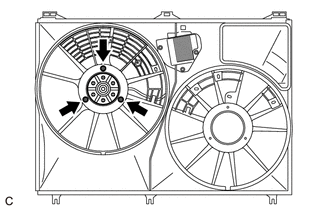

    2. Remove the 3 screws and cooling fan motor RH.
      GTY443837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
