Components [11/2016 - ]: Illustration

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

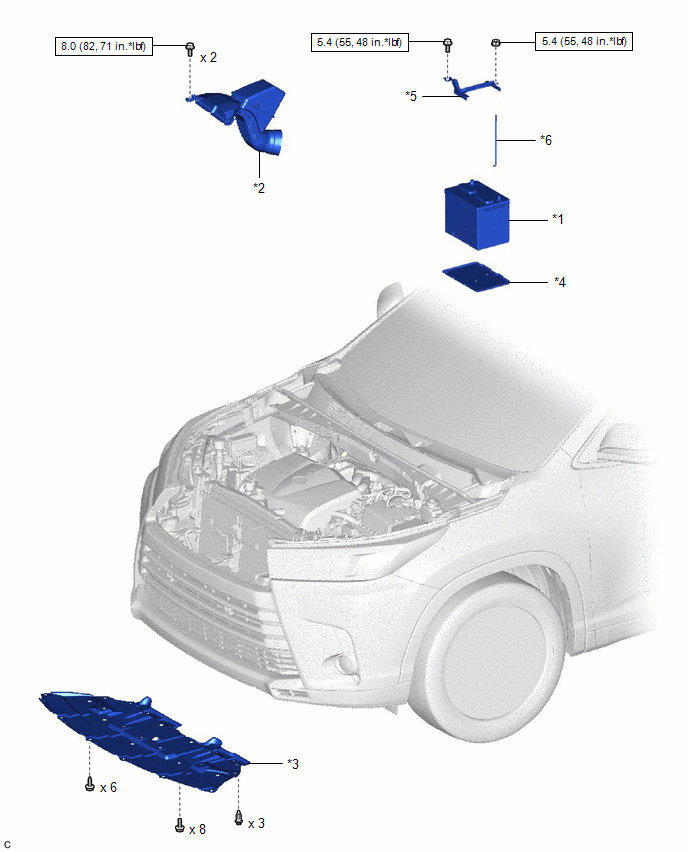

Fig 1: Cooling Fan Motor Replacement Components With Torque Specifications (1 Of 4)
GTY719726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BATTERY *2 INLET AIR CLEANER ASSEMBLY
*3 NO. 1 ENGINE UNDER COVER *4 BATTERY TRAY
*5 BATTERY CLAMP *6 BATTERY CLAMP BOLT
N*m (kgf*cm, ft.*lbf): Specified torque - -

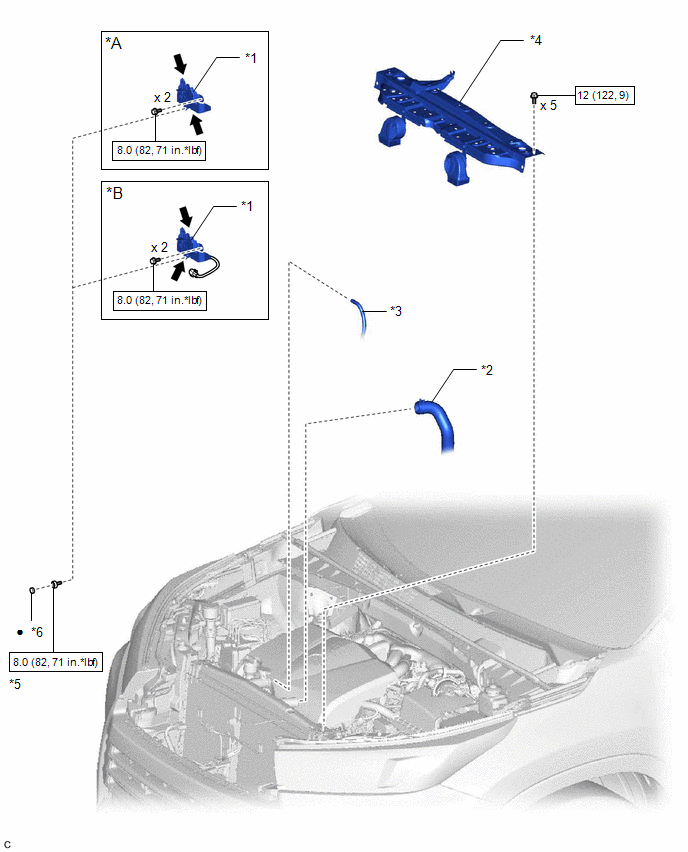

Fig 1: Cooling Fan Motor Replacement Components With Torque Specifications (2 Of 4)
GTY730151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/o Engine Hood Courtesy Switch *B w/ Engine Hood Courtesy Switch
*1 HOOD LOCK ASSEMBLY *2 NO. 1 RADIATOR HOSE
*3 RADIATOR RESERVE TANK HOSE *4 UPPER RADIATOR SUPPORT SUB-ASSEMBLY
*5 HOOD LOCK BOLT *6 HOOD LOCK NUT CAP
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP grease - -

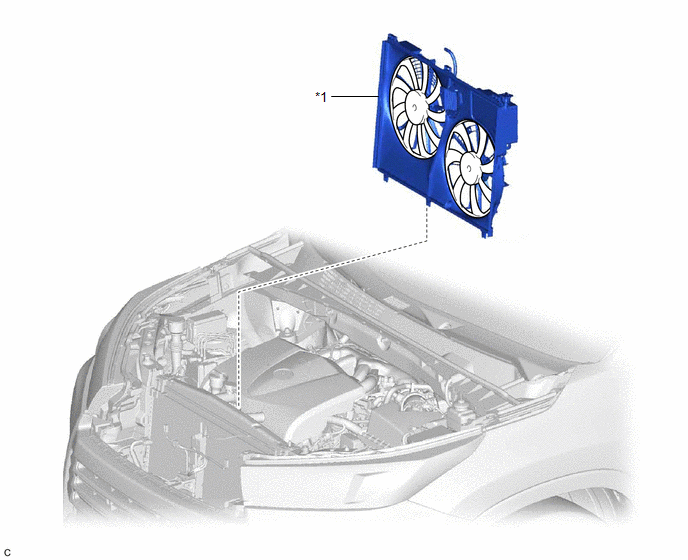

Fig 1: Cooling Fan Motor Replacement Components (3 Of 4)
GTY723313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FAN SHROUD ASSEMBLY - -

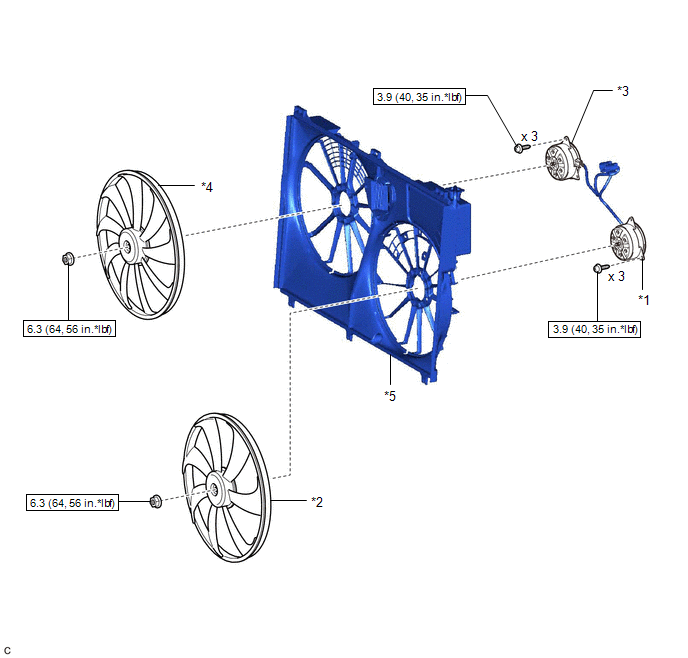

Fig 1: Cooling Fan Motor Replacement Components With Torque Specifications (4 Of 4)
GTY690747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COOLING FAN MOTOR LH *2 FAN LH
*3 COOLING FAN MOTOR RH *4 FAN RH
*5 FAN SHROUD - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
