Parts Location [11/2016 - ]: Illustration

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

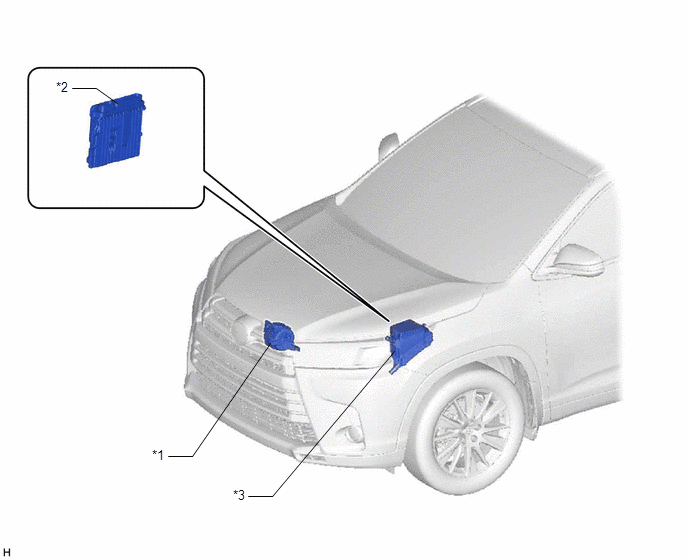

Fig 1: Charging System (w/o Battery Current Sensor) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	GENERATOR ASSEMBLY	*2	ECM
*3	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY	-	-

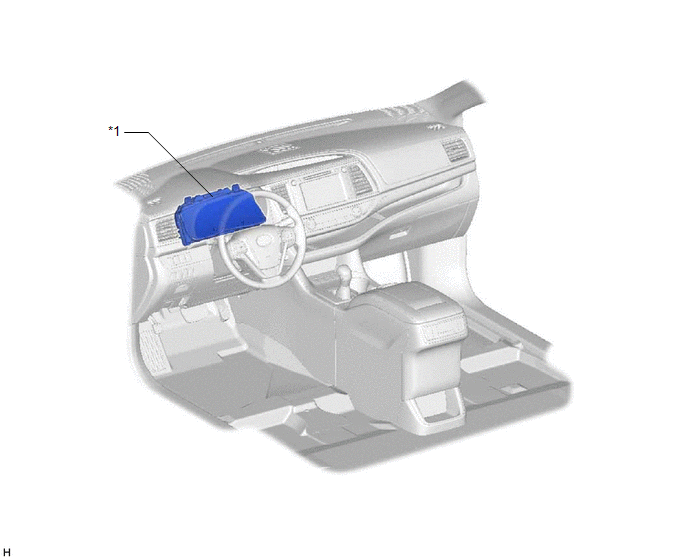

Fig 1: Charging System (w/o Battery Current Sensor) (2 Of 2)

COMBINATION METER ASSEMBLY
