Fuel Pump Control Circuit [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT FUEL PUMP CONTROL ECU

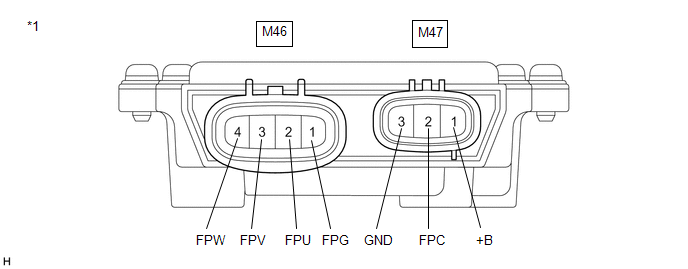

    GTY702959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 Fuel Pump Control ECU - -
    1. Remove the fuel pump control ECU.

      Refer to REMOVAL [11/2016 - ]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      M47-1 (+B) - M47-3 (GND) Always 200 Ω or higher
      M47-1 (+B) - M47-2 (FPC) Always 2 kΩ or higher
      M47-2 (FPC) - M47-3 (GND) Always 10 kΩ or higher
      M46-1 (FPG) - M47-3 (GND) Always 1 kΩ or higher
      M46-2 (FPU) - M47-3 (GND) Always 2 kΩ or higher
      M46-3 (FPV) - M47-3 (GND) Always 2 kΩ or higher
      M46-4 (FPW) - M47-3 (GND) Always 2 kΩ or higher

      HINT:

      This procedure checks for an internal short of the fuel pump control ECU when its transistor is stuck on.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPLACE FUEL PUMP CONTROL ECU. Refer to  REMOVAL [11/2016 - ]

    Result:  1

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (POWER SOURCE OF FUEL PUMP CONTROL ECU)
    GTY737604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Front view of wire harness connector
    (to Fuel Pump Control ECU)
    1. Disconnect the fuel pump control ECU connector.
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      M47-1 (+B) - M47-3 (GND) Ignition switch ON 11 to 14 V

      HINT:

      Make a note of the measured voltage as it may be used in a following Active Test.

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    See step  7

    Result:  1

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (FUEL PUMP CONTROL ECU - ECM)
    1. Disconnect the fuel pump control ECU assembly connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      M47-2 (FPC) - A43-18 (FPC) Always Below 1 Ω
      M47-2 (FPC) or A43-18 (FPC) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  1

    OK

    See step  4

  4. PERFORM ACTIVE TEST USING TECHSTREAM (FUEL PUMP SINGLE PHASE ENERGIZATION)

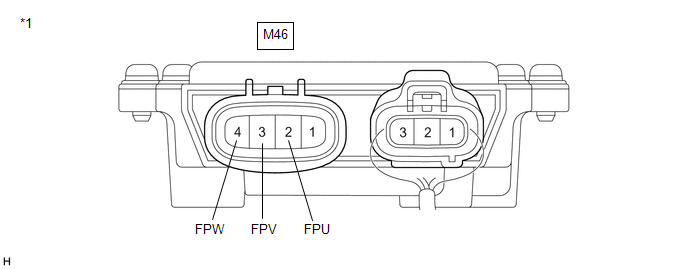

    GTY714182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 Fuel Pump Control ECU - -
    1. Disconnect the M46 fuel pump control ECU connector.
    2. Connect the Techstream to the DLC3.
    3. Turn the ignition switch to ON.
    4. Turn the Techstream on.
    5. Enter the following menus: Powertrain / Engine / Active Test / Fuel Pump Single Phase Energization.

      Powertrain > Engine > Active Test

      Tester Display
      Fuel Pump Single Phase Energization
    6. Operate the fuel pump control ECU using the Active Test function and measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Techstream Operation Specified Condition
      M46-2 (FPU) - Body ground U Phase 4.4 to 8.4 V*
      M46-3 (FPV) - Body ground V Phase 4.4 to 8.4 V*
      M46-4 (FPW) - Body ground W Phase 4.4 to 8.4 V*

      HINT:

      • *: This Active Test restricts the fuel pump control ECU assembly output duty cycle to 50%. Therefore, the output voltage of the fuel pump control ECU assembly will be approximately 50% of the power source voltage measured in a previous step.
      • Before performing this inspection, check that the battery voltage is between 11 and 14 V (not depleted).

      Result

      Result Proceed to
      The U phase, V phase and W phase are all normal A
      The U phase, V phase or W phase is abnormal B
      The U phase, V phase and W phase are all abnormal C

    Result:  3

    B

    REPLACE FUEL PUMP CONTROL ECU. Refer to  REMOVAL [11/2016 - ]

    Result:  2

    C

    See step  6

    Result:  1

    A

    See step  5

  5. CHECK HARNESS AND CONNECTOR (FUEL PUMP CONTROL ECU - FUEL PUMP (FOR LOW PRESSURE SIDE))
    1. Disconnect the fuel pump control ECU connector.
    2. Disconnect the fuel pump (for low pressure side) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      M46-2 (FPU) - M48-3 (BLPU) Always Below 1 Ω
      M46-3 (FPV) - M48-4 (BLPV) Always Below 1 Ω
      M46-4 (FPW) - M48-2 (BLPW) Always Below 1 Ω
      M46-2 (FPU) or M48-3 (BLPU) - Body ground and other terminals Always 10 kΩ or higher
      M46-3 (FPV) or M48-4 (BLPV) - Body ground and other terminals Always 10 kΩ or higher
      M46-4 (FPW) or M48-2 (BLPW) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

      HINT:

      Perform "Inspection After Repair" after replacing the fuel pump (for low pressure side).

      Refer to INITIALIZATION [11/2016 - ]

    Result:  1

    OK

    REPLACE FUEL PUMP (FOR LOW PRESSURE SIDE). Refer to  REMOVAL [11/2016 - ]

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  6. INSPECT ECM (FPC TERMINAL)
    GTY716915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Front view of wire harness connector
    (to Fuel Pump Control ECU)
    1. Disconnect the fuel pump control ECU connector.
    2. Connect the Techstream to the DLC3.
    3. Turn the ignition switch to ON.
    4. Turn the Techstream on.
    5. Enter the following menus: Powertrain / Engine / Active Test / Fuel Pump Single Phase Energization.

      Powertrain > Engine > Active Test

      Tester Display
      Fuel Pump Single Phase Energization
    6. Operate the fuel pump control ECU using the Active Test function and measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Techstream Operation Specified Condition
      M47-2 (FPC) - Body ground Before Active Test → During Active Test Before Active Test: Resistance is stable → During Active Test: Resistance fluctuates*

      HINT:

      *: Using the Active Test, duty control of the transistors in the ECM will be performed. Due to the duty control, resistance of the FPC terminal will be unstable during the Active Test. If the resistance is stable before the Active Test and fluctuates while performing the Active Test, it can be determined that the transistor is operating. If the transistor does not operate during the Active Test, the ECM may be malfunctioning.

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    REPLACE FUEL PUMP CONTROL ECU. Refer to  REMOVAL [11/2016 - ]

    Result:  2

    NG

    REPLACE ECM. Refer to  REMOVAL [11/2016 - ]

  7. CHECK HARNESS AND CONNECTOR (POWER SOURCE VOLTAGE OF FUEL PMP RELAY)
    1. Remove the FUEL PMP relay from the engine room relay block and junction block assembly.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      3 (FUEL PMP relay) - Body ground Always 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - FUEL PMP RELAY)

    Result:  1

    OK

    See step  8

  8. INSPECT FUEL PMP RELAY
    1. Inspect the FUEL PMP relay.

      Refer to ON-VEHICLE INSPECTION [11/2016 - ]

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPLACE FUEL PMP RELAY

    Result:  1

    OK

    See step  9

  9. CHECK HARNESS AND CONNECTOR (SEMICONDUCTOR PWR INTEGRATION ECU - ECM)
    1. Disconnect the semiconductor pwr integration ECU connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1G-6 - A43-46 (MREL) Always Below 1 Ω
      1G-6 or A43-46 (MREL) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  1

    OK

    See step  10

  10. CHECK HARNESS AND CONNECTOR (SEMICONDUCTOR PWR INTEGRATION ECU - FUEL PMP RELAY)
    1. Remove the FUEL PMP relay from the engine room relay block and junction block assembly.
    2. Disconnect the semiconductor pwr integration ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1G-8 - 2 (FUEL PMP relay) Always Below 1 Ω
      1G-8 or 2 (FUEL PMP relay) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  1

    OK

    See step  11

  11. CHECK HARNESS AND CONNECTOR (FUEL PMP RELAY - BODY GROUND)
    1. Remove the FUEL PMP relay from the engine room relay block and junction block assembly.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 (FUEL PMP relay) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  1

    OK

    See step  12

  12. CHECK HARNESS AND CONNECTOR (FUEL PMP RELAY - FUEL PUMP CONTROL ECU)
    1. Remove the FUEL PMP relay from the engine room relay block and junction block assembly.
    2. Disconnect the fuel pump control ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      5 (FUEL PMP relay) - M47-1 (+B) Always Below 1 Ω
      5 (FUEL PMP relay) or M47-1 (+B) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  1

    OK

    See step  13

  13. CHECK HARNESS AND CONNECTOR (FUEL PUMP CONTROL ECU - BODY GROUND)
    1. Disconnect the fuel pump control ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      M47-3 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    GO TO ECM POWER SOURCE CIRCUIT. Refer to  ECM Power Source Circuit [11/2016 - ]

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
