DTC P161D-9E: Starter Delay Circuit Stuck On [11/2016 - ]: Procedure
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK ENGINE STOP AND START ECU (STA, STA2 SIGNAL)

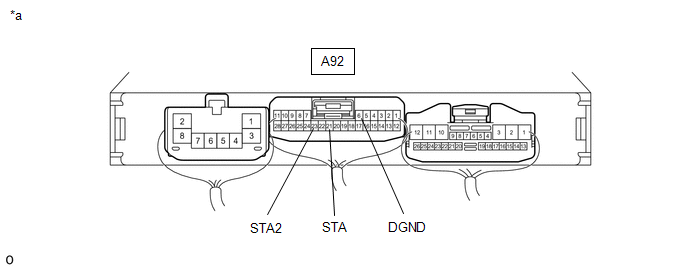

- Connect an oscilloscope to the STA, STA2 and DGND terminals of the stop and start ECU connector.
*a Component with harness connected
(Engine Stop and Start ECU)- - - Check the waveform immediately after turning the ignition switch START.
Item Condition Tester Connection A92-21 (STA) - A92-6 (DGND)
A92-23 (STA2) - A92-6 (DGND)Condition Engine started by ignition switch operation Result Proceed to Time between ST relay (for starter pinion) turning on and ST NO. 2 relay (for starter motor) turning on becomes 0.016 seconds or more A Time between ST relay (for starter pinion) turning on and ST NO. 2 relay (for starter motor) turning on becomes less than 0.016 seconds B
Result:
A
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2016 - ] .
Result:
B
REPLACE ENGINE STOP AND START ECU. Refer to REMOVAL [11/2016 - ] .
- Connect an oscilloscope to the STA, STA2 and DGND terminals of the stop and start ECU connector.
