DTC P0942-96: Hydraulic Pressure Unit Component Internal Failure [11/2016 - ]: Procedure

1. Drive the vehicle to warm up the engine and automatic transaxle fluid.

   HINT:

   The oil pump with solenoid assembly may not operate properly if the automatic transaxle fluid temperature is low. Make sure to warm up the automatic transaxle fluid before performing the Active Test. (Automatic transaxle fluid temperature: 25°C (77°F) or higher)

2. Connect the Techstream to the DLC3.
3. Turn the ignition switch to ON.

   HINT:

   Do not start the engine.

4. Turn the Techstream on.

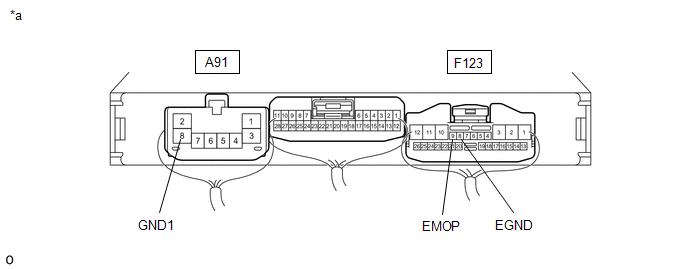

5. Connect an oscilloscope to the EMOP, EGND and GND1 terminals of the engine stop and start ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Component with harness connected (Engine Stop and Start ECU)

   -

   -

6. Enter the following menus: Powertrain / Stop and Start / Active Test / Electromagnetic Oil Pump.

   Powertrain > Stop and Start > Active Test

   Tester Display
   Electromagnetic Oil Pump

7. Check the waveform while performing the Active Test.

   Item	Condition
   Tester Connection	F123-8 (EGND) - A91-8 (GND1) F123-9 (EMOP) - A91-8 (GND1)
   Tool Setting	10 V/DIV., 20 ms./DIV.
   Condition	Ignition switch ON (engine is stopped) Active Test "Electromagnetic Oil Pump" being performed

   Standard

   The waveform is similar to that shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Proceed to
   OK
   NG

Result:

NG

REPLACE OIL PUMP WITH SOLENOID ASSEMBLY

• for 2WD Models:

  Refer to DISASSEMBLY [11/2016 - ]

• for AWD Models:

  Refer to DISASSEMBLY [11/2016 - ]

Result:

OK

Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Stop and Start / Trouble Codes.
5. Clear the DTCs.

   Powertrain > Stop and Start > Clear DTCs

Result:

NEXT

Go to next step

1. Start the engine.
2. Perform a road test.
3. Enter the following menus: Powertrain / Stop and Start / Trouble Codes.
4. Read the DTCs.

   Powertrain > Stop and Start > Trouble Codes

   Result	Proceed to
   DTC P094296 is output	A
   DTC P094296 is not output	B

Result:

A

REPLACE ENGINE STOP AND START ECU.  Refer to REMOVAL [11/2016 - ] .

Result:

B

USE SIMULATION METHOD TO CHECK.  Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2016 - ] .
