Removal [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 3

  2. REMOVE NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9

  3. REMOVE HEATED OXYGEN SENSOR (for 2WD)

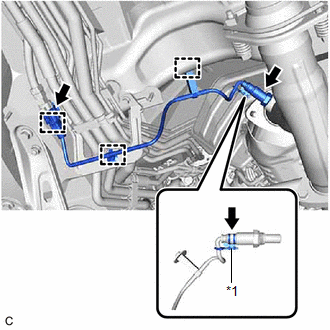

    1. Disconnect the heated oxygen sensor connector.
      GTY710847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Wire Harness Clamp Bracket
    2. Disengage the 3 wire harness clamps.
    3. Remove the wire harness clamp bracket from the heated oxygen sensor.

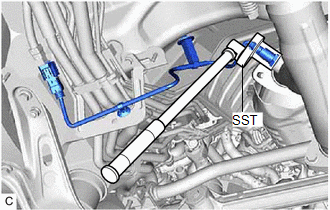

    4. Using SST, remove the heated oxygen sensor from the front No. 3 exhaust pipe sub-assembly.
      • SST: 09224-00012
      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.

      GTY723713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 4

  5. REMOVE HEATED OXYGEN SENSOR (for AWD)
    1. Remove the wire harness clamp bracket from the heated oxygen sensor.
      GTY659041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the heated oxygen sensor from the front No. 3 exhaust pipe sub-assembly.
      • SST: 09224-00012
      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.

      GTY630949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
