Installation [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL HEATED OXYGEN SENSOR (for AWD)

    HINT:

    Perform "Inspection After Repairs" after replacing the heated oxygen sensor.

    Refer to INITIALIZATION [11/2016 - ]

    1. Using SST, install the heated oxygen sensor to the front No. 3 exhaust pipe sub-assembly.
      GTY660178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length
      • SST: 09224-00012

      Specified tightening torque

      Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [11/2016 - ]

      • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

        37.7 N*m (384 kgf*cm, 28 ft.*lbf)

    2. Install the wire harness clamp bracket to the heated oxygen sensor.

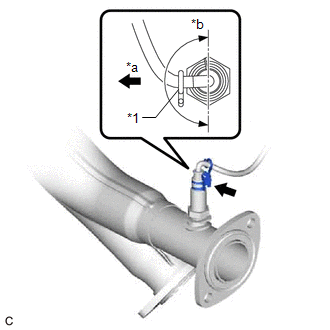

      GTY627841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Wire Harness Clamp Bracket
      *a Left of Vehicle
      *b 180°

      HINT:

      Make sure the direction of the wire harness clamp bracket is as shown in the illustration.

  2. INSTALL FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 12

  3. INSTALL HEATED OXYGEN SENSOR (for 2WD)

    HINT:

    Perform "Inspection After Repairs" after replacing the heated oxygen sensor.

    Refer to INITIALIZATION [11/2016 - ]

    1. Using SST, install the heated oxygen sensor to the front No. 3 exhaust pipe sub-assembly.

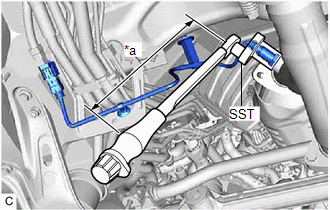

      GTY731931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length
      • SST: 09224-00012

      Specified tightening torque

      Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [11/2016 - ]

      • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

        37.7 N*m (384 kgf*cm, 28 ft.*lbf)

    2. Install the wire harness clamp bracket to the heated oxygen sensor.

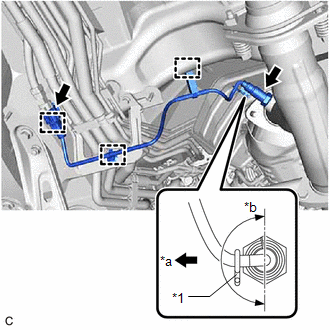

      GTY722483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Wire Harness Clamp Bracket
      *a Left of Vehicle
      *b 180°

      HINT:

      Make sure the direction of the wire harness clamp bracket is as shown in the illustration.

    3. Engage the 3 wire harness clamps.
    4. Connect the heated oxygen sensor connector.
  4. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 9

  5. INSTALL NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 102

  6. INSTALL FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 14

  7. PERFORM INITIALIZATION
    1. Perform "Inspection After Repair" after replacing the heated oxygen sensor.

      Refer to INITIALIZATION [11/2016 - ]
