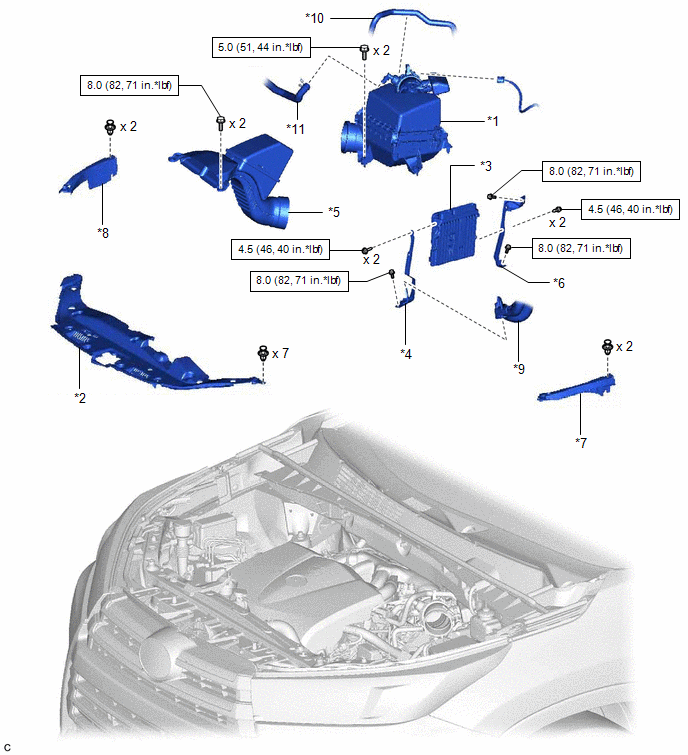

Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Description | Callout | Description |
| *1 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE | *2 | COOL AIR INTAKE DUCT SEAL |
| *3 | ECM | *4 | ECM BRACKET |
| *5 | INLET AIR CLEANER ASSEMBLY | *6 | NO. 2 ECM BRACKET |
| *7 | RADIATOR SIDE DEFLECTOR SEAL LH | *8 | RADIATOR SIDE SEAL RH |
| *9 | WIRE HARNESS | *10 | NO. 1 FUEL VAPOR FEED HOSE |
| *11 | NO. 2 VENTILATION HOSE | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
