Components [11/2016 - ]: Illustration

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

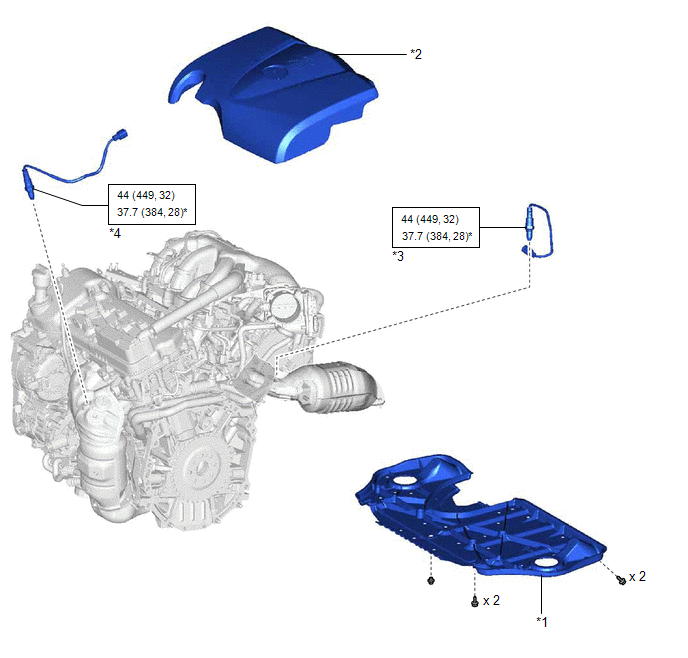

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications
GTY728982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 ENGINE UNDER COVER *2 V-BANK COVER SUB-ASSEMBLY
*3 AIR FUEL RATIO SENSOR (for Bank 1) *4 AIR FUEL RATIO SENSOR (for Bank 2)
N*m (kgf*cm, ft.*lbf): Specified torque * For use with SST
