Disassembly [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE CLUTCH DRUM OIL SEAL RING
    1. Remove the 4 clutch drum oil seal rings from the stator shaft assembly.
      GTY737213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Stop And Start System
      *B w/o Stop And Start System
  2. REMOVE OIL STRAINER ASSEMBLY
    1. Using a T30 "TORX" socket wrench, remove the 2 bolts and oil strainer assembly from the front oil pump cover sub-assembly.
      GTY710052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Stop And Start System
      *B w/o Stop And Start System

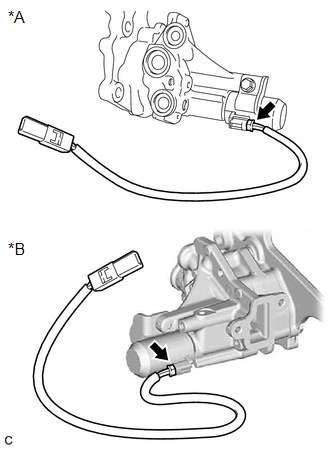

  3. REMOVE TRANSMISSION WIRE (OIL PUMP WITH SOLENOID ASSEMBLY) (w/ Stop And Start System)
    1. Disconnect the connector to remove the transmission wire (oil pump with solenoid assembly).
      GTY755928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type A
      *B Type B
  4. REMOVE OIL PUMP WITH SOLENOID ASSEMBLY (w/ Stop And Start System)
    1. w/o Clamp:
      GTY716323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and oil pump with solenoid assembly from the front oil pump cover sub-assembly.
    2. w/ Clamp:
      GTY761153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt, clamp and oil pump with solenoid assembly from the front oil pump cover sub-assembly.
  5. REMOVE STATOR SHAFT ASSEMBLY
    1. Remove the 5 bolts and stator shaft assembly from the front oil pump body.
      GTY698817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT OIL PUMP DRIVE GEAR
    1. Remove the front oil pump drive gear from the front oil pump body.
      GTY698819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT OIL PUMP DRIVEN GEAR
    1. Remove the front oil pump driven gear from the front oil pump body.
      GTY698818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT OIL PUMP BODY
    1. Remove the front oil pump body from the front oil pump cover sub-assembly.
      GTY698820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE RING PIN
    1. Remove the 2 ring pins from the front oil pump cover sub-assembly.
      GTY733622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
