Inspection [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT DIFFERENTIAL CASE ASSEMBLY

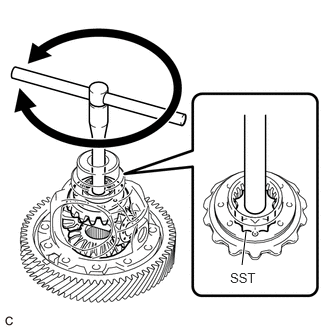

Using SST, rotate the front differential side gear as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09528-52010
1. 09528-05030

Standard

The front differential side gear does not lock when rotated in either direction.

If the result is not as specified, replace the differential case assembly.
