Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
for 2WD |
*B |
for AWD |
| *C |
Type A |
*D |
Type B |
| *1 |
IGNITION COIL ASSEMBLY |
*2 |
VACUUM PUMP ASSEMBLY |
| *3 |
NO. 2 WATER BY-PASS HOSE |
*4 |
NO. 3 WATER BY-PASS HOSE |
| *5 |
VENTILATION HOSE |
*6 |
NO. 2 VENTILATION HOSE |
| *7 |
V-RIBBED BELT |
*8 |
GENERATOR ASSEMBLY |
| *9 |
COMPRESSOR ASSEMBLY WITH PULLEY |
*10 |
V-RIBBED BELT TENSIONER ASSEMBLY |
| *11 |
WATER PUMP PULLEY |
*12 |
NO. 2 IDLER PULLEY SUB-ASSEMBLY |
| *13 |
ENGINE OIL LEVEL DIPSTICK GUIDE |
*14 |
NO. 5 CYLINDER BLOCK INSULATOR |
| *15 |
O-RING |
*16 |
REAR ENGINE MOUNTING BRACKET |
| *17 |
SENSOR WIRE |
*18 |
WIRE HARNESS CLAMP BRACKET |
| *19 |
RADIATOR PIPE CLAMP |
*20 |
NO. 1 COMPRESSOR MOUNTING BRACKET |
| *21 |
BRACKET |
*22 |
ENGINE OIL LEVEL DIPSTICK |
| *23 |
ENGINE OIL LEVEL DIPSTICK GUIDE O-RING |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1) |
*2 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1) |
| *3 |
VVT SENSOR (for Intake Side of Bank 1) |
*4 |
VVT SENSOR (for Exhaust Side of Bank 1) |
| *5 |
SPARK PLUG |
*6 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
| *7 |
CYLINDER HEAD COVER GASKET |
*8 |
SPARK PLUG TUBE GASKET |
| *9 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
*10 |
O-RING |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2) |
*2 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2) |
| *3 |
VVT SENSOR (for Intake Side of Bank 2) |
*4 |
VVT SENSOR (for Exhaust Side of Bank 2) |
| *5 |
SPARK PLUG |
*6 |
CYLINDER HEAD COVER SUB-ASSEMBLY LH |
| *7 |
NO. 2 CYLINDER HEAD COVER GASKET |
*8 |
SPARK PLUG TUBE GASKET |
| *9 |
PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) |
*10 |
OIL FILLER CAP SUB-ASSEMBLY |
| *11 |
OIL FILLER CAP GASKET |
*12 |
O-RING |
| *13 |
NO. 1 V-BANK COVER BRACKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
FRONT NO. 1 ENGINE MOUNTING BRACKET LH |
*2 |
WATER OUTLET |
| *3 |
NO. 2 WATER INLET HOUSING GASKET |
*4 |
ENGINE COOLANT TEMPERATURE SENSOR |
| *5 |
CYLINDER BLOCK WATER DRAIN COCK PLUG |
*6 |
CYLINDER BLOCK WATER DRAIN COCK SUB-ASSEMBLY |
| *7 |
TAPER SCREW PLUG |
*8 |
NO. 4 WATER BY-PASS HOSE |
| *9 |
NO. 5 WATER BY-PASS HOSE |
*10 |
WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
| *11 |
WATER BY-PASS HOSE |
*12 |
CRANKSHAFT POSITION SENSOR PROTECTOR |
| *13 |
CRANKSHAFT POSITION SENSOR |
*14 |
SENSOR WIRE |
| *15 |
REAR ENGINE OIL SEAL |
*16 |
REAR ENGINE OIL SEAL RETAINER |
| *17 |
ENGINE OIL PRESSURE SWITCH ASSEMBLY |
*18 |
OIL COOLER ASSEMBLY |
| *19 |
OIL COOLER PIPE |
*20 |
NO. 1 CYLINDER BLOCK INSULATOR |
| *21 |
HOSE CLAMP |
*22 |
O-RING |
| *23 |
NO. 2 CYLINDER BLOCK INSULATOR |
*24 |
NO. 3 CYLINDER BLOCK INSULATOR |
| *25 |
OIL COOLER GASKET |
*26 |
OIL HOLE COVER GASKET |
| *27 |
GASKET |
*28 |
NO. 1 OIL COOLER BRACKET |
| *29 |
STUD BOLT |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
|
Adhesive 1344 |
|
MP grease |
* |
Precoated part |
|
Do not apply lubricants to the threaded parts |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
NO. 1 OIL PAN BAFFLE PLATE |
*2 |
NO. 2 OIL PAN SUB-ASSEMBLY |
| *3 |
OIL FILTER CAP ASSEMBLY |
*4 |
OIL FILTER DRAIN PLUG |
| *5 |
OIL PAN SUB-ASSEMBLY |
*6 |
OIL STRAINER SUB-ASSEMBLY |
| *7 |
OIL FILTER ELEMENT |
*8 |
OIL PAN DRAIN PLUG GASKET |
| *9 |
OIL PAN DRAIN PLUG |
*10 |
O-RING |
| *11 |
ENGINE OIL LEVEL SENSOR |
*12 |
OIL FILTER BRACKET CLIP |
| *13 |
OIL PAN GASKET |
*14 |
STUD BOLT |
| *15 |
OIL STRAINER GASKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

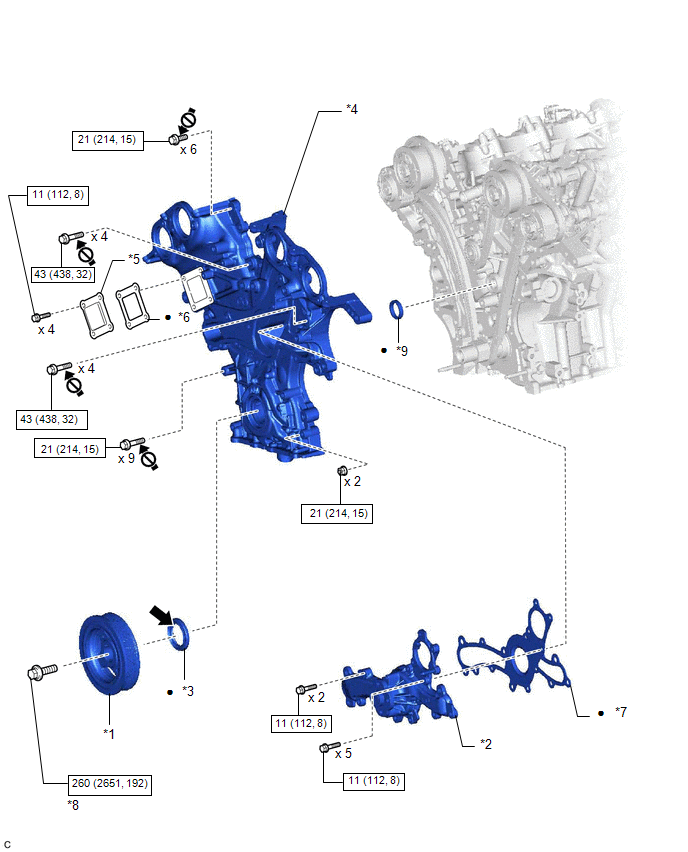

| Callout |
Description |
Callout |
Description |
| *1 |
CRANKSHAFT PULLEY |
*2 |
ENGINE WATER PUMP ASSEMBLY |
| *3 |
TIMING CHAIN CASE OIL SEAL |
*4 |
TIMING CHAIN COVER ASSEMBLY |
| *5 |
TIMING CHAIN COVER PLATE |
*6 |
TIMING CHAIN COVER GASKET |
| *7 |
WATER PUMP GASKET |
*8 |
CRANKSHAFT PULLEY SET BOLT |
| *9 |
OIL PUMP GASKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
MP grease |
|
Do not apply lubricants to the threaded parts |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CHAIN SUB-ASSEMBLY |
*2 |
CHAIN TENSIONER SLIPPER |
| *3 |
CRANKSHAFT TIMING SPROCKET |
*4 |
IDLE SPROCKET ASSEMBLY |
| *5 |
NO. 1 CHAIN TENSIONER ASSEMBLY |
*6 |
NO. 1 CHAIN VIBRATION DAMPER |
| *7 |
NO. 2 CHAIN VIBRATION DAMPER |
*8 |
NO. 1 IDLE GEAR SHAFT |
| *9 |
NO. 2 IDLE GEAR SHAFT |
*10 |
CRANKSHAFT TIMING GEAR KEY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT |
*2 |
CAMSHAFT BEARING CAP (for Bank 1) |
| *3 |
CAMSHAFT HOUSING SUB-ASSEMBLY |
*4 |
NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY |
| *5 |
NO. 2 CAMSHAFT |
*6 |
NO. 2 CHAIN TENSIONER ASSEMBLY |
| *7 |
VALVE LASH ADJUSTER ASSEMBLY |
*8 |
VALVE STEM CAP |
| *9 |
NO. 2 CHAIN SUB-ASSEMBLY (for Bank 1) |
*10 |
CAMSHAFT TIMING GEAR ASSEMBLY (for Bank 1) |
| *11 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY (for Bank 1) |
*12 |
CAMSHAFT BEARING CAP OIL HOLE GASKET |
| *13 |
FUEL PUMP LIFTER HOUSING |
*14 |
CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 1) |
| *15 |
CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 1) |
*16 |
OIL CONTROL VALVE FILTER |
| *17 |
STRAIGHT PIN (for Bank 1) |
*18 |
CAMSHAFT BEARING CAP SETTING RING PIN (for Bank 1) |
| *19 |
NO. 1 CAMSHAFT BEARING CAP |
*20 |
NO. 2 CAMSHAFT BEARING CAP |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT BEARING CAP (for Bank 2) |
*2 |
CAMSHAFT HOUSING SUB-ASSEMBLY LH |
| *3 |
NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY |
*4 |
NO. 3 CAMSHAFT SUB-ASSEMBLY |
| *5 |
NO. 3 CHAIN TENSIONER ASSEMBLY |
*6 |
NO. 4 CAMSHAFT SUB-ASSEMBLY |
| *7 |
VALVE LASH ADJUSTER ASSEMBLY |
*8 |
VALVE STEM CAP |
| *9 |
NO. 2 CHAIN SUB-ASSEMBLY (for Bank 2) |
*10 |
CAMSHAFT TIMING GEAR ASSEMBLY (for Bank 2) |
| *11 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY (for Bank 2) |
*12 |
CAMSHAFT BEARING CAP OIL HOLE GASKET LH |
| *13 |
CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 2) |
*14 |
CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 2) |
| *15 |
STRAIGHT PIN (for Bank 2) |
*16 |
CAMSHAFT BEARING CAP SETTING RING PIN (for Bank 2) |
| *17 |
OIL CONTROL VALVE FILTER |
*18 |
NO. 3 CAMSHAFT BEARING CAP |
| *19 |
NO. 4 CAMSHAFT BEARING CAP |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CYLINDER HEAD SUB-ASSEMBLY |
*2 |
CYLINDER HEAD GASKET |
| *3 |
CYLINDER HEAD LH |
*4 |
NO. 2 CYLINDER HEAD GASKET |
| *5 |
CYLINDER HEAD SET PLATE WASHER |
*6 |
CYLINDER HEAD SET BOLT |
| *7 |
WATER INLET PIPE |
*8 |
CYLINDER BLOCK SUB-ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
| *T1 |
1st: 36 (367, 27)
2nd: Turn 90°
3rd: Turn 90° |
- |
- |
