Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

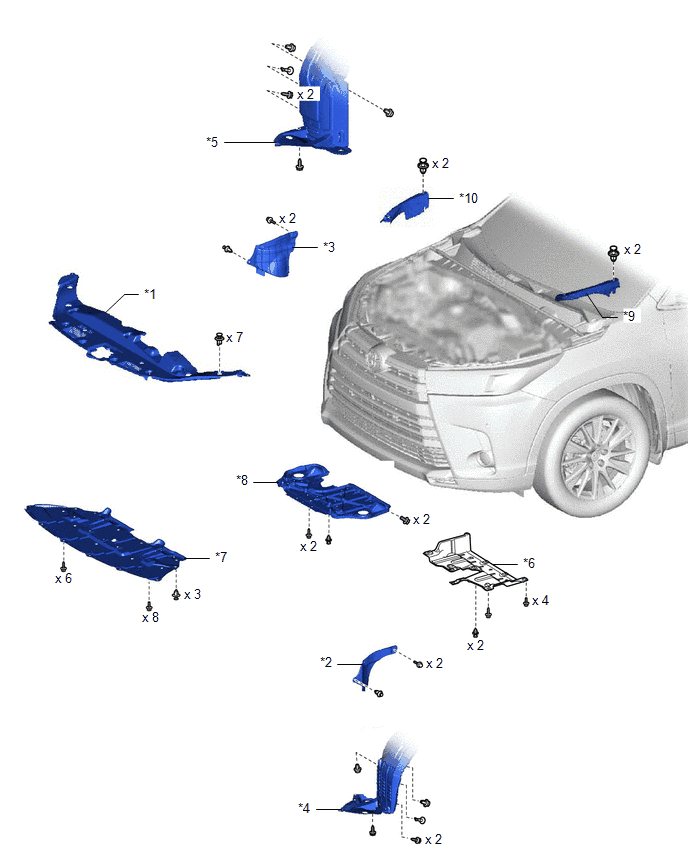

| Callout |
Description |
Callout |
Description |
| *1 |
COOL AIR INTAKE DUCT SEAL |
*2 |
FRONT FENDER APRON SEAL LH |
| *3 |
FRONT FENDER APRON SEAL RH |
*4 |
FRONT FENDER LINER LH |
| *5 |
FRONT FENDER LINER RH |
*6 |
FRONT FLOOR COVER LH |
| *7 |
NO. 1 ENGINE UNDER COVER |
*8 |
NO. 2 ENGINE UNDER COVER |
| *9 |
RADIATOR SIDE DEFLECTOR SEAL LH |
*10 |
RADIATOR SIDE SEAL RH |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

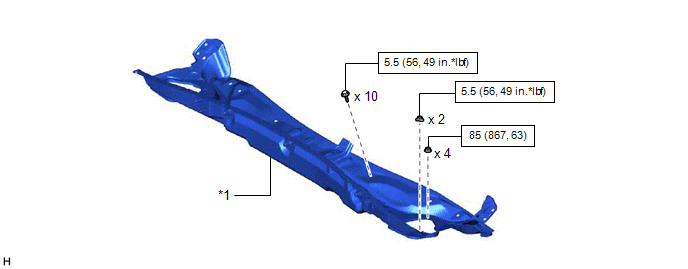

| Callout |
Description |
Callout |
Description |
| *1 |
OUTER COWL TOP PANEL SUB-ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

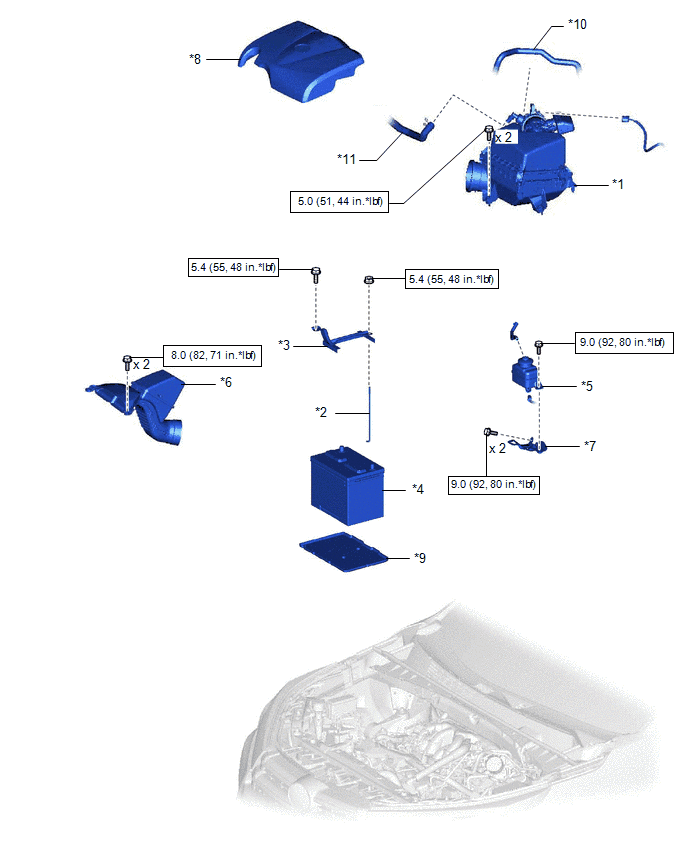

| *1 |
AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE |
*2 |
BATTERY CLAMP BOLT |
| *3 |
BATTERY CLAMP |
*4 |
BATTERY |
| *5 |
BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY |
*6 |
INLET AIR CLEANER ASSEMBLY |
| *7 |
RESERVOIR BRACKET |
*8 |
V-BANK COVER SUB-ASSEMBLY |
| *9 |
BATTERY TRAY |
*10 |
NO. 1 FUEL VAPOR FEED HOSE |
| *11 |
NO. 2 VENTILATION HOSE |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
ENGINE MOVING CONTROL ROD |
*2 |
NO. 2 ENGINE MOUNTING STAY RH |
| *3 |
ENGINE MOVING CONTROL ROD BRACKET |
*4 |
NO. 1 RELAY BLOCK COVER |
| *5 |
ENGINE WIRE |
*6 |
AIR CLEANER BRACKET |
| *7 |
EARTH WIRE |
*8 |
NO. 3 ENGINE MOUNTING STAY RH |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

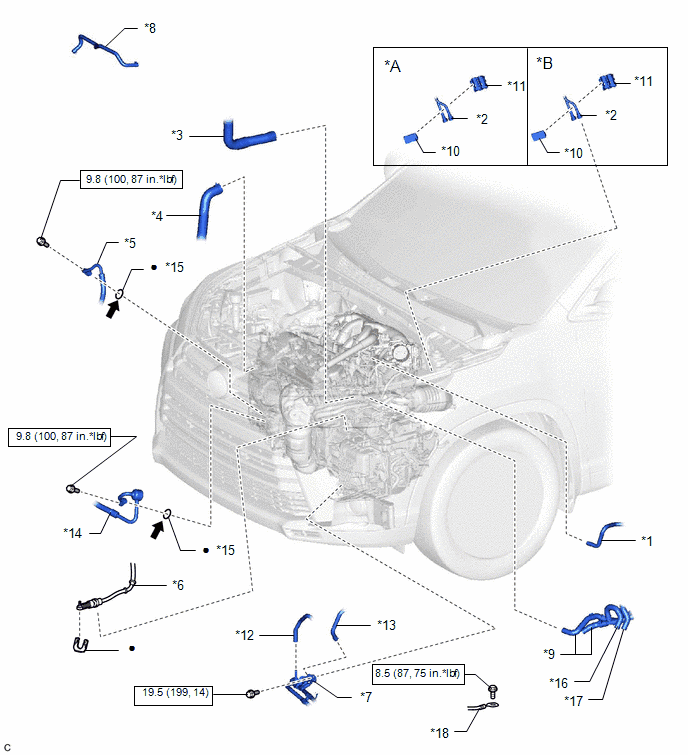

| Callout |
Description |
Callout |
Description |
| *A |
for Type A |
*B |
for Type B |
| *1 |
NO. 1 FUEL VAPOR FEED HOSE |
*2 |
FUEL TUBE SUB-ASSEMBLY |
| *3 |
NO. 1 RADIATOR HOSE |
*4 |
NO. 2 RADIATOR HOSE |
| *5 |
DISCHARGE HOSE SUB-ASSEMBLY |
*6 |
TRANSMISSION CONTROL CABLE ASSEMBLY |
| *7 |
TRANSMISSION OIL THERMOSTAT |
*8 |
UNION TO CHECK VALVE HOSE |
| *9 |
WATER HOSE SUB-ASSEMBLY |
*10 |
NO. 2 FUEL PIPE CLAMP |
| *11 |
NO. 1 FUEL PIPE CLAMP |
*12 |
NO. 1 TRANSMISSION OIL COOLER HOSE |
| *13 |
OUTLET NO. 1 OIL COOLER HOSE |
*14 |
SUCTION HOSE SUB-ASSEMBLY |
| *15 |
O-RING |
*16 |
NO. 3 WATER BY-PASS HOSE |
| *17 |
NO. 4 WATER BY-PASS HOSE |
*18 |
NO. 3 EARTH WIRE |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Compressor oil ND-OIL 8 or equivalent |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

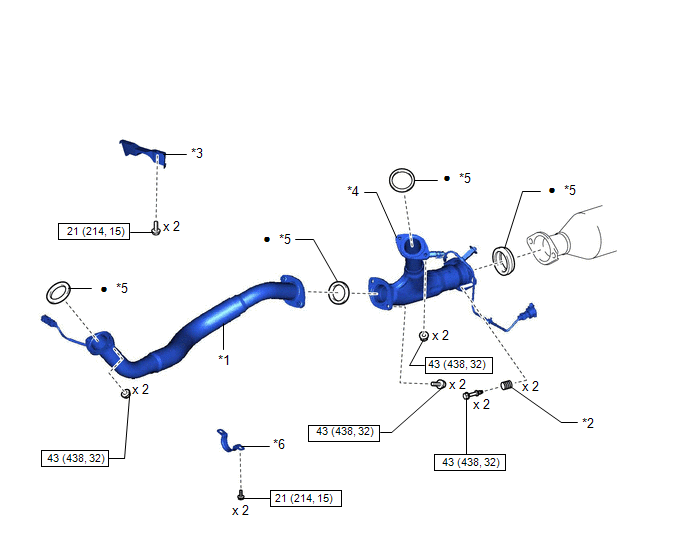

| Callout |
Description |
Callout |
Description |
| *1 |
FRONT EXHAUST PIPE ASSEMBLY |
*2 |
COMPRESSION SPRING |
| *3 |
NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Upper Side) |
*4 |
FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY |
| *5 |
GASKET |
*6 |
NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

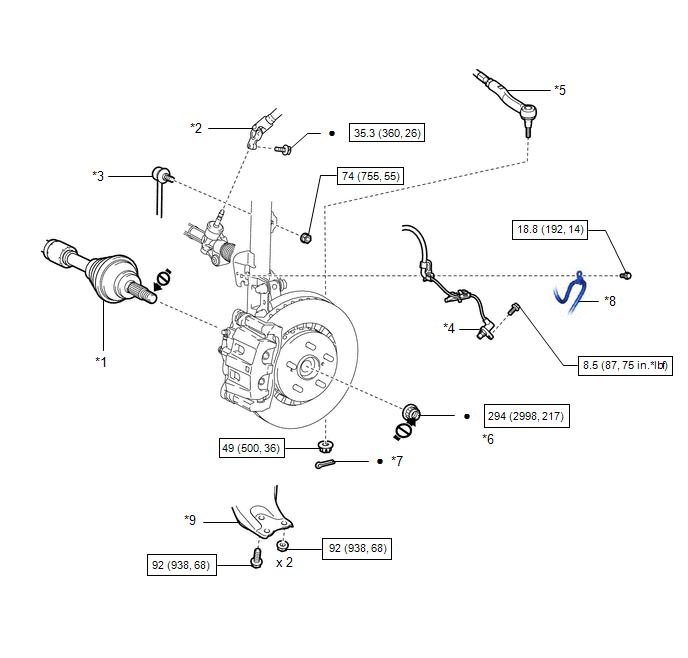

| *1 |
FRONT DRIVE SHAFT ASSEMBLY |
*2 |
STEERING INTERMEDIATE SHAFT ASSEMBLY |
| *3 |
FRONT STABILIZER LINK ASSEMBLY LH |
*4 |
FRONT SPEED SENSOR LH |
| *5 |
TIE ROD ASSEMBLY LH |
*6 |
FRONT AXLE SHAFT NUT |
| *7 |
COTTER PIN |
*8 |
FRONT FLEXIBLE HOSE |
| *9 |
FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Do not apply lubricants to the threaded parts |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
for 2WD |
*B |
for AWD |

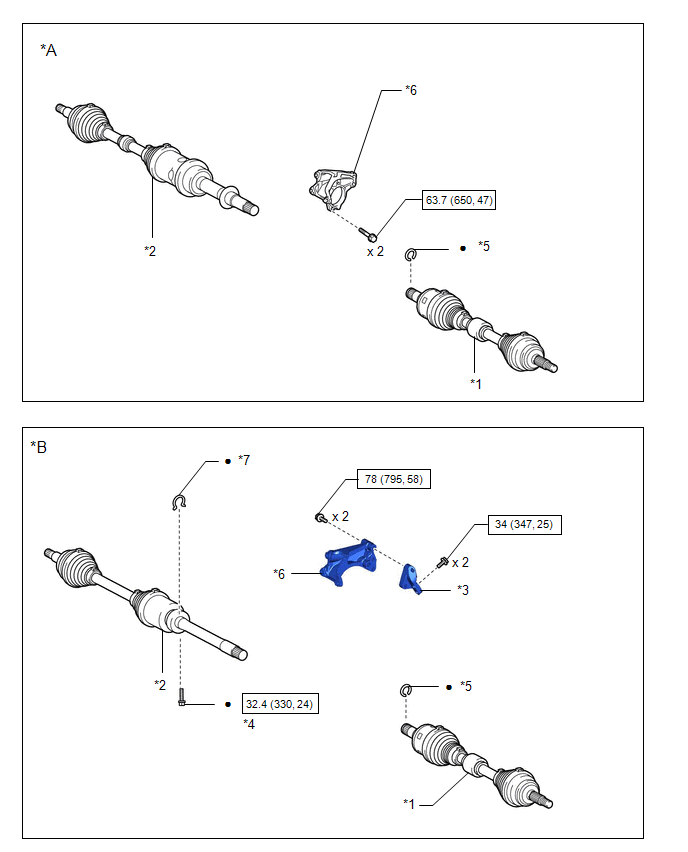

| *1 |
FRONT DRIVE SHAFT ASSEMBLY LH |
*2 |
FRONT DRIVE SHAFT ASSEMBLY RH |
| *3 |
TRANSFER STIFFENER PLATE RH |
*4 |
NO. 1 DRIVE SHAFT BEARING BRACKET SETTING BOLT |
| *5 |
FRONT DRIVE SHAFT HOLE SNAP RING (for LH Side) |
*6 |
REAR ENGINE MOUNTING BRACKET |
| *7 |
BEARING BRACKET HOLE SNAP RING |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

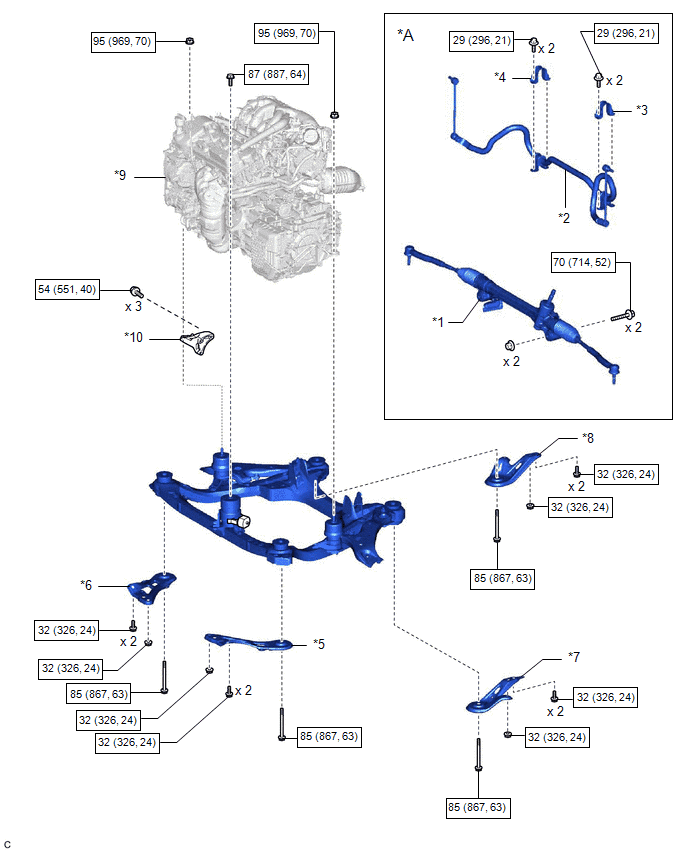

| Callout |
Description |
Callout |
Description |
| *A |
for AWD |
- |
- |
| *1 |
STEERING LINK ASSEMBLY |
*2 |
FRONT STABILIZER BAR |
| *3 |
FRONT NO. 1 STABILIZER BRACKET LH |
*4 |
FRONT NO. 1 STABILIZER BRACKET RH |
| *5 |
FRAME SIDE RAIL PLATE LH |
*6 |
FRAME SIDE RAIL PLATE RH |
| *7 |
FRONT SUSPENSION MEMBER REAR BRACE LH |
*8 |
FRONT SUSPENSION MEMBER REAR BRACE RH |
| *9 |
ENGINE ASSEMBLY WITH TRANSAXLE |
*10 |
ENGINE MOUNTING BRACKET RH |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

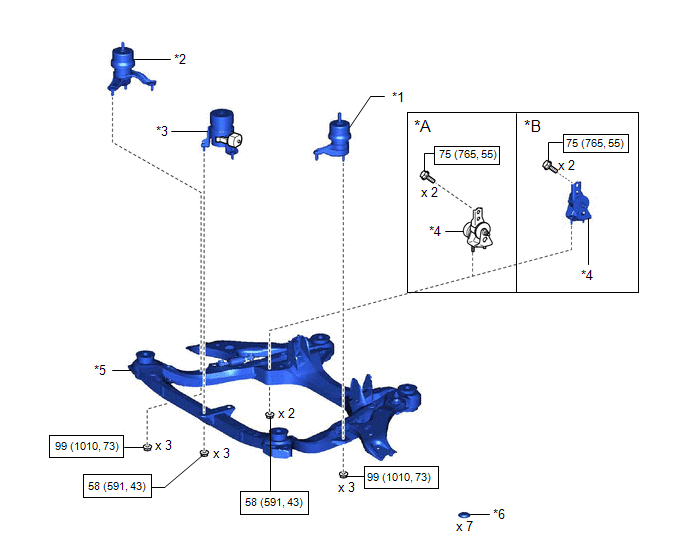

| Callout |
Description |
Callout |
Description |
| *A |
for 2WD |
*B |
for AWD |
| *1 |
ENGINE MOUNTING INSULATOR LH |
*2 |
ENGINE MOUNTING INSULATOR RH |
| *3 |
FRONT ENGINE MOUNTING INSULATOR ASSEMBLY |
*4 |
REAR ENGINE MOUNTING INSULATOR ASSEMBLY |
| *5 |
FRONT FRAME ASSEMBLY |
*6 |
HOLE PLUG |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

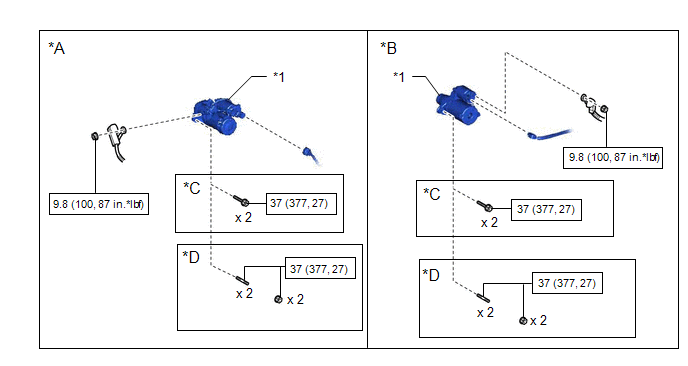

| Callout |
Description |
Callout |
Description |
| *A |
w/ Stop And Start System |
*B |
w/o Stop And Start System |
| *C |
Type A |
*D |
Type B |
| *1 |
STARTER ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

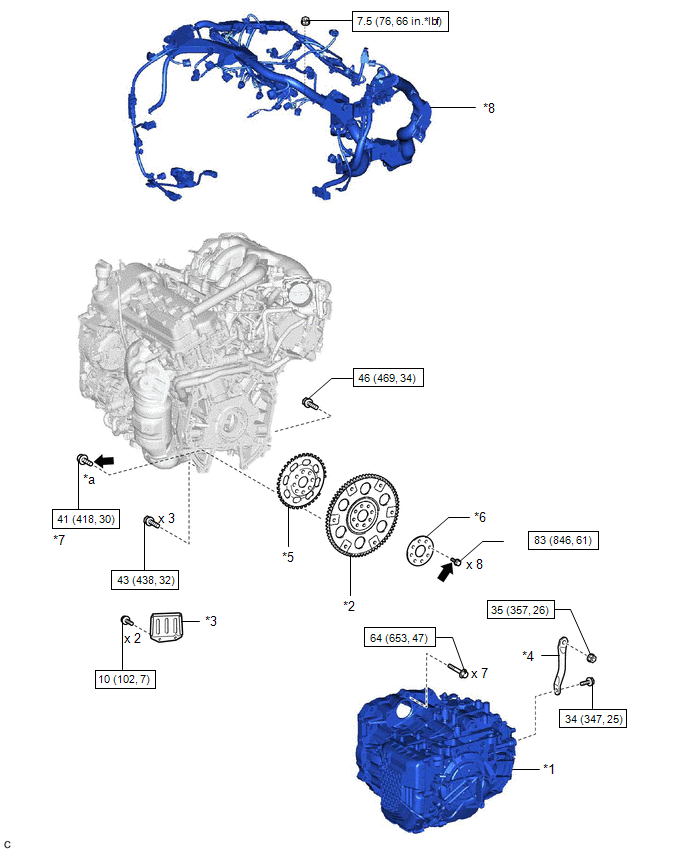

| *1 |
AUTOMATIC TRANSAXLE ASSEMBLY |
*2 |
DRIVE PLATE AND RING GEAR SUB-ASSEMBLY |
| *3 |
FLYWHEEL HOUSING UNDER COVER |
*4 |
MANIFOLD STAY |
| *5 |
NO. 1 CRANKSHAFT POSITION SENSOR PLATE |
*6 |
REAR DRIVE PLATE SPACER |
| *7 |
DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT |
*8 |
ENGINE WIRE |
| *a |
BLACK: x 1
SILVER: x 5 |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
|
Adhesive 1324 |
| * |
Precoated part |
- |
- |
