Components [11/2016 - ]: Illustration

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

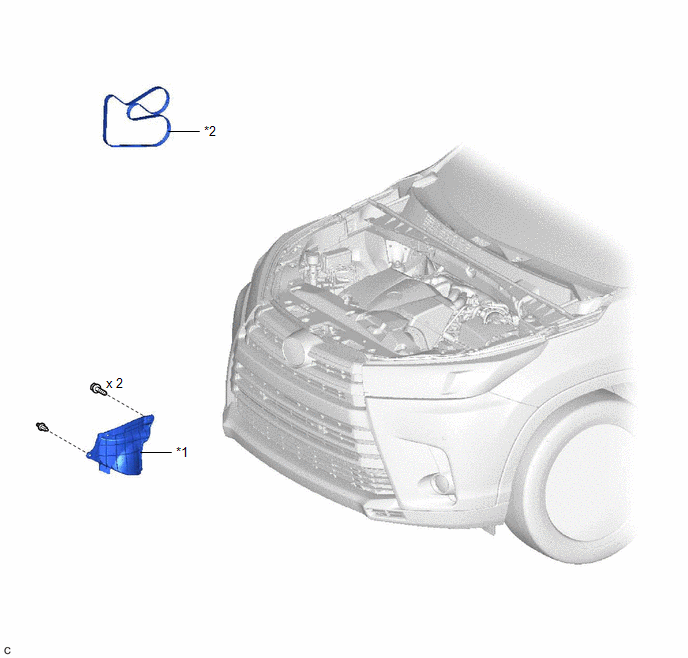

Fig 1: Drive Belt Replacement Components
GTY692024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT FENDER APRON SEAL RH *2 V-RIBBED BELT
