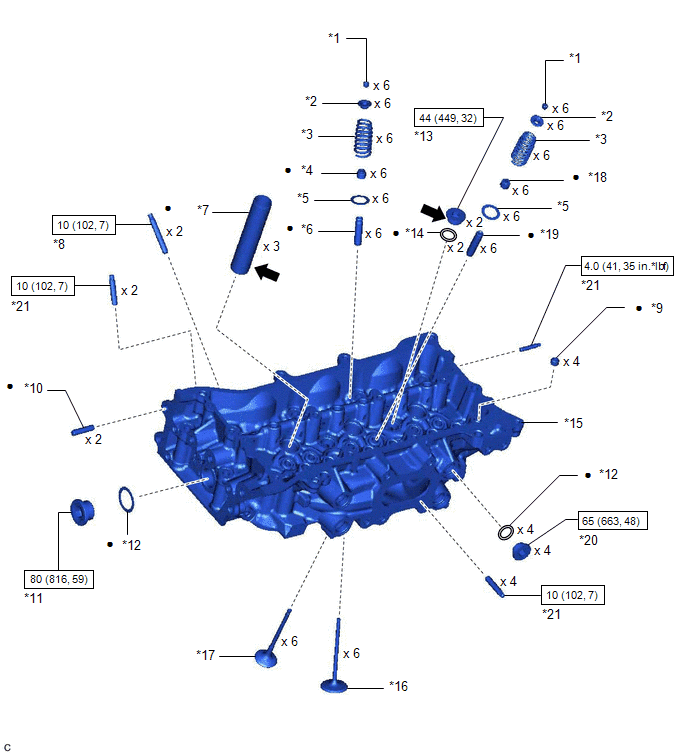

Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Description | Callout | Description |
| *1 | VALVE SPRING RETAINER LOCK | *2 | VALVE SPRING RETAINER |
| *3 | INNER COMPRESSION SPRING | *4 | INTAKE VALVE STEM OIL SEAL |
| *5 | VALVE SPRING SEAT | *6 | INTAKE VALVE GUIDE BUSH |
| *7 | SPARK PLUG TUBE | *8 | INTAKE MANIFOLD TO CYLINDER HEAD STUD BOLT |
| *9 | RING PIN | *10 | STRAIGHT PIN |
| *11 | NO. 2 STRAIGHT SCREW PLUG | *12 | CYLINDER HEAD SCREW PLUG GASKET |
| *13 | NO. 1 STRAIGHT SCREW PLUG | *14 | WATER HOLE GASKET |
| *15 | CYLINDER HEAD LH | *16 | INTAKE VALVE |
| *17 | EXHAUST VALVE | *18 | EXHAUST VALVE STEM OIL SEAL |
| *19 | EXHAUST VALVE GUIDE BUSH | *20 | NO. 3 STRAIGHT SCREW PLUG |
| *21 | STUD BOLT | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Adhesive 1324 | * | Precoated part |
