Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

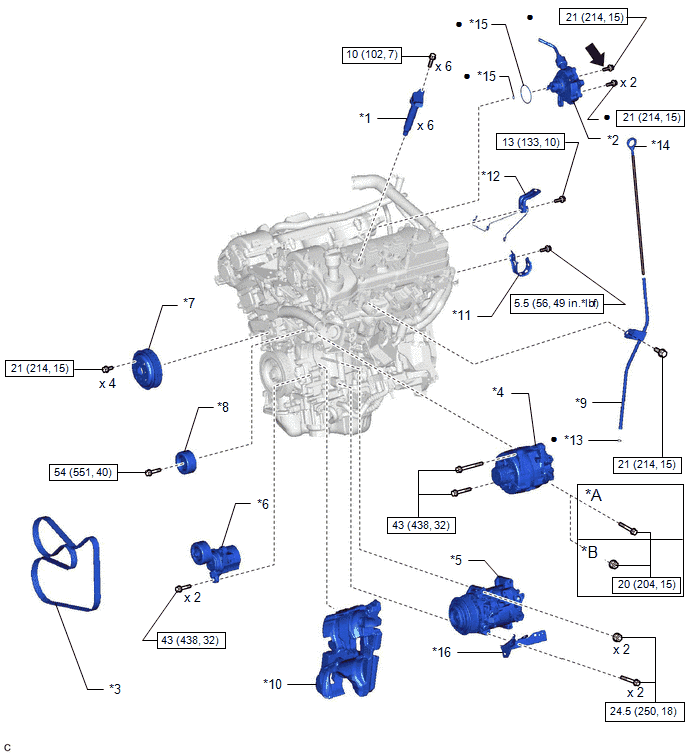

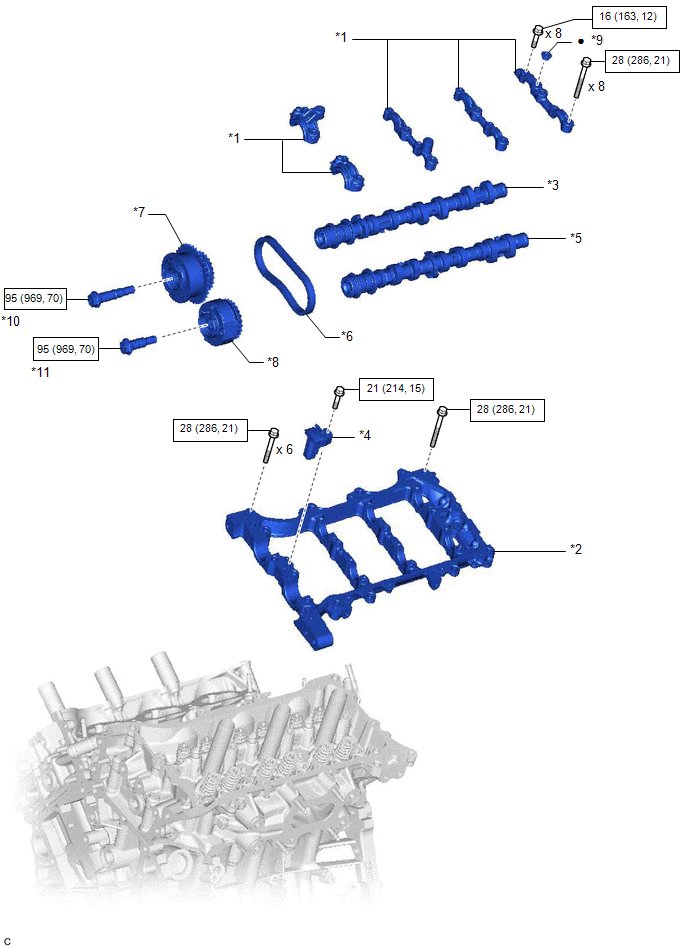

| Callout |
Description |
Callout |
Description |
| *A |
Type A |
*B |
Type B |
| *1 |
IGNITION COIL ASSEMBLY |
*2 |
VACUUM PUMP ASSEMBLY |
| *3 |
V-RIBBED BELT |
*4 |
GENERATOR ASSEMBLY |
| *5 |
COMPRESSOR ASSEMBLY WITH PULLEY |
*6 |
V-RIBBED BELT TENSIONER ASSEMBLY |
| *7 |
WATER PUMP PULLEY |
*8 |
NO. 2 IDLER PULLEY SUB-ASSEMBLY |
| *9 |
ENGINE OIL LEVEL DIPSTICK GUIDE |
*10 |
NO. 5 CYLINDER BLOCK INSULATOR |
| *11 |
RADIATOR PIPE CLAMP |
*12 |
WIRE HARNESS CLAMP BRACKET |
| *13 |
ENGINE OIL LEVEL DIPSTICK GUIDE O-RING |
*14 |
ENGINE OIL LEVEL DIPSTICK |
| *15 |
O-RING |
*16 |
BRACKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1) |
*2 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1) |
| *3 |
VVT SENSOR (for Intake Side of Bank 1) |
*4 |
VVT SENSOR (for Exhaust Side of Bank 1) |
| *5 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
*6 |
CYLINDER HEAD COVER GASKET |
| *7 |
SPARK PLUG TUBE GASKET |
*8 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *9 |
O-RING |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2) |
*2 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2) |
| *3 |
VVT SENSOR (for Intake Side of Bank 2) |
*4 |
VVT SENSOR (for Exhaust Side of Bank 2) |
| *5 |
CYLINDER HEAD COVER SUB-ASSEMBLY LH |
*6 |
NO. 2 CYLINDER HEAD COVER GASKET |
| *7 |
SPARK PLUG TUBE GASKET |
*8 |
O-RING |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

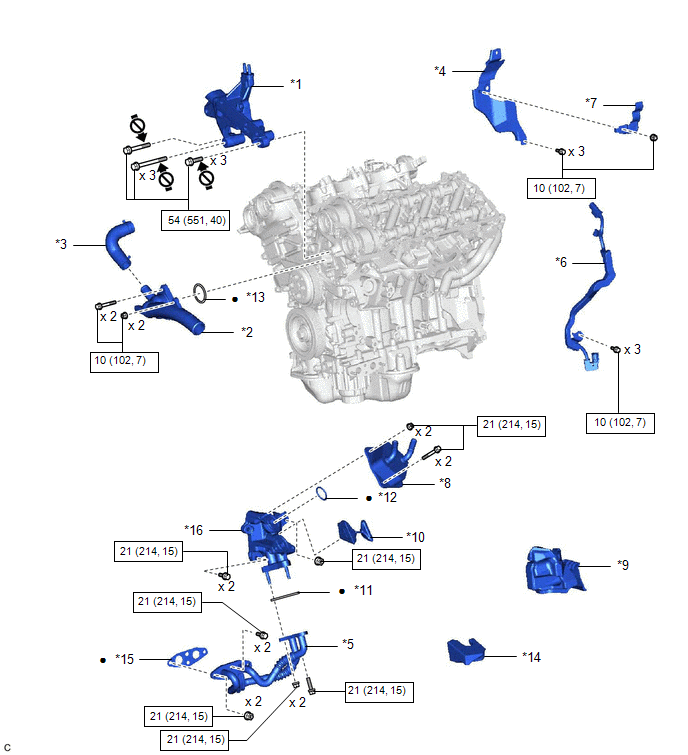

| Callout |
Description |
Callout |
Description |
| *1 |
FRONT NO. 1 ENGINE MOUNTING BRACKET LH |
*2 |
WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
| *3 |
WATER BY-PASS HOSE |
*4 |
CRANKSHAFT POSITION SENSOR PROTECTOR |
| *5 |
OIL COOLER PIPE |
*6 |
SENSOR WIRE |
| *7 |
HOSE CLAMP |
*8 |
OIL COOLER ASSEMBLY |
| *9 |
NO. 2 CYLINDER BLOCK INSULATOR |
*10 |
NO. 1 CYLINDER BLOCK INSULATOR |
| *11 |
OIL COOLER GASKET |
*12 |
O-RING |
| *13 |
GASKET |
*14 |
NO. 3 CYLINDER BLOCK INSULATOR |
| *15 |
OIL HOLE COVER GASKET |
*16 |
NO. 1 OIL COOLER BRACKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Do not apply lubricants to the threaded parts |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

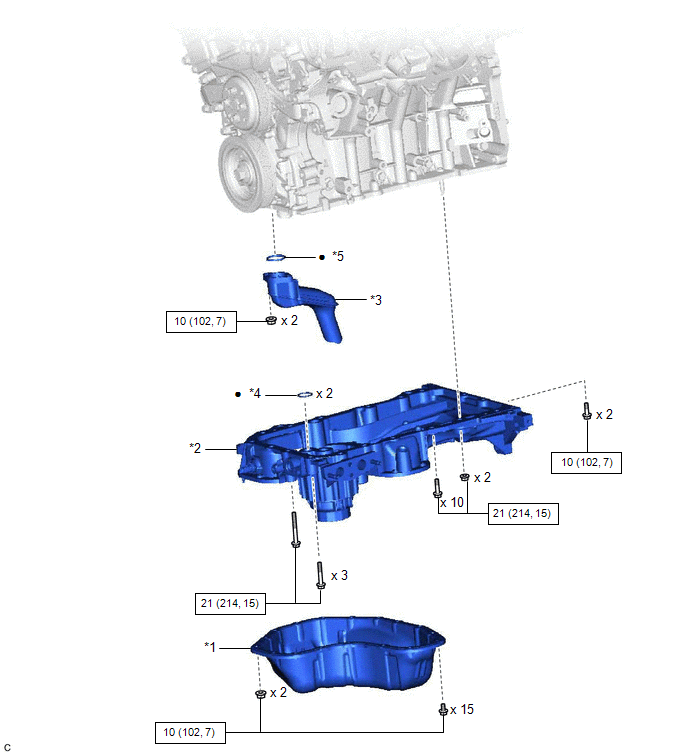

| Callout |
Description |
Callout |
Description |
| *1 |
NO. 2 OIL PAN SUB-ASSEMBLY |
*2 |
OIL PAN SUB-ASSEMBLY |
| *3 |
OIL STRAINER SUB-ASSEMBLY |
*4 |
OIL PAN GASKET |
| *5 |
OIL STRAINER GASKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

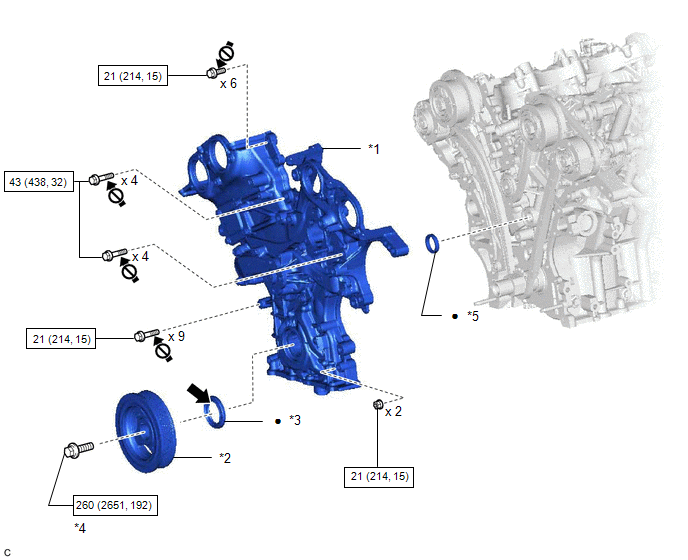

| Callout |
Description |
Callout |
Description |
| *1 |
TIMING CHAIN COVER ASSEMBLY |
*2 |
CRANKSHAFT PULLEY |
| *3 |
TIMING CHAIN CASE OIL SEAL |
*4 |
CRANKSHAFT PULLEY SET BOLT |
| *5 |
OIL PUMP GASKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
MP grease |
|
Do not apply lubricants to the threaded parts |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

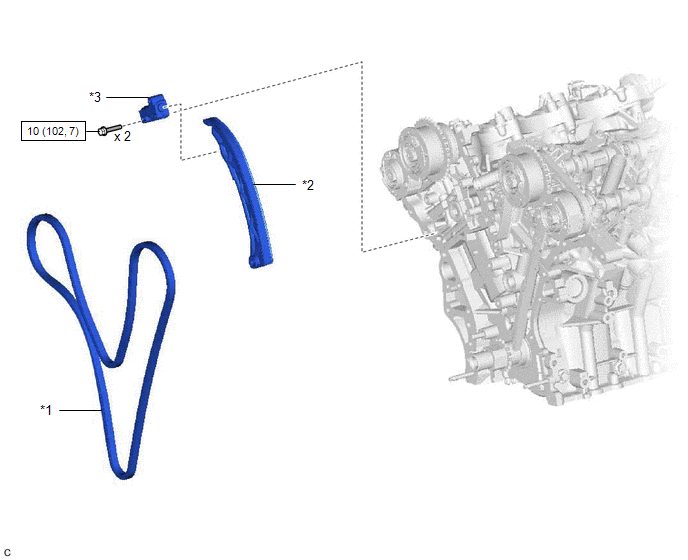

| Callout |
Description |
Callout |
Description |
| *1 |
CHAIN SUB-ASSEMBLY |
*2 |
CHAIN TENSIONER SLIPPER |
| *3 |
NO. 1 CHAIN TENSIONER ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT |
*2 |
CAMSHAFT BEARING CAP (for Bank 1) |
| *3 |
CAMSHAFT HOUSING SUB-ASSEMBLY |
*4 |
NO. 2 CAMSHAFT |
| *5 |
NO. 2 CHAIN TENSIONER ASSEMBLY |
*6 |
NO. 2 CHAIN SUB-ASSEMBLY (for Bank 1) |
| *7 |
CAMSHAFT TIMING GEAR ASSEMBLY (for Bank 1) |
*8 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY (for Bank 1) |
| *9 |
CAMSHAFT BEARING CAP OIL HOLE GASKET |
*10 |
FUEL PUMP LIFTER HOUSING |
| *11 |
CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 1) |
*12 |
CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 1) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

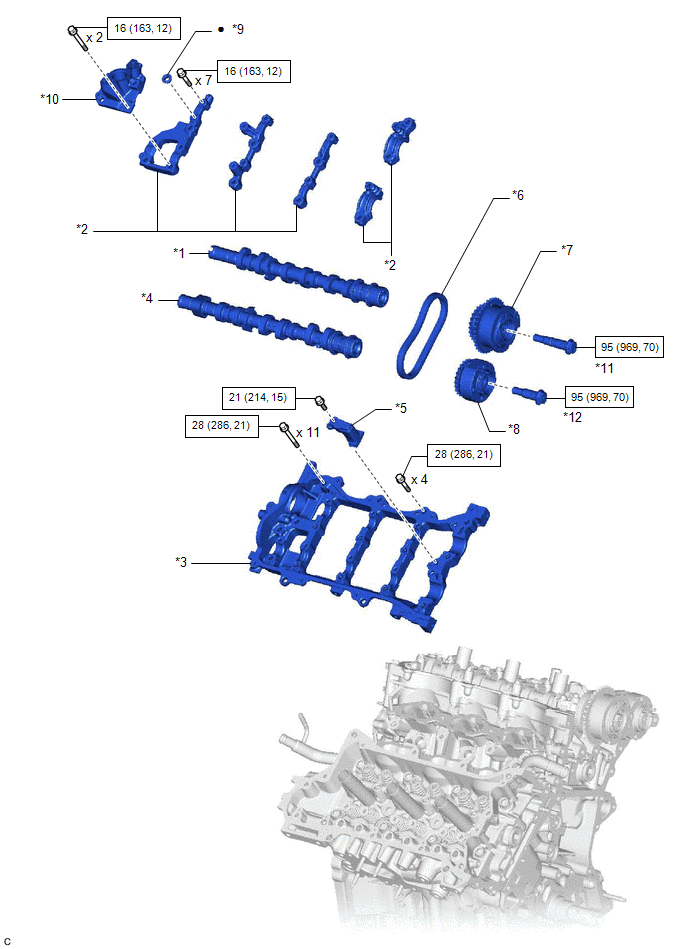

| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT BEARING CAP (for Bank 2) |
*2 |
CAMSHAFT HOUSING SUB-ASSEMBLY LH |
| *3 |
NO. 3 CAMSHAFT SUB-ASSEMBLY |
*4 |
NO. 3 CHAIN TENSIONER ASSEMBLY |
| *5 |
NO. 4 CAMSHAFT SUB-ASSEMBLY |
*6 |
NO. 2 CHAIN SUB-ASSEMBLY (for Bank 2) |
| *7 |
CAMSHAFT TIMING GEAR ASSEMBLY (for Bank 2) |
*8 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY (for Bank 2) |
| *9 |
CAMSHAFT BEARING CAP OIL HOLE GASKET |
*10 |
CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 2) |
| *11 |
CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 2) |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

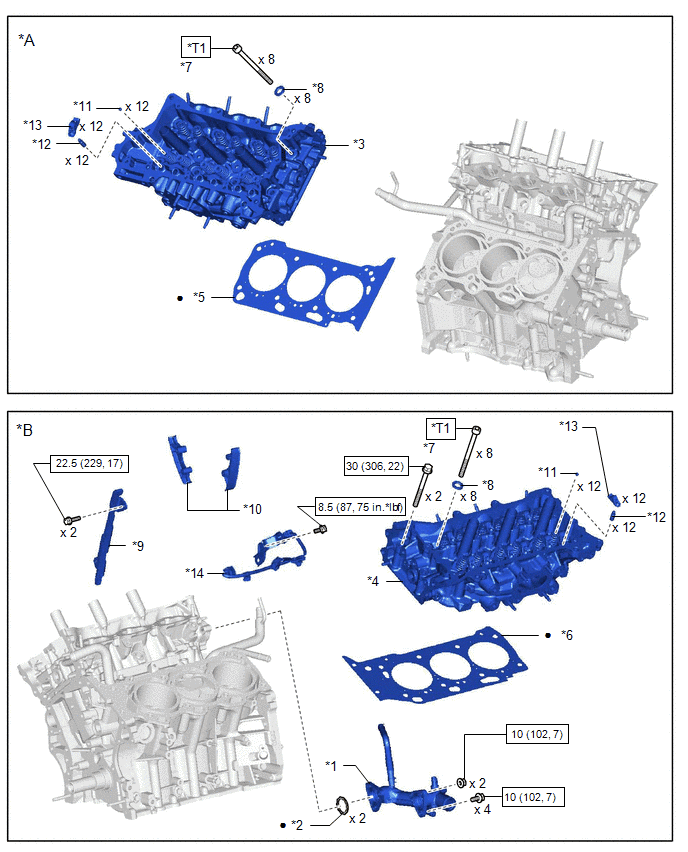

| Callout |
Description |
Callout |
Description |
| *A |
for Bank 1 |
*B |
for Bank 2 |
| *1 |
WATER OUTLET |
*2 |
NO. 2 WATER INLET HOUSING GASKET |
| *3 |
CYLINDER HEAD SUB-ASSEMBLY |
*4 |
CYLINDER HEAD LH |
| *5 |
CYLINDER HEAD GASKET |
*6 |
NO. 2 CYLINDER HEAD GASKET |
| *7 |
CYLINDER HEAD SET BOLT |
*8 |
CYLINDER HEAD SET PLATE WASHER |
| *9 |
NO. 1 CHAIN VIBRATION DAMPER |
*10 |
NO. 2 CHAIN VIBRATION DAMPER |
| *11 |
VALVE STEM CAP |
*12 |
VALVE LASH ADJUSTER ASSEMBLY |
| *13 |
NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY |
*14 |
SENSOR WIRE |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
| *T1 |
1st: 36 (367, 27)
2nd: Turn 90°
3rd: Turn 90° |
- |
- |
