Components [11/2016 - ]: Illustration

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

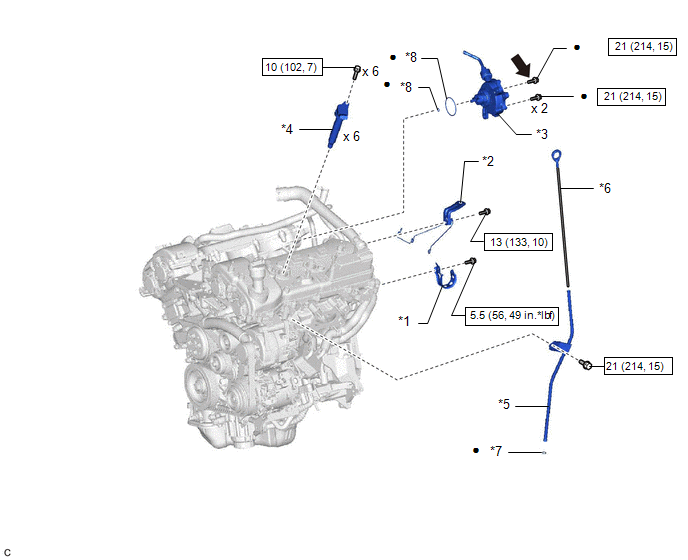

Fig 1: Camshaft Replacement Components With Torque Specifications (1 Of 5)
GTY724502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 RADIATOR PIPE CLAMP *2 WIRE HARNESS CLAMP BRACKET
*3 VACUUM PUMP ASSEMBLY *4 IGNITION COIL ASSEMBLY
*5 ENGINE OIL LEVEL DIPSTICK GUIDE *6 ENGINE OIL LEVEL DIPSTICK
*7 ENGINE OIL LEVEL DIPSTICK GUIDE O-RING *8 O-RING
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part

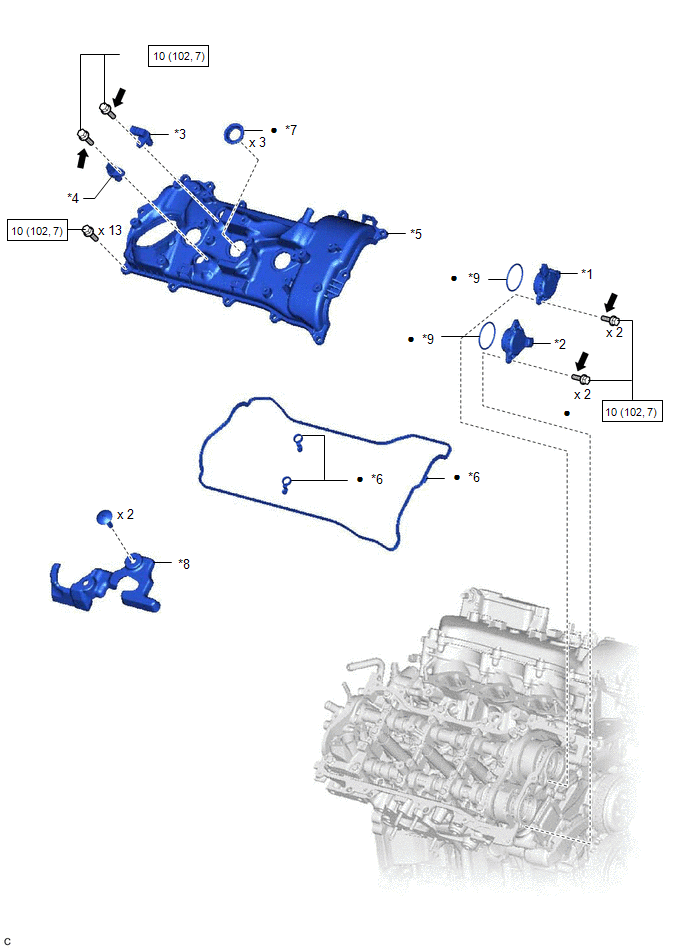

Fig 1: Camshaft Replacement Components With Torque Specifications (2 Of 5)
GTY769182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1) *2 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1)
*3 VVT SENSOR (for Intake Side of Bank 1) *4 VVT SENSOR (for Exhaust Side of Bank 1)
*5 CYLINDER HEAD COVER SUB-ASSEMBLY *6 CYLINDER HEAD COVER GASKET
*7 SPARK PLUG TUBE GASKET *8 NO. 1 ENGINE COVER SUB-ASSEMBLY
*9 O-RING - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part

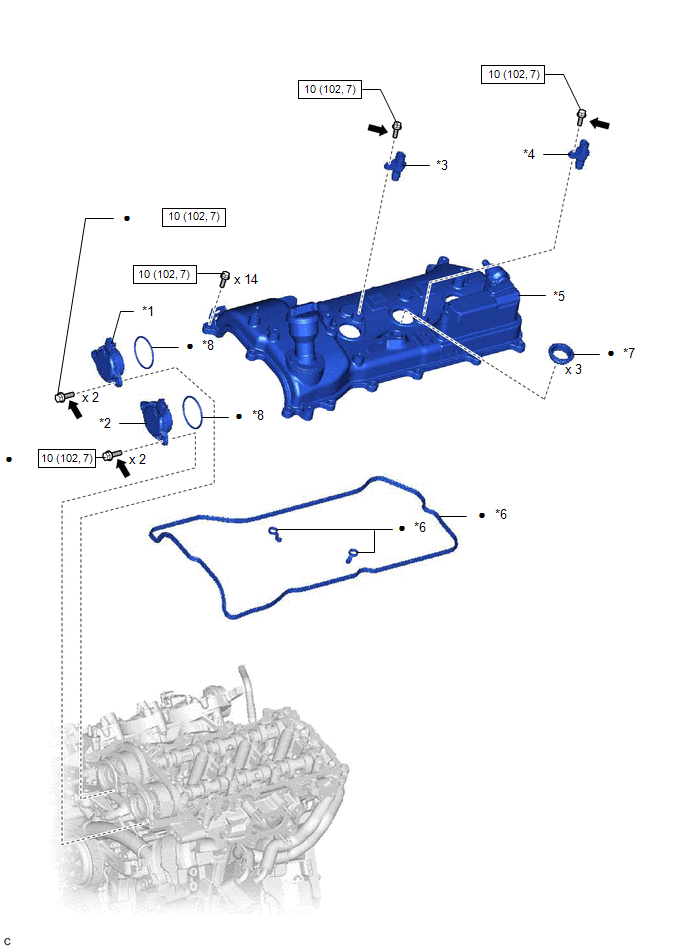

Fig 1: Camshaft Replacement Components With Torque Specifications (3 Of 5)
GTY768875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2) *2 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2)
*3 VVT SENSOR (for Intake Side of Bank 2) *4 VVT SENSOR (for Exhaust Side of Bank 2)
*5 CYLINDER HEAD COVER SUB-ASSEMBLY LH *6 NO. 2 CYLINDER HEAD COVER GASKET
*7 SPARK PLUG TUBE GASKET *8 O-RING
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part

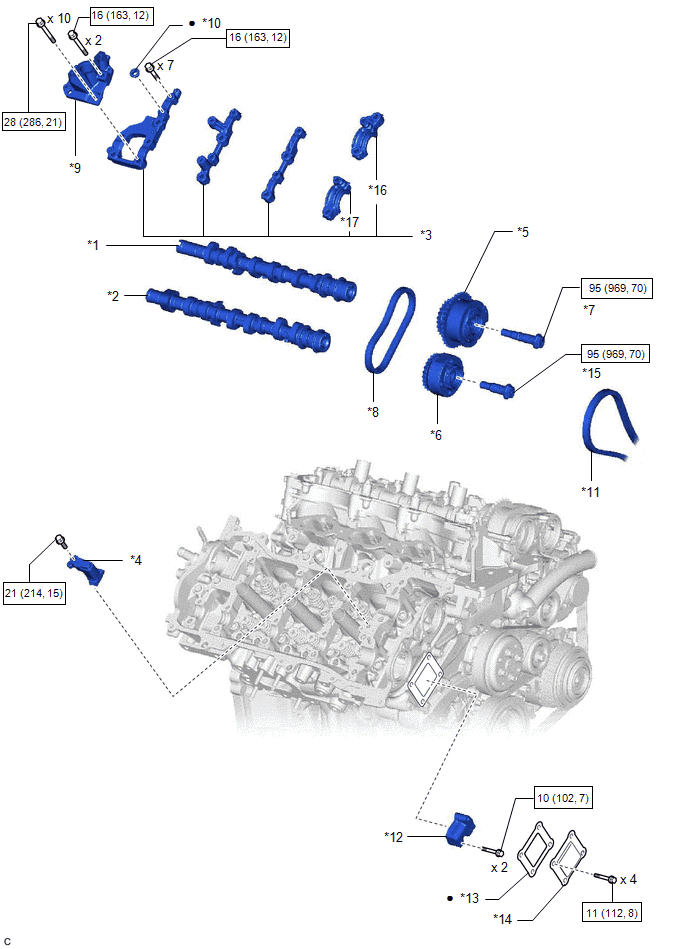

Fig 1: Camshaft Replacement Components With Torque Specifications (4 Of 5)
GTY694758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT *2 NO. 2 CAMSHAFT
*3 CAMSHAFT BEARING CAP (for Bank 1) *4 NO. 2 CHAIN TENSIONER ASSEMBLY
*5 CAMSHAFT TIMING GEAR ASSEMBLY (for Bank 1) *6 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY (for Bank 1)
*7 CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 1) *8 NO. 2 CHAIN SUB-ASSEMBLY (for Bank 1)
*9 FUEL PUMP LIFTER HOUSING *10 CAMSHAFT BEARING CAP OIL HOLE GASKET
*11 CHAIN SUB-ASSEMBLY *12 NO. 1 CHAIN TENSIONER ASSEMBLY
*13 TIMING CHAIN COVER GASKET *14 TIMING CHAIN COVER PLATE
*15 CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 1) *16 NO. 1 CAMSHAFT BEARING CAP
*17 NO. 2 CAMSHAFT BEARING CAP - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

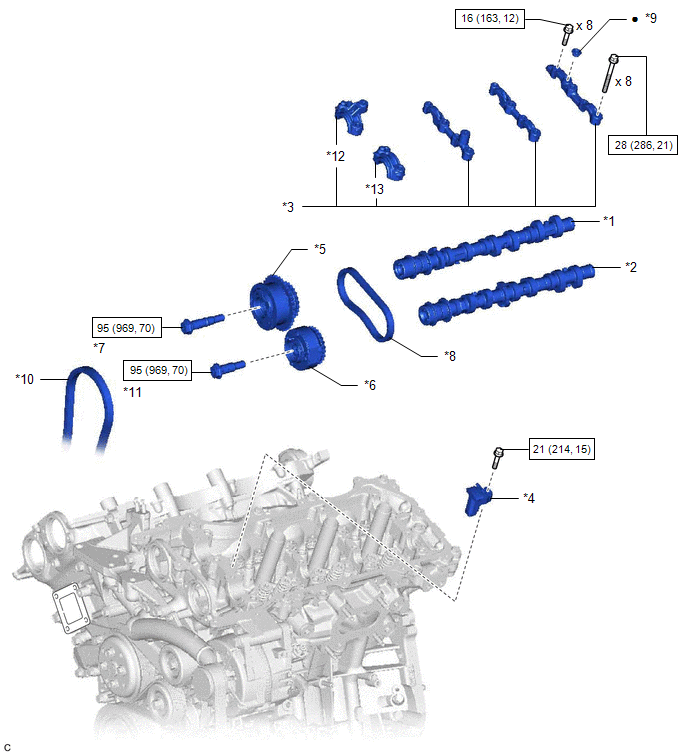

Fig 1: Camshaft Replacement Components With Torque Specifications (5 Of 5)
GTY713797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 3 CAMSHAFT SUB-ASSEMBLY *2 NO. 4 CAMSHAFT SUB-ASSEMBLY
*3 CAMSHAFT BEARING CAP (for Bank 2) *4 NO. 3 CHAIN TENSIONER ASSEMBLY
*5 CAMSHAFT TIMING GEAR ASSEMBLY (for Bank 2) *6 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY (for Bank 2)
*7 CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 2) *8 NO. 2 CHAIN SUB-ASSEMBLY (for Bank 2)
*9 CAMSHAFT BEARING CAP OIL HOLE GASKET *10 CHAIN SUB-ASSEMBLY
*11 CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 2) *12 NO. 3 CAMSHAFT BEARING CAP
*13 NO. 4 CAMSHAFT BEARING CAP - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
