Removal [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 3

  2. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 27

  3. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 28

  4. REMOVE VACUUM SENSOR ASSEMBLY

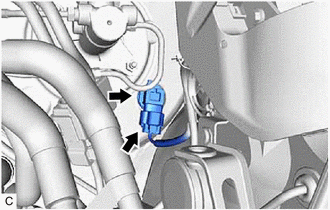

    1. Disconnect the vacuum sensor assembly connector.
      GTY710187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the vacuum sensor assembly from the brake booster assembly.
  5. REMOVE VACUUM SENSOR GROMMET

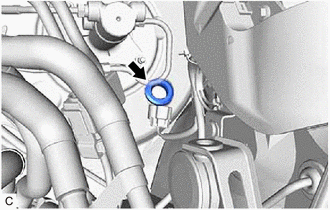

    1. Remove the vacuum sensor grommet from the brake booster assembly.
      GTY710186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
