Installation [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL VACUUM SENSOR GROMMET
    1. Install a new vacuum sensor grommet to the brake booster assembly.
  2. INSTALL VACUUM SENSOR ASSEMBLY

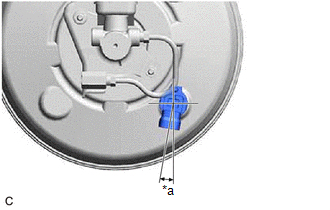

    1. Install the vacuum sensor assembly to the brake booster assembly so that the vacuum sensor assembly is angled as shown in the illustration.
      GTY692822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 10° +/- 20°
    2. Connect the vacuum sensor assembly connector.
  3. INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 62

  4. INSTALL INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 63

  5. INSTALL COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 4
