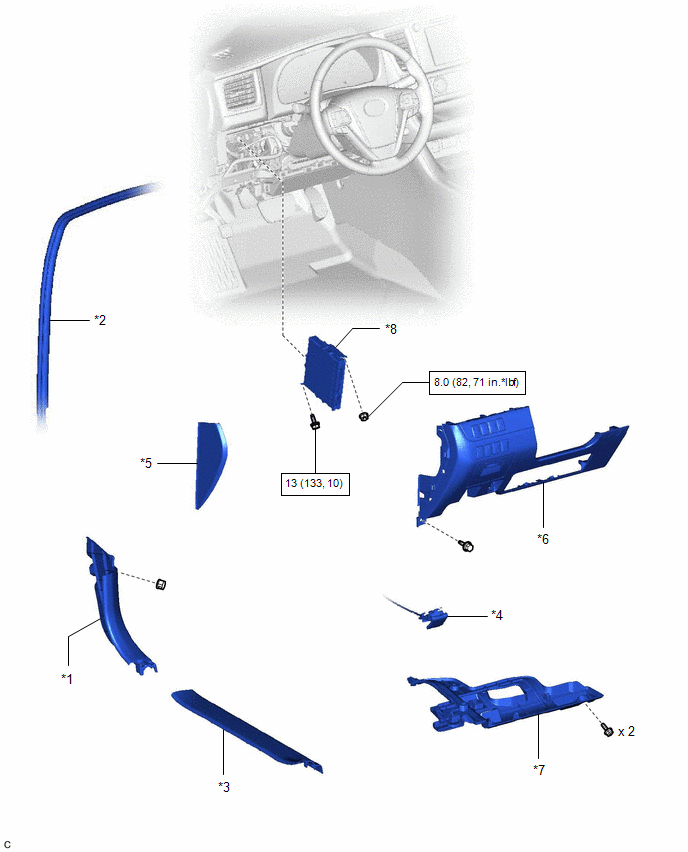

Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Description | Callout | Description |
| *1 | COWL SIDE TRIM SUB-ASSEMBLY LH | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH |
| *3 | FRONT DOOR SCUFF PLATE LH | *4 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY |
| *5 | INSTRUMENT PANEL FINISH PANEL END LH | *6 | LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY |
| *7 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *8 | ENGINE STOP AND START ECU |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
