Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
OUTER COWL TOP PANEL SUB-ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
VENTILATION HOSE |
*2 |
PURGE VALVE (PURGE VSV) |
| *3 |
NO. 1 FUEL VAPOR FEED HOSE |
*4 |
NO. 2 SURGE TANK STAY |
| *5 |
INTAKE AIR SURGE TANK ASSEMBLY |
*6 |
AIR SURGE TANK TO INTAKE MANIFOLD GASKET |
| *7 |
VACUUM HOSE SUB-ASSEMBLY |
*8 |
NO. 2 AIR TUBE |
| *9 |
NO. 1 V-BANK COVER BRACKET |
*10 |
V-BANK COVER SUB-ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Do not apply lubricants (to the threaded parts) |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

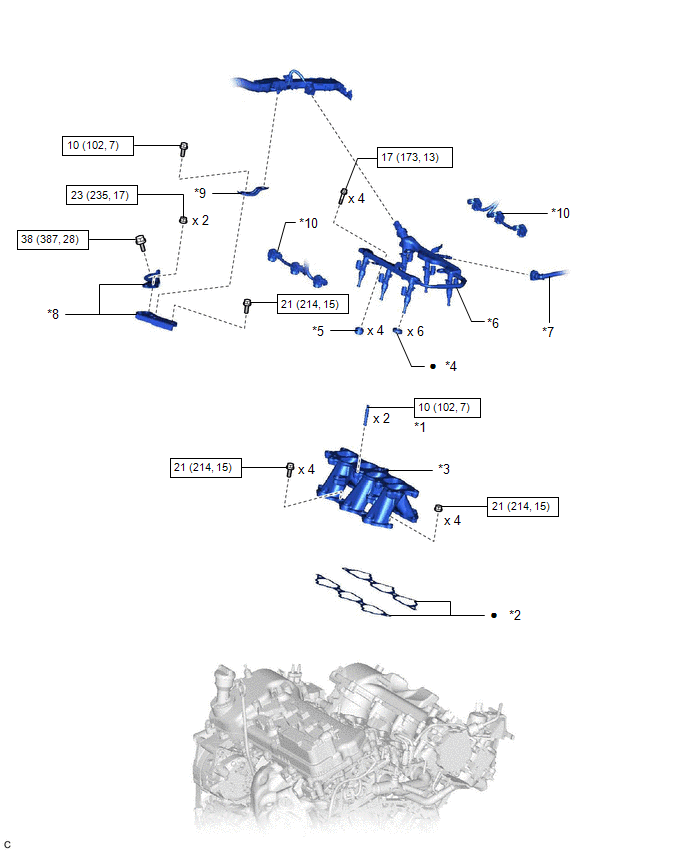

| Callout |
Description |
Callout |
Description |
| *1 |
STUD BOLT |
*2 |
NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
| *3 |
INTAKE MANIFOLD |
*4 |
INJECTOR VIBRATION INSULATOR |
| *5 |
NO. 1 DELIVERY PIPE SPACER |
*6 |
FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY |
| *7 |
FUEL TUBE SUB-ASSEMBLY |
*8 |
NO. 2 ENGINE MOUNTING STAY RH |
| *9 |
WIRE HARNESS CLAMP BRACKET |
*10 |
NO. 5 ENGINE WIRE |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
