Removal [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE OIL

    See step  1

  2. REMOVE FRONT FRAME ASSEMBLY

    Refer to REMOVAL [11/2016 - ]

  3. SUPPORT AUTOMATIC TRANSAXLE ASSEMBLY
    1. Set an engine lifter.
      WARNING:

      To prevent the engine assembly with automatic transaxle assembly from falling while servicing, do not remove SST.

      NOTE:

      Make sure that there is clearance between the automatic transaxle assembly and engine lifter.

      GTY719188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE BELT

    Refer to PROCEDURE - Step 78

  5. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 32

  6. REMOVE OIL STRAINER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 33

  7. REMOVE ENGINE OIL LEVEL SENSOR
    1. Remove the clip from the engine oil level sensor.
      GTY666622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

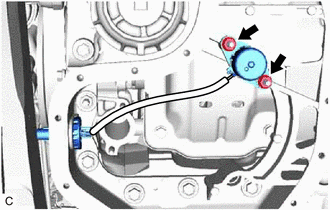

    2. Remove the 2 nuts and engine oil level sensor from the oil pan sub-assembly.
      GTY684444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
