Removal [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 1

  2. DRAIN ENGINE OIL

    See step  1

  3. REMOVE EXHAUST MANIFOLD ASSEMBLY LH

    Refer to REMOVAL [11/2016 - ]

  4. REMOVE OIL COOLER ASSEMBLY

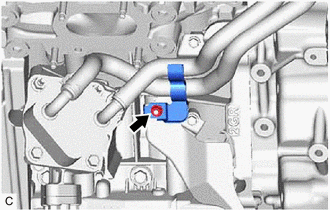

    1. Remove the nut and hose clamp from the cylinder block sub-assembly.
      GTY666513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the 2 clips and disconnect the No. 4 water by-pass hose and No. 5 water by-pass hose from the oil cooler assembly.
      GTY681286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 4 Water By-pass Hose
      *2 No. 5 Water By-pass Hose
    3. Remove the 2 bolts, 2 nuts and oil cooler assembly from the No. 1 oil cooler bracket.
      GTY666512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 O-rings and No. 1 cylinder block insulator from the No. 1 oil cooler bracket.
      GTY728721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-Ring
      *2 No. 1 Cylinder Block Insulator
