Parts Location [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

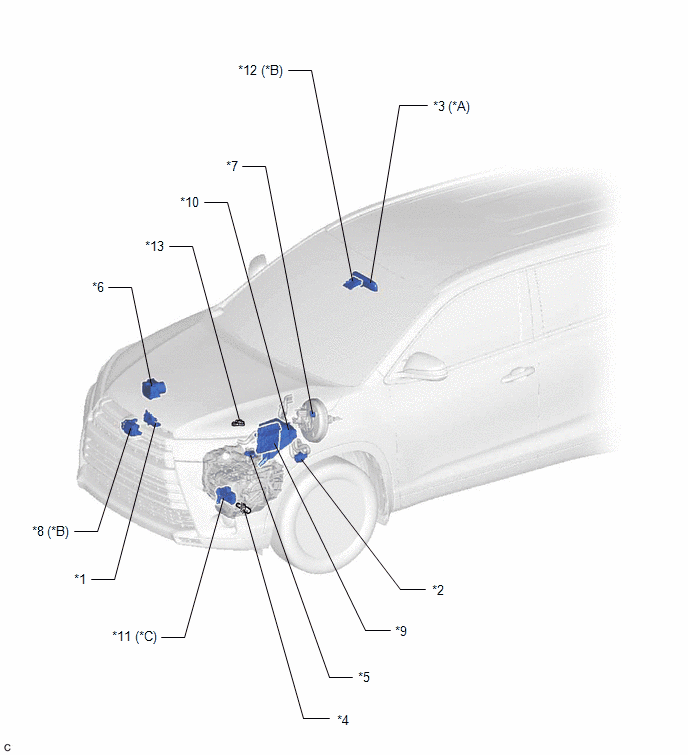

| *A |
w/ EC Mirror |
*B |
w/ Toyota Safety Sense P |
| *C |
w/ Navigation System for 12 Speakers |
- |
- |
| *1 |
ENGINE HOOD COURTESY SWITCH (HOOD LOCK ASSEMBLY) |
*2 |
HEATER WATER PUMP ASSEMBLY |
| *3 |
INNER REAR VIEW MIRROR ASSEMBLY |
*4 |
OIL PUMP WITH SOLENOID ASSEMBLY |
| *5 |
PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
*6 |
SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) |
| *7 |
VACUUM SENSOR ASSEMBLY |
*8 |
MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *9 |
ECM |
*10 |
NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- ST RELAY
- ST NO. 2 RELAY
- A/C W/PMP RELAY
- SEMICONDUCTOR POWER INTEGRATION ECU
|
| *11 |
EXTERNAL BACKUP BOOST CONVERTER (ECO RUN VEHICLE CONVERTER ASSEMBLY) |
*12 |
FORMARD REGOGNITION CAMERA |
| *13 |
BATTERY STATE SENSOR ASSEMBLY |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

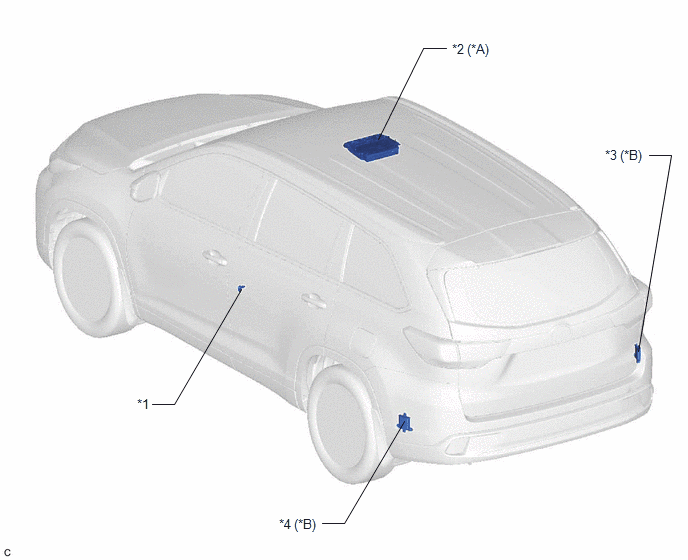

| *A |
w/ Rear Seat Entertainment System |
*B |
w/ Blind Spot Monitor System |
| *1 |
FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
*2 |
TELEVISION DISPLAY ASSEMBLY |
| *3 |
BLIND SPOT MONITOR SENSOR RH |
*4 |
BLIND SPOT MONITOR SENSOR LH |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

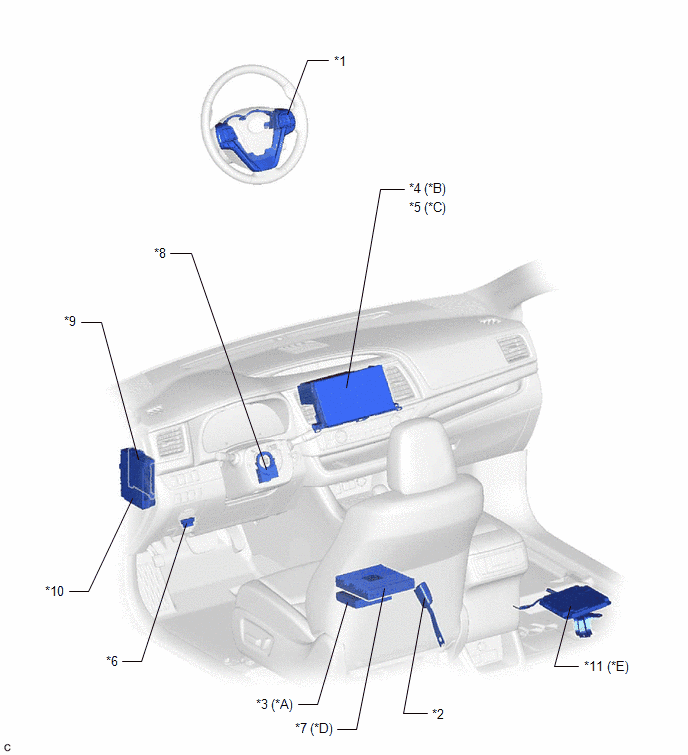

| *A |
w/ Manual (SOS) Switch |
*B |
w/ Radio and Display Receiver Assembly |
| *C |
w/ Navigation Receiver Assembly |
*D |
w/ Navigation System for 12 Speakers |
| *E |
w/ Panoramic View Monitor System |
- |
- |
| *1 |
STEERING PAD SWITCH ASSEMBLY |
*2 |
FRONT SEAT INNER BELT ASSEMBLY LH |
| *3 |
DCM (TELEMATICS TRANSCEIVER) |
*4 |
RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *5 |
NAVIGATION RECEIVER ASSEMBLY |
*6 |
DLC3 |
| *7 |
STEREO COMPONENT AMPLIFIER ASSEMBLY |
*8 |
STEERING SENSOR |
| *9 |
MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
*10 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *11 |
PARKING ASSIST ECU |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

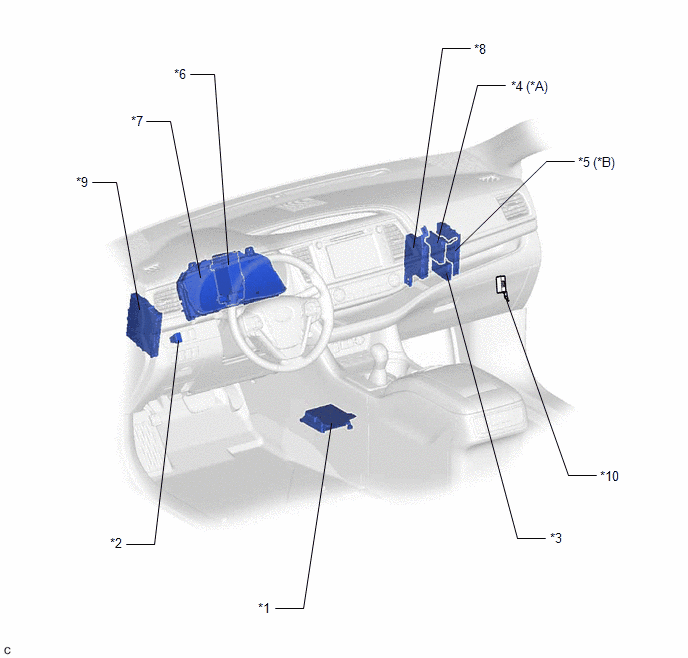

| *A |
w/ Toyota Safety Sense P |
*B |
w/ Smart Key System |
| *1 |
AIRBAG SENSOR ASSEMBLY |
*2 |
STOP AND START SYSTEM CANCEL SWITCH (ECO RUN CANCEL SWITCH ASSEMBLY) |
| *3 |
CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
*4 |
DRIVING SUPPORT ECU ASSEMBLY |
| *5 |
CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
*6 |
POWER STEERING ECU ASSEMBLY |
| *7 |
COMBINATION METER ASSEMBLY |
*8 |
AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *9 |
ENGINE STOP AND START ECU |
*10 |
ENGINE STOP AND START SOLENOID FILTER |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

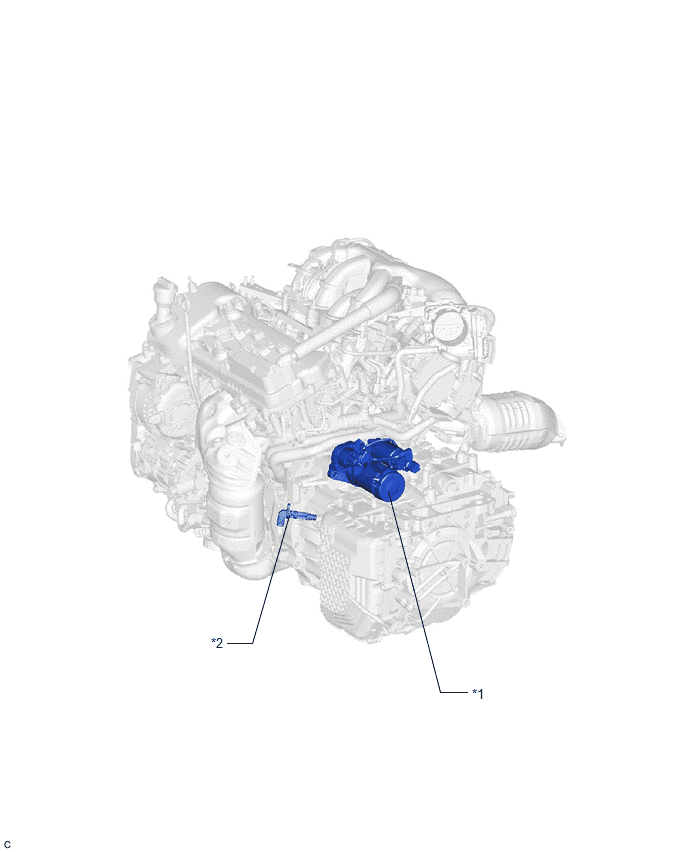

| *1 |
STARTER ASSEMBLY |
*2 |
CRANKSHAFT POSITION SENSOR |
