Terminals Of Ecu [11/2016 - ]

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

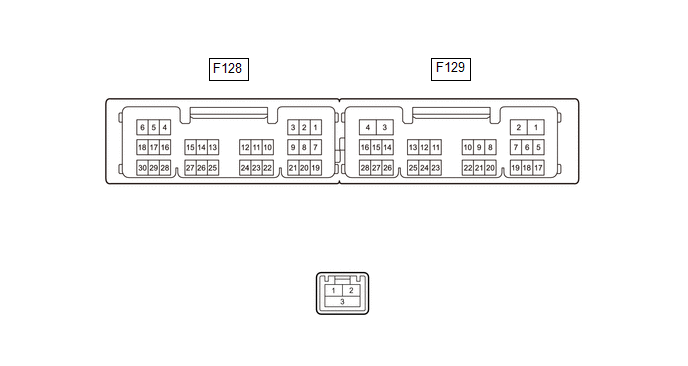

  1. PARKING ASSIST ECU
    GTY707476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the F129 parking assist ECU connector.
    2. Measure the voltage and resistance according to the value(s) in the table below.
      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F129-2 (+B) - F129-3 (GND1) BE - W-B Power source signal Always 10.5 to 16 V
      F129-3 (GND1) - Body ground W-B - Body ground Ground Always Below 1 Ω
      F129-6 (IG) - F129-3 (GND1) R - W-B IG power source signal Ignition switch ON 10.5 to 16 V
      Ignition switch off Below 1 V
      F129-1 (ACC) - F129-3 (GND1) GR - W-B ACC power source signal Ignition switch ACC 10.5 to 16 V
      Ignition switch off Below 1 V
    3. Reconnect the F129 parking assist ECU connector.
    4. Measure the voltage, resistance and waveform according to the value(s) in the table below.
      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F129-9 (TX-) W AVC-LAN communication signal - -
      F129-10 (TX+) SB AVC-LAN communication signal - -
      F128-1 (CV+) - F128-9 (CGND) R - Shielded Television camera assembly display signal input Ignition switch ON, panoramic view monitor switch on, camera lens not covered, displaying image Pulse generation (See waveform 1)
      Ignition switch ON, panoramic view monitor switch on, camera lens covered, blacking out screen Pulse generation (See waveform 2)
      F128-3 (CB+) - F128-9 (CGND) B - Shielded Power source to television camera assembly Ignition switch ACC 5.5 to 7.05 V
      F129-20 (BLSW) - F129-3 (GND1) V - W-B Panoramic view monitor switch switch signal Ignition switch ON, panoramic view monitor switch off 5.5 to 6.5 V
      Ignition switch ON, panoramic view monitor switch on Below 1 V
      F128-9 (CGND) - Body ground Shielded - Body ground Television camera assembly ground (shield) Always Below 1 Ω
      F128-2 (CV-) - F129-3 (GND1) W - W-B Television camera assembly ground Always Below 1 V
      F128-11 (LCV-) - F129-3 (GND1) W - W-B Side television camera assembly LH ground Always Below 1 Ω
      F128-10 (LCV+) - F128-24 (LGND) B - Shielded Side television camera assembly LH display signal input Ignition switch ON, panoramic view monitor switch on, camera lens not covered, displaying image Pulse generation (See waveform 1)
      Ignition switch ON, panoramic view monitor switch on, camera lens covered, blacking out screen Pulse generation (See waveform 2)
      F128-24 (LGND) - Body ground Shielded - Body ground Side television camera assembly LH ground (shield) Always Below 1 Ω
      F128-12 (LCB+) - F128-24 (LGND) R - Shielded Power source to side television camera assembly LH Ignition switch ACC 5.5 to 7.05 V
      F128-14 (BCV-) - F129-3 (GND1) W - W-B Front television camera assembly ground Always Below 1 Ω
      F128-13 (BCV+) - F128-27 (BGND) B - Shielded Front television camera assembly display signal input Waveform 1: Ignition switch ON, panoramic view monitor switch on, camera lens not covered, displaying image Pulse generation (See waveform 1)
      Waveform 2: Ignition switch ON, panoramic view monitor switch on, camera lens covered, blacking out screen Pulse generation (See waveform 2)
      F128-27 (BGND) - Body ground Shielded - Body ground Front television camera assembly ground (shield) Always Below 1 Ω
      F128-15 (BCB+) - F128-27 (BGND) R - Shielded Power source to front television camera assembly Ignition switch ACC 5.5 to 7.05 V
      F128-5 (RCV-) - F129-3 (GND1) R - W-B Side television camera assembly RH ground Always Below 1 Ω
      F128-4 (RCV+) - F128-18 (RGND) W - Shielded Side television camera assembly RH display signal input Waveform 1: Ignition switch ON, panoramic view monitor switch on, camera lens not covered, displaying image Pulse generation (See waveform 1)
      Waveform 2: Ignition switch ON, panoramic view monitor switch on, camera lens covered, blacking out screen Pulse generation (See waveform 2)
      F128-18 (RGND) - Body ground Shielded - Body ground Side television camera assembly RH ground (shield) Always Below 1 Ω
      F128-6 (RCB+) - F128-18 (RGND) B - Shielded Power source to side television camera assembly RH Ignition switch ACC 5.5 to 7.05 V
      F128-7 (RSW+) - F129-3 (GND1) B - W-B - Ignition switch ON, shift lever in P 0 to 2 V
      Ignition switch ON, shift lever in other than P 5.5 to 7.05 V
      F129-15 (REV) - F129-3 (GND1) R - W-B Reverse signal Ignition switch ON, shift lever in other than R Below 1 V
      Ignition switch ON, shift lever in R 11 to 14 V

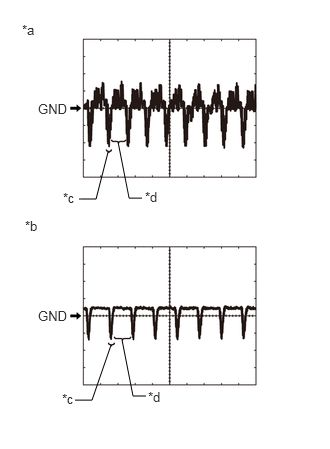

    5. Waveform
      GTY453123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Waveform 1 (camera lens is not covered, displaying an image)
      *b Waveform 2 (camera lens is covered, blacking out the screen)
      *c Synchronization Signal
      *d Video Waveform

      Reference (Oscilloscope waveform):

      HINT:

      A waterproof connector is used for the television camera assembly, front television camera assembly, side television camera assembly LH or side television camera assembly RH. Therefore, inspect the waveform at the radio receiver assembly with the connector connected.

      1. Waveform 1 (camera lens is not covered, displaying an image)
        Item Content
        Measurement terminal
        • F128-1 (CV+) - F128-9 (CGND)
        • F128-10 (LCV+) - F128-24 (LGND)
        • F128-13 (BCV+) - F128-27 (BGND)
        • F128-4 (RCV+) - F128-18 (RGND)
        Measurement setting 200 mV/DIV., 50 μs./DIV.
        Condition Ignition switch ON, panoramic view monitor switch on

        HINT:

        • The video waveform changes according to the image sent by the television camera assembly, front television camera assembly, side television camera assembly LH or side television camera assembly RH.
        • The video waveform is constantly output when the ignition switch is ACC.
      2. Waveform 2 (camera lens is covered, blacking out the screen)
        Item Content
        Measurement terminal
        • F128-1 (CV+) - F128-9 (CGND)
        • F128-10 (LCV+) - F128-24 (LGND)
        • F128-13 (BCV+) - F128-27 (BGND)
        • F128-4 (RCV+) - F128-18 (RGND)
        Measurement setting 200 mV/DIV., 50 μs./DIV.
        Condition Ignition switch ON, panoramic view monitor switch on

        HINT:

        • The video waveform changes according to the image sent by the television camera assembly, front television camera assembly, side television camera assembly LH or side television camera assembly RH.
        • The video waveform is constantly output when the ignition switch is ACC.
  2. NAVIGATION RECEIVER ASSEMBLY

    Refer to TERMINALS OF ECU [11/2016 - ]
