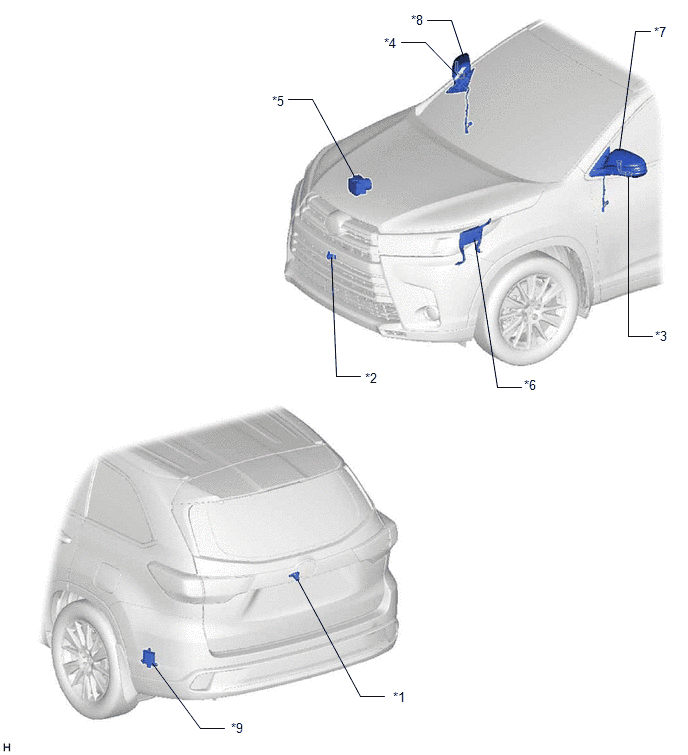

Parts Location [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
| *1 | TELEVISION CAMERA ASSEMBLY | *2 | FRONT TELEVISION CAMERA ASSEMBLY |
| *3 | SIDE TELEVISION CAMERA ASSEMBLY LH | *4 | SIDE TELEVISION CAMERA ASSEMBLY RH |
| *5 | BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) | *6 | ECM |
| *7 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *8 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *9 | BLIND SPOT MONITOR SENSOR LH | - | - |
