Installation [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL TRANSMISSION WIRE (w/o Stop And Start System)
    1. Coat the O-ring of the transmission wire with Toyota Genuine ATF WS.
      GTY699982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the transmission wire to the automatic transaxle case sub-assembly with the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    3. Connect the transmission revolution sensor (NT) connector and transmission revolution sensor (NC) connector.
    4. Install the temperature sensor to the transmission valve body assembly with the bolt and temperature sensor clamp.

      Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)

      NOTE:

      To prevent it from being pinched between the transmission valve body assembly and the transmission case side cover, pass the transmission revolution sensor (NC) wire under the transmission wire (temperature sensor wire) as shown in the illustration.

      GTY691969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Transmission Wire (Temperature Sensor Wire)
      *b Transmission Revolution Sensor (NC) Wire
    5. Connect the 9 solenoid valve connectors.
      GTY716321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      GTY732262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Do not let transmission wire protrude into this area.
      • To prevent it from being pinched between the transmission valve body assembly and the transmission case side cover, do not let the transmission wire ride up over the area shown in the illustration.
      • To prevent it from being pinched between the transmission case side cover and the automatic transaxle case sub-assembly, do not let the transmission wire protrude toward the transmission case side cover installation surface.
    6. Engage the clamp, and connect the transmission wire to the solenoid lock plate.
      GTY716312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL TRANSMISSION WIRE (w/ Stop And Start System)
    1. Coat the O-ring of the transmission wire with Toyota Genuine ATF WS.
      GTY699982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the transmission wire to the automatic transaxle case sub-assembly with the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    3. Connect the transmission revolution sensor (NT) connector and transmission revolution sensor (NC) connector.
    4. Install the temperature sensor to the transmission valve body assembly with the bolt and temperature sensor clamp.

      Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)

      NOTE:

      To prevent it from being pinched between the transmission valve body assembly and the transmission case side cover, pass the transmission revolution sensor (NC) wire under the transmission wire (temperature sensor wire) as shown in the illustration.

      GTY691969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Transmission Wire (Temperature Sensor Wire)
      *b Transmission Revolution Sensor (NC) Wire
    5. Engage the clamp to connect the transmission wire (oil pump with solenoid assembly) to the solenoid lock plate.
    6. Connect the transmission wire connector.
    7. Engage the wire harness clamp to connect the transmission wire (oil pump with solenoid assembly).
    8. Connect the 9 solenoid valve connectors as shown in the illustration.
      GTY717951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      GTY697301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Do not let transmission wire protrude into this area.
      • To prevent it from being pinched between the transmission valve body assembly and the transmission case side cover, do not let the transmission wire ride up over the area shown in the illustration.
      • To prevent it from being pinched between the transmission case side cover and the automatic transaxle case sub-assembly, do not let the transmission wire protrude toward the transmission case side cover installation surface.
    9. Engage the clamp, and connect the transmission wire to the solenoid lock plate.
      GTY716285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL TRANSMISSION CASE SIDE COVER (for TMC Made)

    HINT:

    TMC (TOYOTA) Made and AW (AISIN AW) Made components can be identified by the differing locations where the serial number is stamped.

    GTY718769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a TMC Made
    *b AW Made
    1. GTY686670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Stop And Start System
      *B w/o Stop And Start System
      Area to be cleaned

      Clean the transmission case side cover installation surface of the automatic transaxle case sub-assembly.

      NOTE:

      Completely remove any oil or grease from the contact surfaces of the automatic transaxle case sub-assembly.

    2. Clean the 3 bolt holes shown in the illustration.
      GTY724007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Stop And Start System
      *B w/o Stop And Start System
    3. Apply adhesive to 2 or 3 threads on the end of the bolt (A) and 2 bolts (D).

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

      NOTE:

      Make sure to install the bolts immediately after applying adhesive to prevent foreign matter from attaching to them.

      GTY708679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Adhesive

      HINT:

      The bolt (A) and 2 bolts (D) are in the locations shown in the following step.

    4. Temporarily install a new transmission case side cover to the automatic transaxle case sub-assembly with the 2 bolts ((A) and (B)).
      GTY707697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Bolt (A) is an adhesive-coated bolt.
      • To avoid damaging the gasket, prevent it from contacting the surrounding area during installation procedures.
    5. Temporarily install the 6 bolts (C) and 2 bolts (D).
      NOTE:

      Bolt (D) is an adhesive-coated bolt.

    6. Operate the engine support bridge and the jack to lower the engine and automatic transaxle assembly.
    7. Fully tighten the 10 bolts in the order shown in the illustration.
      Fig 1: Tightening Sequence Of Transmission Case Side Cover
      GTY699371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length

      Specified tightening torque for Bolt (A) and Bolt (D)

      Torque: 6.5 N*m (66 kgf*cm, 58 in.*lbf)

      Specified tightening torque for Bolt (B) and Bolt (C)

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

      HINT:

      • If a socket wrench will not fit, use a union nut wrench.
      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [11/2016 - ]

      • When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)) Bolt (A) and Bolt (D):

        5.7 N*m (58 kgf*cm, 50 in.*lbf)

      • When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)) Bolt (B) and Bolt (C):

        6.2 N*m (63 kgf*cm, 55 in.*lbf)

    8. Tighten the engine mounting insulator LH with the nut.

      Torque: 95 N*m (969 kgf*cm, 70 ft.*lbf)

    9. Tighten the front engine mounting insulator assembly with the bolt.

      Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)

    10. Connect the transmission wire connector.
  4. INSTALL TRANSMISSION CASE SIDE COVER (for AISIN AW Made)

    HINT:

    TMC (TOYOTA) Made and AW (AISIN AW) Made components can be identified by the differing locations where the serial number is stamped.

    GTY718769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a TMC Made
    *b AW Made
    1. Clean the transmission case side cover installation surface of the automatic transaxle case sub-assembly.
      GTY686670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Stop And Start System
      *B w/o Stop And Start System
      Area to be cleaned
      NOTE:

      Completely remove any oil or grease from the contact surfaces of the automatic transaxle case sub-assembly.

    2. Temporarily install a new transmission case side cover to the automatic transaxle case sub-assembly with the 2 bolts (A and B).
      GTY707700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      To avoid damaging the gasket, prevent it from contacting the surrounding area during installation procedures.

    3. Temporarily install the 8 bolts (C).
    4. Operate the engine support bridge and the jack to lower the engine and automatic transaxle assembly.
    5. Fully tighten the 10 bolts in the order shown in the illustration.

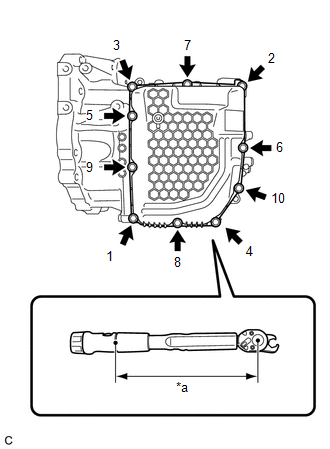

      Fig 2: Tightening Sequence Of Transmission Case Side Cover
      GTY699373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length

      Specified tightening torque

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

      HINT:

      • If a socket wrench will not fit, use a union nut wrench.
      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [11/2016 - ]

      • When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

        6.2 N*m (63 kgf*cm, 55 in.*lbf)

    6. Tighten the engine mounting insulator LH with the nut.

      Torque: 95 N*m (969 kgf*cm, 70 ft.*lbf)

    7. Tighten the front engine mounting insulator assembly with the bolt.

      Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)

    8. Connect the transmission wire connector.
  5. CONNECT OIL COOLER UNION SUB-ASSEMBLY
    1. Pass the oil cooler union sub-assembly through 2 new gaskets and temporarily install it to the automatic transaxle case sub-assembly.
      GTY717563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Oil Cooler Union Bolt
      *2 Gasket
    2. Temporarily install the oil cooler union sub-assembly bracket portion to the automatic transaxle case sub-assembly with the bolt.
    3. Fully tighten the oil cooler union bolt.

      Torque: 22.6 N*m (230 kgf*cm, 17 ft.*lbf)

    4. Fully tighten the bolt.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  6. CONNECT OUTLET NO. 1 OIL COOLER HOSE

    See step  5

  7. CONNECT TRANSMISSION OIL THERMOSTAT
    1. Connect the transmission oil thermostat to the front frame assembly with the 2 bolts.
      GTY718007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 19.5 N*m (199 kgf*cm, 14 ft.*lbf)

  8. REMOVE ENGINE SUPPORT BRIDGE

    Refer to PROCEDURE - Step 26

  9. REMOVE ENGINE HANGER

    Refer to PROCEDURE - Step 27

  10. INSTALL WIRE HARNESS CLAMP BRACKET

    Refer to PROCEDURE - Step 54

  11. INSTALL BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

    Refer to PROCEDURE - Step 61

  12. INSTALL AIR SURGE TANK TO INTAKE MANIFOLD GASKET

    Refer to PROCEDURE - Step 10

  13. INSTALL INTAKE AIR SURGE TANK ASSEMBLY

    Refer to PROCEDURE - Step 11

  14. CONNECT PURGE VALVE (PURGE VSV)

    Refer to PROCEDURE - Step 12

  15. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to INSTALLATION [11/2016 - ]

  16. CONNECT VENTILATION HOSE

    Refer to PROCEDURE - Step 13

  17. INSTALL BATTERY

    Refer to PROCEDURE - Step 64

  18. INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 62

  19. INSTALL INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 63

  20. INSTALL COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 4

  21. INSTALL RADIATOR SIDE SEAL RH

    Refer to PROCEDURE - Step 5

  22. INSTALL RADIATOR SIDE DEFLECTOR SEAL LH

    Refer to PROCEDURE - Step 6

  23. INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  24. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to INSTALLATION [12/2013 - ]

  25. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [11/2016 - ]

  26. ADD AUTOMATIC TRANSAXLE FLUID

    Refer to ADJUSTMENT [11/2016 - ]

  27. INSTALL FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 97

  28. INSTALL FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 98

  29. INSTALL FRONT FENDER LINER LH

    Refer to PROCEDURE - Step 99

  30. INSTALL FRONT FENDER LINER RH

    Refer to PROCEDURE - Step 100

  31. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 103

  32. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 91

  33. INSTALL FRONT WHEELS

    Refer to PROCEDURE - Step 18
