Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
OUTER COWL TOP PANEL SUB-ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
FRONT FENDER APRON SEAL LH |
*2 |
FRONT FENDER APRON SEAL RH |
| *3 |
FRONT FENDER LINER LH |
*4 |
FRONT FENDER LINER RH |
| *5 |
NO. 1 ENGINE UNDER COVER |
*6 |
NO. 2 ENGINE UNDER COVER |
| *7 |
FRONT FLOOR COVER LH |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
ENGINE WIRE |
*2 |
TRANSMISSION CONTROL CABLE ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
FRONT EXHAUST PIPE ASSEMBLY |
*2 |
COMPRESSION SPRING |
| *3 |
NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side) |
*4 |
FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY |
| *5 |
GASKET |
*6 |
MANIFOLD STAY |
| *7 |
EXHAUST MANIFOLD (TWC: Front Catalyst) |
*8 |
EXHAUST MANIFOLD TO HEAD GASKET (for Bank 1) |
| *9 |
AIR FUEL RATIO SENSOR (for Bank 1) |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
FRONT DRIVE SHAFT ASSEMBLY |
*2 |
STEERING INTERMEDIATE SHAFT ASSEMBLY |
| *3 |
FRONT STABILIZER LINK ASSEMBLY LH |
*4 |
FRONT SPEED SENSOR |
| *5 |
TIE ROD ASSEMBLY LH |
*6 |
FRONT AXLE SHAFT NUT |
| *7 |
COTTER PIN |
*8 |
FRONT FLEXIBLE HOSE |
| *9 |
FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Do not apply lubricants to the threaded parts |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
for LHD |
- |
- |
| *1 |
BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY |
*2 |
WINDSHIELD WASHER JAR ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

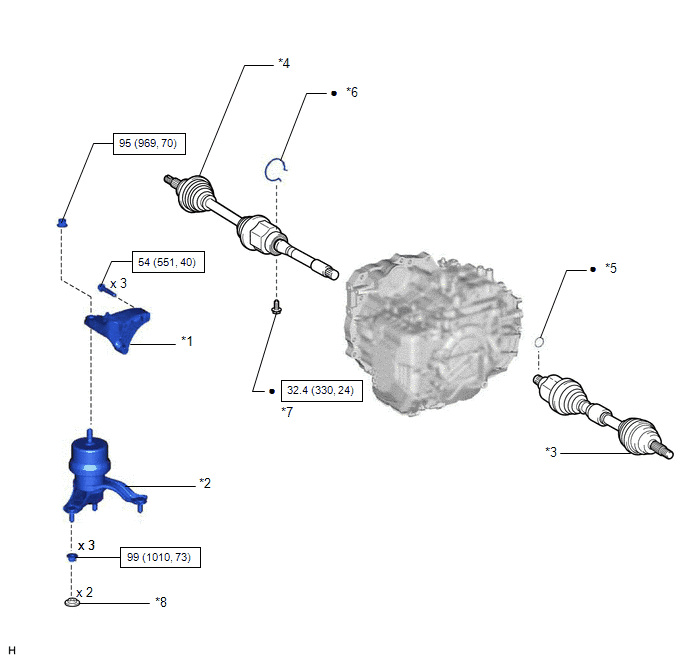

| Callout |
Description |
Callout |
Description |
| *1 |
ENGINE MOUNTING BRACKET RH |
*2 |
ENGINE MOUNTING INSULATOR RH |
| *3 |
FRONT DRIVE SHAFT ASSEMBLY LH |
*4 |
FRONT DRIVE SHAFT ASSEMBLY RH |
| *5 |
FRONT DRIVE SHAFT HOLE SNAP RING |
*6 |
BEARING BRACKET HOLE SNAP RING |
| *7 |
NO. 1 DRIVE SHAFT BEARING BRACKET SETTING BOLT |
*8 |
HOLE PLUG |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
VENTILATION HOSE |
*2 |
PURGE VALVE (PURGE VSV) |
| *3 |
NO. 1 FUEL VAPOR FEED HOSE |
*4 |
NO. 2 SURGE TANK STAY |
| *5 |
INTAKE AIR SURGE TANK ASSEMBLY |
*6 |
AIR SURGE TANK TO INTAKE MANIFOLD GASKET |
| *7 |
VACUUM HOSE SUB-ASSEMBLY |
*8 |
NO. 2 AIR TUBE |
| *9 |
WIRE HARNESS CLAMP BRACKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Do not apply lubricants (to the threaded parts) |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

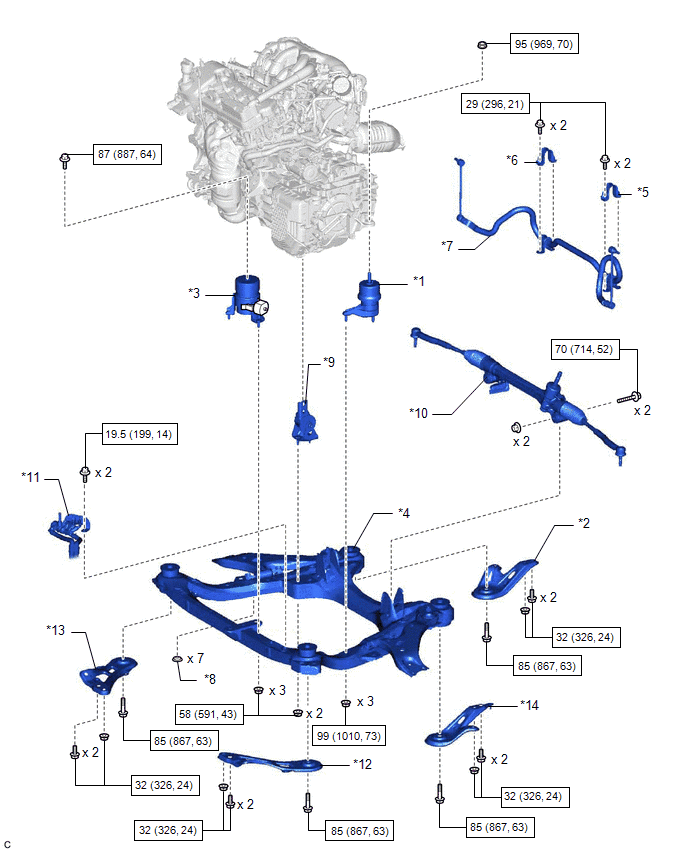

| Callout |
Description |
Callout |
Description |
| *1 |
ENGINE MOUNTING INSULATOR LH |
*2 |
FRONT SUSPENSION MEMBER REAR BRACE RH |
| *3 |
FRONT ENGINE MOUNTING INSULATOR ASSEMBLY |
*4 |
FRONT FRAME ASSEMBLY |
| *5 |
FRONT NO. 1 STABILIZER BRACKET LH |
*6 |
FRONT NO. 1 STABILIZER BRACKET RH |
| *7 |
FRONT STABILIZER BAR WITH FRONT STABILIZER LINK ASSEMBLY |
*8 |
HOLE PLUG |
| *9 |
REAR ENGINE MOUNTING INSULATOR ASSEMBLY |
*10 |
STEERING LINK ASSEMBLY |
| *11 |
TRANSMISSION OIL THERMOSTAT |
*12 |
FRAME SIDE RAIL PLATE LH |
| *13 |
FRAME SIDE RAIL PLATE RH |
*14 |
FRONT SUSPENSION MEMBER REAR BRACE LH |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
AUTOMATIC TRANSAXLE ASSEMBLY |
*2 |
DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT |
| *3 |
EARTH WIRE |
*4 |
FLYWHEEL HOUSING UNDER COVER |
| *5 |
TORQUE CONVERTER ASSEMBLY |
*6 |
TRANSFER ASSEMBLY |
| *7 |
TRANSFER STIFFENER PLATE RH |
*8 |
TRANSFER AND TRANSAXLE SETTING STUD BOLT |
| *9 |
MANIFOLD STAY |
- |
- |
| *a |
BLACK COLOR: x 1
SILVER COLOR: x 5 |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
|
Clutch spline grease |
| * |
Precoated part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
INLET NO. 2 OIL COOLER HOSE |
*2 |
NO. 1 OIL COOLER TUBE SUB-ASSEMBLY WITHOUT HOSE |
| *3 |
NO. 1 TRANSMISSION OIL COOLER HOSE |
*4 |
NO. 3 WATER BY-PASS HOSE |
| *5 |
NO. 4 WATER BY-PASS HOSE |
*6 |
OUTLET NO. 1 OIL COOLER HOSE |
| *7 |
OUTLET NO. 3 OIL COOLER HOSE |
*8 |
TRANSMISSION OIL COOLER |
| *9 |
TRANSMISSION OIL THERMOSTAT |
*10 |
INLET NO. 1 OIL COOLER HOSE |
| *11 |
OUTLET NO. 2 OIL COOLER HOSE |
*12 |
NO. 2 TRANSMISSION OIL COOLER HOSE |
| *13 |
TRANSMISSION OIL COOLER TUBE CLAMP |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
BREATHER PLUG HOSE |
*2 |
NO. 1 TRANSMISSION CONTROL CABLE BRACKET |
| *3 |
ENGINE MOUNTING BRACKET LH |
*3 |
FRONT ENGINE MOUNTING BRACKET |
| *5 |
WIRE HARNESS CLAMP BRACKET |
*6 |
BREATHER PLUG SUB-ASSEMBLY |
| *7 |
RADIATOR PIPE ASSEMBLY |
*8 |
TRANSMISSION CASE PLUG ASSEMBLY |
| *9 |
NO. 3 WATER BY-PASS HOSE |
*10 |
NO. 4 WATER BY-PASS HOSE |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
- |
- |
