System Diagram [12/2013 - 11/2016]

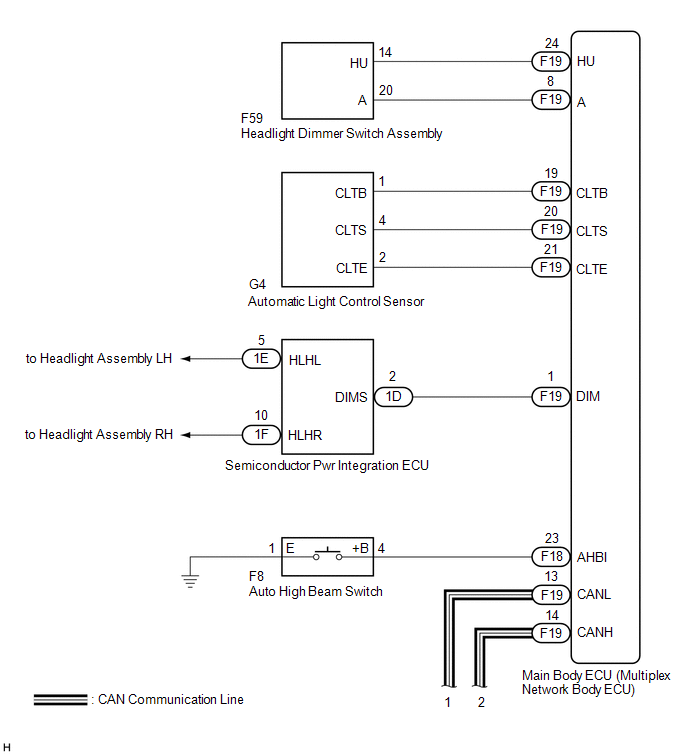

Fig 1: Automatic High Beam System Wiring Diagram (1 Of 2)
GTY448921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Automatic High Beam System Wiring Diagram (2 Of 2)
GTY432091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
