Removal [02/2014 - 11/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to REMOVAL [02/2014 - ]

  2. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3 , or refer to PROCEDURE - Step 3

  3. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22 , or refer to PROCEDURE - Step 22

  4. REMOVE RADIATOR SIDE DEFLECTOR SEAL LH

    Refer to PROCEDURE - Step 1

  5. REMOVE RADIATOR SIDE SEAL RH

    Refer to PROCEDURE - Step 2

  6. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 3

  7. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  8. REMOVE INTAKE AIR RESONATOR SUB-ASSEMBLY

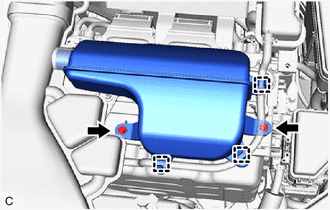

    1. Disengage the 3 hose clamps from the intake air resonator sub-assembly.
      GTY425287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts.
    3. Remove the intake air resonator sub-assembly from the inlet No. 2 air cleaner.
  9. REMOVE INLET NO. 2 AIR CLEANER

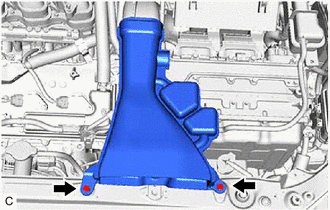

    1. Remove the 2 bolts.
      GTY450724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the inlet No. 2 air cleaner from the inlet No. 1 air cleaner.
  10. REMOVE INLET NO. 1 AIR CLEANER

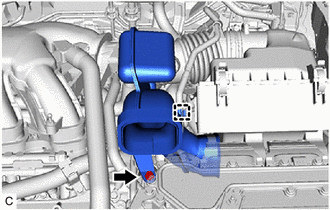

    1. Disengage the hose clamp from the inlet No. 1 air cleaner.
      GTY425285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt.
    3. Remove the inlet No. 1 air cleaner from the air cleaner assembly.
  11. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

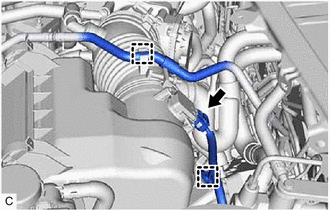

    1. Disengage the hose clamp from the air cleaner hose.
      GTY425283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the mass air flow meter sub-assembly connector and disengage the wire harness clamp.

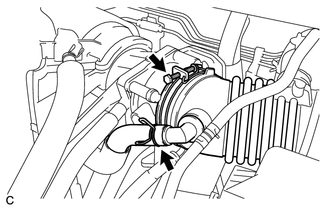

    3. Slide the clip and disconnect the ventilation hose from the air cleaner hose.
      GTY307272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Loosen the hose clamp and disconnect the air cleaner hose from the throttle body with motor assembly.

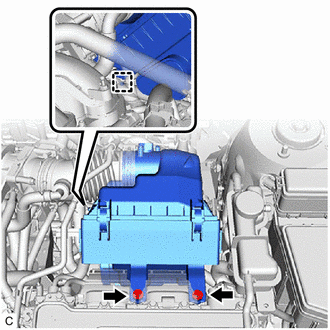

    5. Remove the 2 bolts.
      GTY425284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disengage the clamp to remove the air cleaner assembly with air cleaner hose.
  12. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
    1. Disconnect the throttle body with motor assembly connector and disengage the wire harness clamp.
      GTY454760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the 2 clips and disconnect the No. 2 water by-pass hose and No. 3 water by-pass hose from the throttle body with motor assembly.
      GTY453958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Water By-pass Hose
      *2 No. 3 Water By-pass Hose
    3. Remove the 4 bolts, wire harness clamp bracket and throttle body with motor assembly from the intake air surge tank assembly.
      GTY444093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the throttle body with motor assembly has been struck or dropped, replace it.

  13. REMOVE THROTTLE BODY GASKET
    1. Remove the throttle body gasket from the intake air surge tank assembly.
      GTY251124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
