Installation [02/2014 - 11/2015]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL REAR NO. 1 SEAT OUTER BELT ASSEMBLY
1. Temporarily install the rear No. 1 seat outer belt assembly with the 2 bolts.

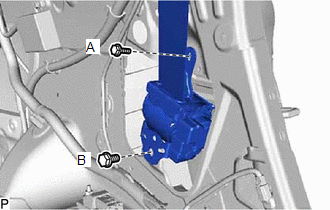

  Fig 1: Tightening Sequence Of Rear No. 1 Seat Outer Belt Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Fully tighten the bolt (A) first, then the bolt (B).
  Bolt (A)

  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  Bolt (B)

  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
3. Connect the shoulder anchor of the rear No. 1 seat outer belt assembly with the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
INSTALL QUARTER PILLAR GARNISH
Refer to PROCEDURE - Step 23
INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)
Refer to PROCEDURE - Step 24
INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)
Refer to PROCEDURE - Step 35
INSTALL ROPE HOOK
Refer to PROCEDURE - Step 25
INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
Refer to PROCEDURE - Step 26
INSTALL DECK TRIM POCKET COVER
Refer to PROCEDURE - Step 27
INSTALL NO. 1 ROOM LIGHT ASSEMBLY (for RH Side)
Refer to PROCEDURE - Step 2
INSTALL COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR (for RH Side)
Refer to PROCEDURE - Step 1
CONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY
See step 10
INSTALL NO. 2 DECK SIDE TRIM COVER (for LH Side)
Refer to PROCEDURE - Step 30
INSTALL NO. 1 DECK SIDE TRIM COVER (for RH Side)
Refer to PROCEDURE - Step 43

CONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY

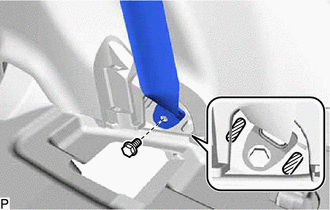

Connect the floor anchor of the rear No. 1 seat outer belt assembly with the bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protruding Part

Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTE:

Do not allow the anchor part of the rear No. 1 seat outer belt assembly to overlap the protruding parts of the floor panel.
