Installation [11/2016 - ]: Procedure

HINT:

Perform "Inspection After Repair" after replacing the heated oxygen sensor.

Refer to INITIALIZATION [11/2016 - ]

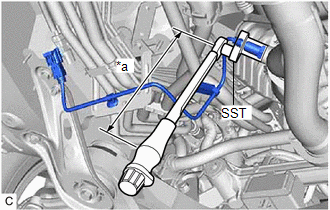

1. Using SST, install the heated oxygen sensor to the front exhaust pipe assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Torque Wrench Fulcrum Length

   • SST: 09224-00012

   Specified tightening torque

   Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

   NOTE:

   If the heated oxygen sensor has been struck or dropped, replace it.

   HINT:

   • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

     Refer to PRECAUTION [11/2016 - ]

   • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

     37.7 N*m (384 kgf*cm, 28 ft.*lbf)

Refer to PROCEDURE - Step 7

Refer to PROCEDURE - Step 19

Refer to PROCEDURE - Step 84

HINT:

Perform "Inspection After Repair" after replacing the heated oxygen sensor.

Refer to INITIALIZATION [11/2016 - ]

1. Using SST, install the heated oxygen sensor to the front No. 3 exhaust pipe sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Torque Wrench Fulcrum Length

   • SST: 09224-00012

   Specified tightening torque

   Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

   NOTE:

   If the heated oxygen sensor has been struck or dropped, replace it.

   HINT:

   • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

     Refer to PRECAUTION [11/2016 - ]

   • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

     37.7 N*m (384 kgf*cm, 28 ft.*lbf)

2. Engage the 3 wire harness clamps.
3. Connect the heated oxygen sensor connector.

Refer to PROCEDURE - Step 10

Refer to PROCEDURE - Step 83

Refer to PROCEDURE - Step 26

1. Perform "Inspection After Repair" after replacing the heated oxygen sensor.

   Refer to INITIALIZATION [11/2016 - ]
