Removal [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 8

  2. REMOVE NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9

  3. REMOVE FRONT FLOOR COVER LH

    See step  3

  4. REMOVE TAIL EXHAUST PIPE ASSEMBLY
    1. Remove the 2 bolts and disconnect the tail exhaust pipe assembly from the center exhaust pipe assembly (TWC: Rear Catalyst).
      GTY446513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the tail exhaust pipe assembly from the 4 exhaust pipe supports.
      GTY446512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the gasket from the center exhaust pipe assembly (TWC: Rear Catalyst).
  5. REMOVE NO. 3 EXHAUST PIPE DAMPER

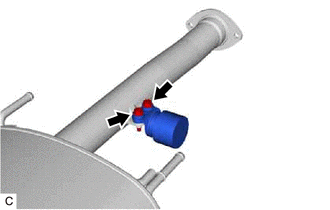

    1. Remove the 2 bolts and No. 3 exhaust pipe damper from the tail exhaust pipe assembly.
      GTY693140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE CENTER EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

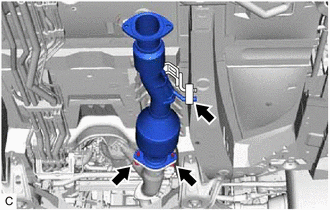

    1. Remove the 2 bolts and 2 compression springs to disconnect the center exhaust pipe assembly (TWC: Rear Catalyst) from the front No. 3 exhaust pipe sub-assembly.
      GTY732365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the center exhaust pipe assembly (TWC: Rear Catalyst) from the exhaust pipe support.
    3. Remove the gasket from the front No. 3 exhaust pipe sub-assembly.
  7. REMOVE FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY

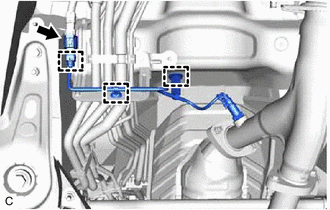

    1. Disengage the 3 wire harness clamps.
      GTY693142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the heated oxygen sensor (for Bank 1) connector.

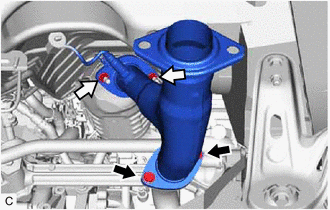

    3. Remove the 2 bolts, 2 nuts and front No. 3 exhaust pipe sub-assembly from the front exhaust pipe assembly and exhaust manifold (TWC: Front Catalyst).
      GTY725551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    4. Remove the 2 gaskets from the front No. 3 exhaust pipe sub-assembly.
  8. REMOVE HEATED OXYGEN SENSOR (for Bank 1)
    1. Remove the wire harness clamp bracket from the heated oxygen sensor (for Bank 1).
      GTY659041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the heated oxygen sensor (for Bank 1) from the front No. 3 exhaust pipe sub-assembly.
      • SST: 09224-00012
      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.

      GTY630949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side)

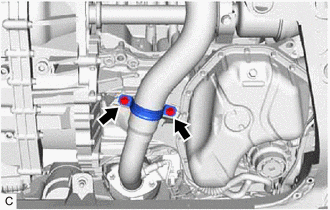

    1. Remove the 2 bolts and No. 1 exhaust pipe support bracket (for Lower Side).
      GTY693133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT EXHAUST PIPE ASSEMBLY

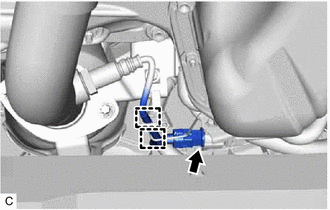

    1. Disengage the 2 wire harness clamps.
      GTY693134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the heated oxygen sensor (for Bank 2) connector.
    3. Remove the 2 nuts and front exhaust pipe assembly from the exhaust manifold assembly LH (TWC: Front Catalyst).
      GTY628019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the gasket from the front exhaust pipe assembly.
  11. REMOVE HEATED OXYGEN SENSOR (for Bank 2)

    Refer to PROCEDURE - Step 7
