Components [12/2013 - 11/2016]: Illustration

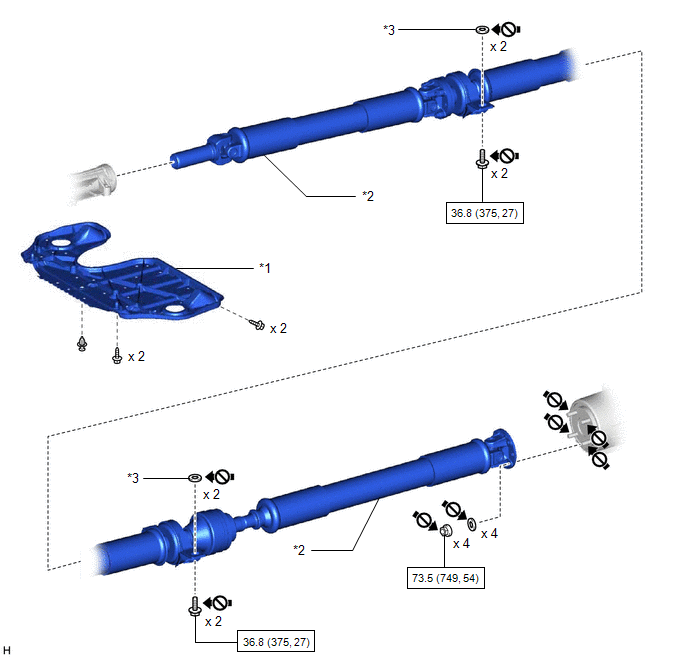

Fig 1: Propeller Shaft Assembly Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 2 ENGINE UNDER COVER	*2	PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
*3	NO. 2 CENTER SUPPORT BEARING WASHER	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque		Do not apply lubricants

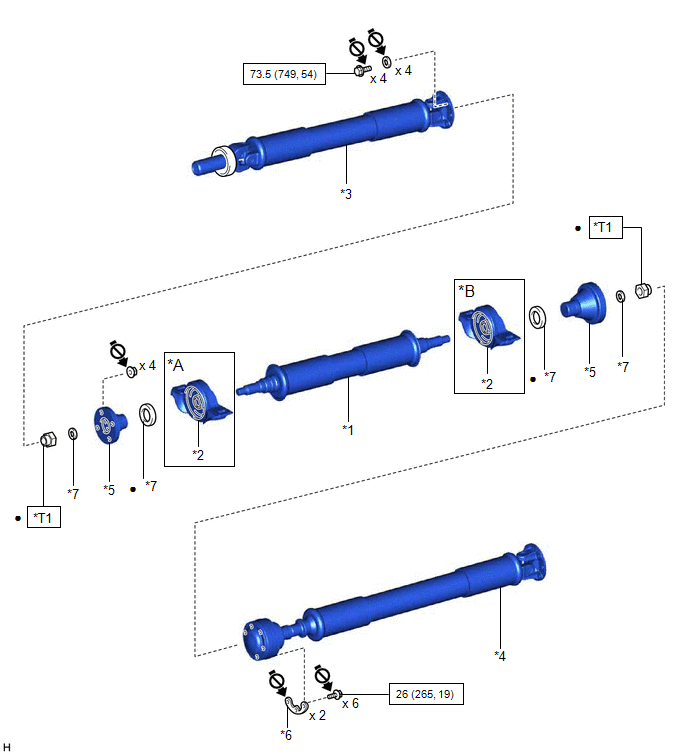

Fig 1: Propeller Shaft Assembly Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Front Side	*B	for Rear Side
*1	INTERMEDIATE SHAFT ASSEMBLY	*2	NO. 2 CENTER SUPPORT BEARING ASSEMBLY
*3	PROPELLER SHAFT ASSEMBLY	*4	REAR PROPELLER SHAFT ASSEMBLY
*5	UNIVERSAL JOINT FLANGE	*6	UNIVERSAL JOINT WASHER
*7	WASHER	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
	Do not apply lubricants	*T1	1st: 181.5 (1851, 134) 2nd: 68.7 (701, 51)
