Installation [11/2016 - ]: Procedure

  1. INSTALL REAR NO. 2 SEAT INNER BELT SUB-ASSEMBLY (for LH Side)
    1. Pass the rear No. 2 seat inner belt sub-assembly through the rubber band of the rear seat cushion assembly as shown in the illustration.

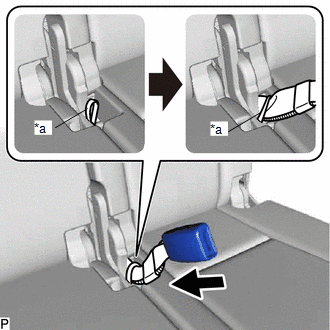

      GTY706360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rubber Band
    2. Engage the 2 fasteners.
    3. Engage the 2 clamps to install the rear No. 2 seat inner belt sub-assembly.
  2. INSTALL REAR NO. 2 SEAT INNER BELT ASSEMBLY RH (for RH Side)
    1. Pass the rear No. 2 seat inner belt assembly RH through the rear seat cushion assembly as shown in the illustration.

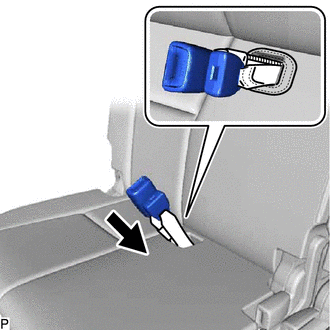

      GTY726776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
    3. Engage the 2 fasteners.
    4. Engage the 2 clamps to install the rear No. 2 seat inner belt assembly RH.
  3. INSTALL REAR NO. 2 SEAT ASSEMBLY

    Refer to INSTALLATION [11/2016 - ]
