Installation [12/2013 - 11/2016]: Procedure

1. Using height adjustment attachments and plate lift attachments, place the engine assembly on a flat level surface.
   NOTE:

   • Using height adjustment attachments and plate lift attachments, place the engine assembly horizontally.
   • To prevent the oil pan sub-assembly from deforming, do not place any attachments under the oil pan sub-assembly of the engine assembly.
   • Using an engine sling device and engine lift, secure the engine assembly before service.
2. Apply MP grease to the lip of a new rear engine oil seal.
   NOTE:

   • Keep the lip free from foreign matter.
   • Do not allow MP grease to contact the dust seal.

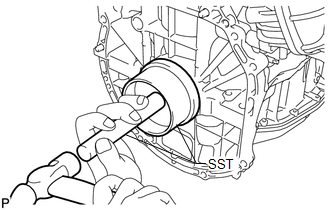

3. Using SST and a hammer, tap in the rear engine oil seal until its surface is flush with the edges of the cylinder block sub-assembly and stiffening crankcase assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09223-15030
   • SST: 09950-70010
     1. 09951-07150
   NOTE:

   • Keep the lip free from foreign matter.
   • Do not tap in the rear engine oil seal at an angle.

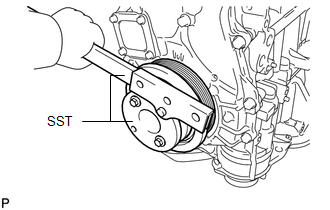

1. Using SST, hold the crankshaft.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09213-54015
   • SST: 91551-80650

   HINT:

   SST (crankshaft pulley holding tool) fixing bolt part No.: 91551-80650 (2 pcs)

2. Clean the 8 bolts and the bolt holes.
3. Install the front drive plate spacer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Align the pin of the front drive plate spacer with the pin hole of the crankshaft.

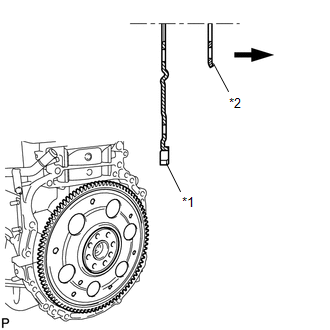

4. Install the drive plate and ring gear sub-assembly and rear drive plate spacer onto the crankshaft.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Drive Plate and Ring Gear Sub-assembly
   *2	Rear Drive Plate Spacer
   	Transaxle Side

5. Apply adhesive to 2 or 3 threads at the end of each of the 8 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Adhesive

   Adhesive

   Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

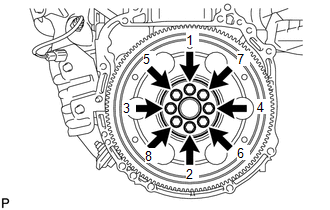

6. Install and uniformly tighten the 8 bolts in several steps in the sequence shown in the illustration.

   Torque: 98 N*m (999 kgf*cm, 72 ft.*lbf)

   Fig 1: Flywheel Drive Plate And Ring Gear Bolts Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   Do not start the engine for at least 1 hour after installing the drive plate and ring gear sub-assembly.

Refer to INSTALLATION [12/2013 - 11/2016]
