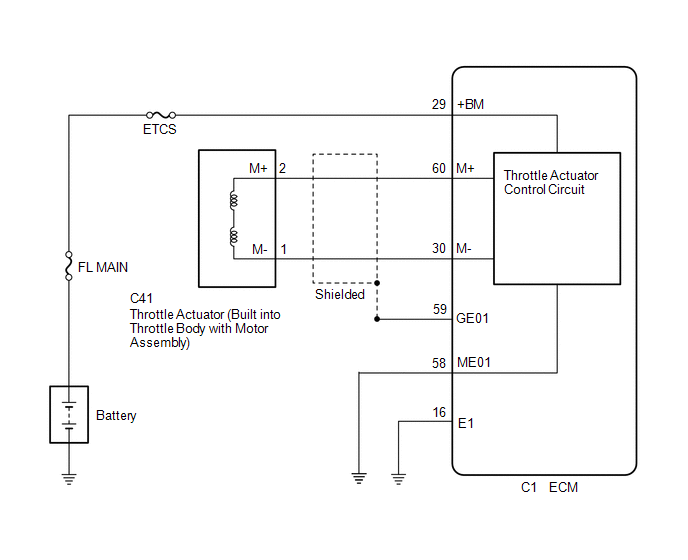

DTC P2102: Throttle Actuator Control Motor Circuit Low; DTC P2103: Throttle Actuator Control Motor Circuit High [12/2013 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY453837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
