Components [12/2013 - ]: Illustration

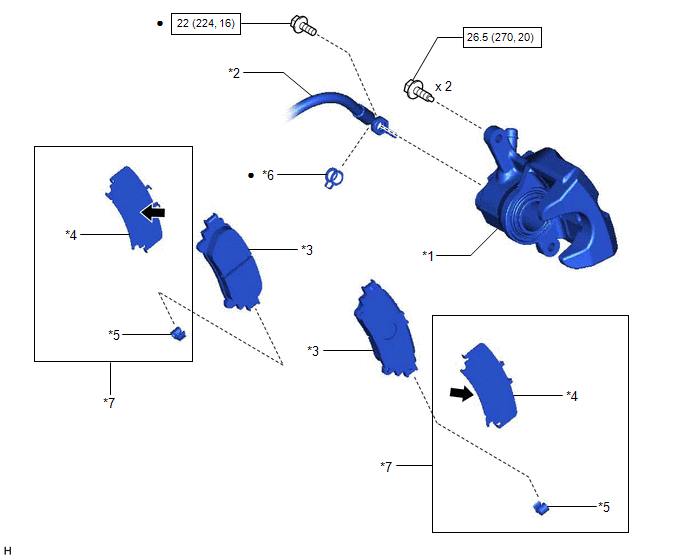

Fig 1: Rear Brake Replacement Components With Torque Specifications (1 Of 3)
GTY481256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR DISC BRAKE CYLINDER ASSEMBLY *2 REAR FLEXIBLE HOSE
*3 REAR DISC BRAKE PAD *4 REAR DISC BRAKE ANTI-SQUEAL SHIM
*5 REAR DISC BRAKE PAD WEAR INDICATOR PLATE *6 GASKET
*7 REAR DISC BRAKE ANTI-SQUEAL SHIM KIT - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Disc brake grease - -

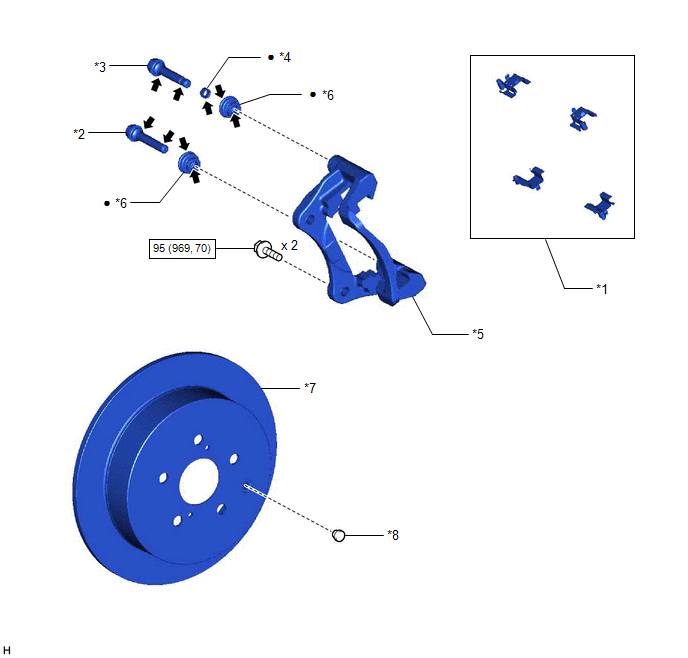

Fig 1: Rear Brake Replacement Components With Torque Specifications (2 Of 3)
GTY424256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR DISC BRAKE PAD SUPPORT PLATE *2 REAR NO. 1 DISC BRAKE CYLINDER SLIDE PIN
*3 REAR NO. 2 DISC BRAKE CYLINDER SLIDE PIN *4 REAR DISC BRAKE CYLINDER SLIDE BUSHING
*5 REAR DISC BRAKE CYLINDER MOUNTING *6 REAR DISC BRAKE BUSHING DUST BOOT
*7 REAR DISC *8 PARKING BRAKE SHOE ADJUSTING HOLE PLUG
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Lithium soap base glycol grease - -

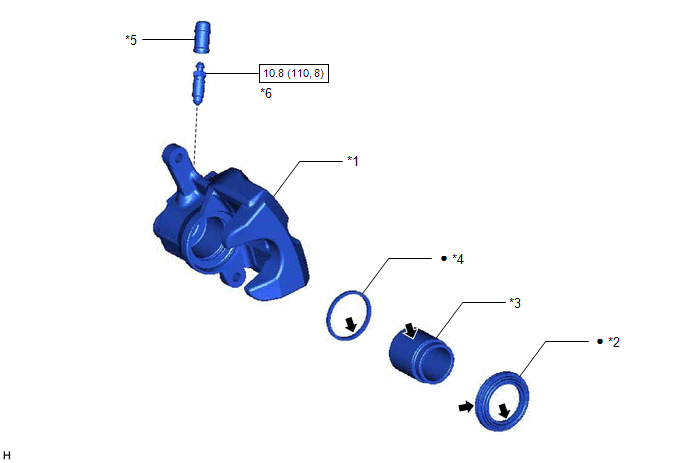

Fig 1: Rear Brake Replacement Components With Torque Specifications (3 Of 3)
GTY438283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR DISC BRAKE CYLINDER *2 CYLINDER BOOT
*3 REAR DISC BRAKE PISTON *4 PISTON SEAL
*5 REAR DISC BRAKE BLEEDER PLUG CAP *6 REAR DISC BRAKE BLEEDER PLUG
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Lithium soap base glycol grease - -
