Components [12/2013 - ]: Illustration

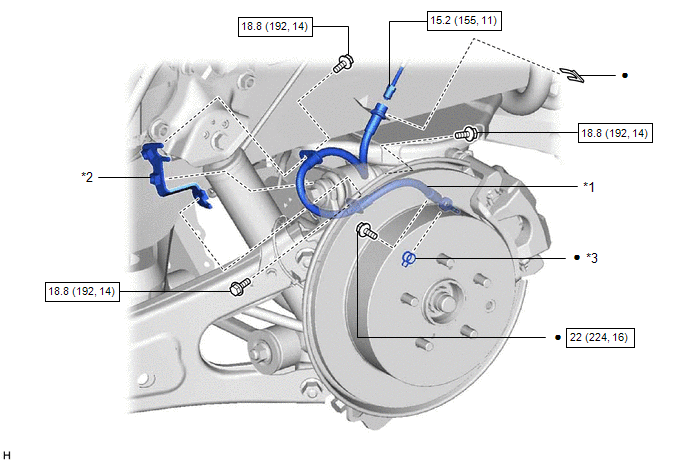

Fig 1: Rear Brake Flexible Hose Replacement Components With Torque Specifications
GTY480488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR FLEXIBLE HOSE *2 FLEXIBLE HOSE BRACKET
*3 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
