Installation [12/2013 - ]: Procedure

  1. INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY

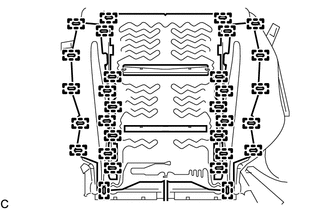

    1. Install the front seat cushion heater assembly to the separate type front seat cushion cover with 30 new tag pins.
      GTY429655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the separate type front seat cushion cover.

  2. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER (for Manual Seat)

    Refer to PROCEDURE - Step 13 , or refer to PROCEDURE - Step 13 , or refer to PROCEDURE - Step 14

  3. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER (for Power Seat)

    Refer to PROCEDURE - Step 15 , or refer to PROCEDURE - Step 15 , or refer to PROCEDURE - Step 16

  4. INSTALL FRONT SEAT ASSEMBLY (for Manual Seat)

    Refer to INSTALLATION [12/2013 - ]

  5. INSTALL FRONT SEAT ASSEMBLY (for Power Seat)

    Refer to INSTALLATION [12/2013 - ]
