Components [12/2013 - ]: Illustration

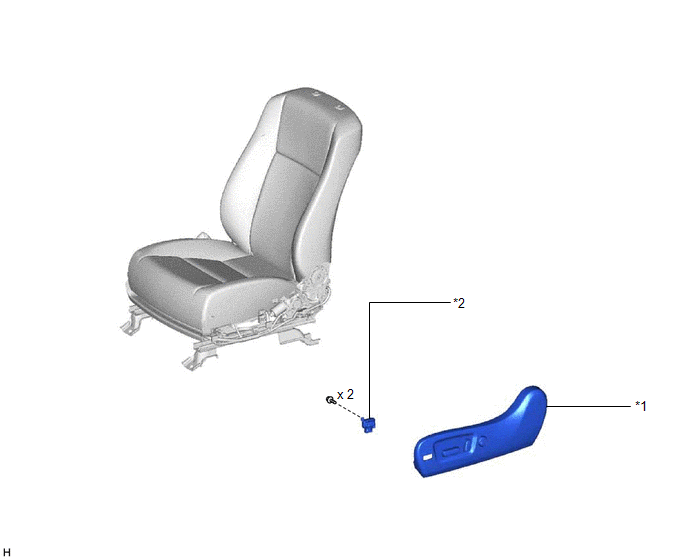

Fig 1: Seat Variable Cushion Switch Component Replacements
GTY439059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT SEAT CUSHION SHIELD *2 SEAT VARIABLE CUSHION SWITCH
