Removal [12/2013 - ]: Procedure

  1. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to DISASSEMBLY [12/2013 - 11/2015] , or refer to DISASSEMBLY [11/2015 - ]

  2. REMOVE SEAT MEMORY SWITCH

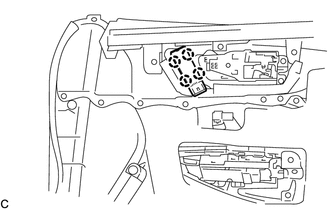

    1. Disengage the 4 claws to remove the seat memory switch from the front door trim board sub-assembly.
      GTY423572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
