Removal [12/2013 - 11/2016]: Procedure

  1. REMOVE REAR NO. 1 SEAT ASSEMBLY

    Refer to REMOVAL [12/2013 - ]

  2. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY
    1. Remove the 2 hog rings.

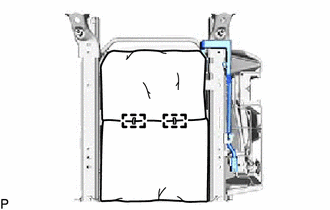

      GTY443926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 connectors.
    3. Disengage the 2 clamps to remove the seat heater control sub-assembly from the rear No. 1 seat assembly.

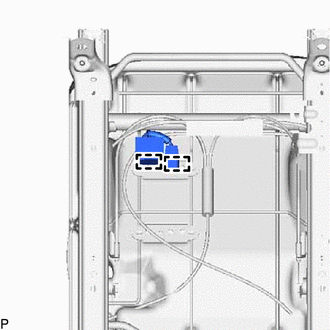

      GTY435642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
