Removal [11/2016 - ]: Procedure

  1. REMOVE REAR NO. 1 SEAT ASSEMBLY (for Captain Seat Type)

    Refer to REMOVAL [12/2013 - ]

  2. REMOVE REAR NO. 1 SEAT ASSEMBLY (for 60/40 Split Seat Type LH Side)

    Refer to REMOVAL [12/2013 - ]

  3. REMOVE REAR NO. 1 SEAT ASSEMBLY (for 60/40 Split Seat Type RH Side)

    Refer to REMOVAL [12/2013 - ]

  4. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY (for Captain Seat Type)

    See step  5

  5. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY (for 60/40 Split Seat Type LH Side)
    1. Remove the 2 hog rings.
      GTY443926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 connectors.
    3. Disengage the 2 clamps to remove the seat heater control sub-assembly from the rear No. 1 seat assembly.
      GTY435642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY (for 60/40 Split Seat Type RH Side)

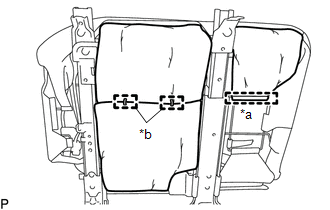

    1. Remove the 2 hog rings.
      GTY429910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Hog Ring
    2. Disengage the hook.

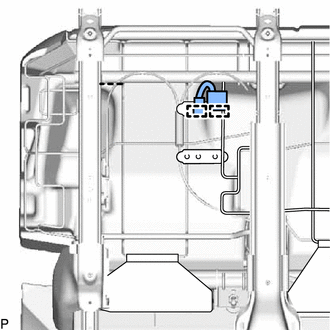

    3. Disconnect each connector.
    4. Disengage the 2 clamps to remove the seat heater control sub-assembly from the rear No. 1 seat assembly.
      GTY721829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
