Components [12/2013 - 11/2016]: Illustration

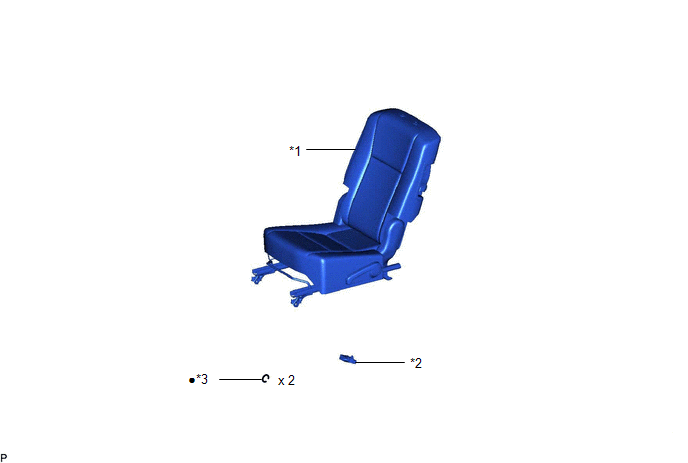

Fig 1: Seat Heater Control (For Rear Side) Component Replacements
GTY438146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR NO. 1 SEAT ASSEMBLY *2 SEAT HEATER CONTROL SUB-ASSEMBLY
*3 HOG RING - -
• Non-reusable part - -
