Components [11/2016 - ]: Illustration

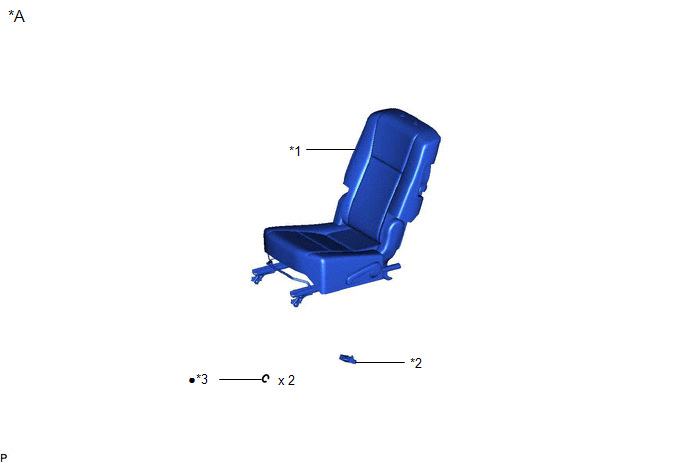

Fig 1: Seat Heater Control (For Rear Side) Component Replacements (1 Of 2)
GTY698190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for Captain Seat Type - -
*1 REAR NO. 1 SEAT ASSEMBLY *2 SEAT HEATER CONTROL SUB-ASSEMBLY
*3 HOG RING - -
• Non-reusable part - -

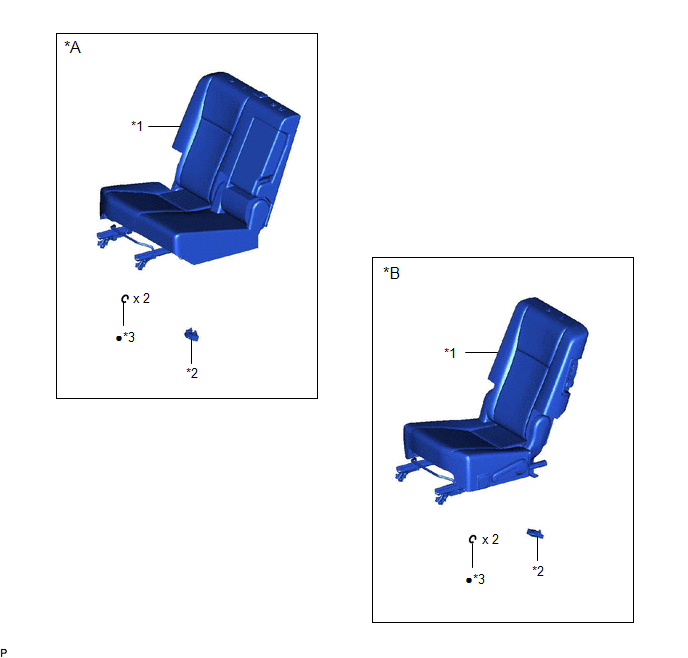

Fig 1: Seat Heater Control (For Rear Side) Component Replacements (2 Of 2)
GTY690673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for 60/40 Split Seat Type RH Side *B for 60/40 Split Seat Type LH Side
*1 REAR NO. 1 SEAT ASSEMBLY *2 SEAT HEATER CONTROL SUB-ASSEMBLY
*3 HOG RING - -
• Non-reusable part - -
