Components [12/2013 - 11/2016]: Illustration

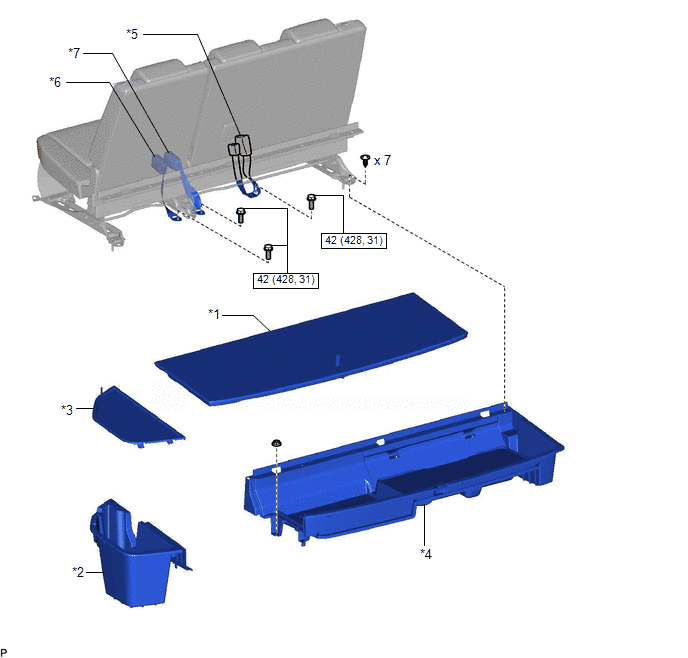

Fig 1: Rear No. 2 Seat Assembly Component Replacements With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	DECK BOARD ASSEMBLY	*2	DECK SIDE TRIM BOX LH
*3	NO. 3 DECK BOARD SUB-ASSEMBLY	*4	REAR DECK FLOOR BOX
*5	REAR NO. 2 SEAT INNER BELT ASSEMBLY RH	*6	REAR NO. 2 SEAT INNER BELT SUB-ASSEMBLY
*7	SEAT INNER BELT SUB-ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

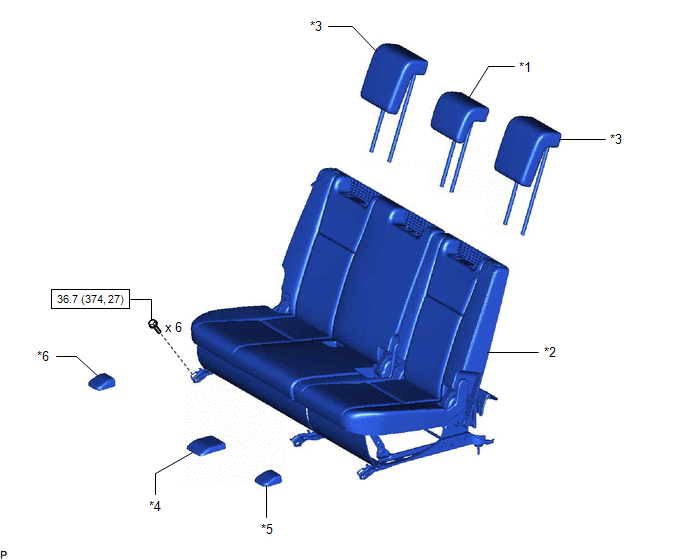

Fig 1: Rear No. 2 Seat Assembly Component Replacements With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 2 SEAT HEADREST ASSEMBLY	*2	REAR NO. 2 SEAT ASSEMBLY
*3	REAR SEAT HEADREST ASSEMBLY	*4	REAR SEAT LEG COVER
*5	REAR SEAT LEG COVER LH	*6	REAR SEAT LEG COVER RH
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

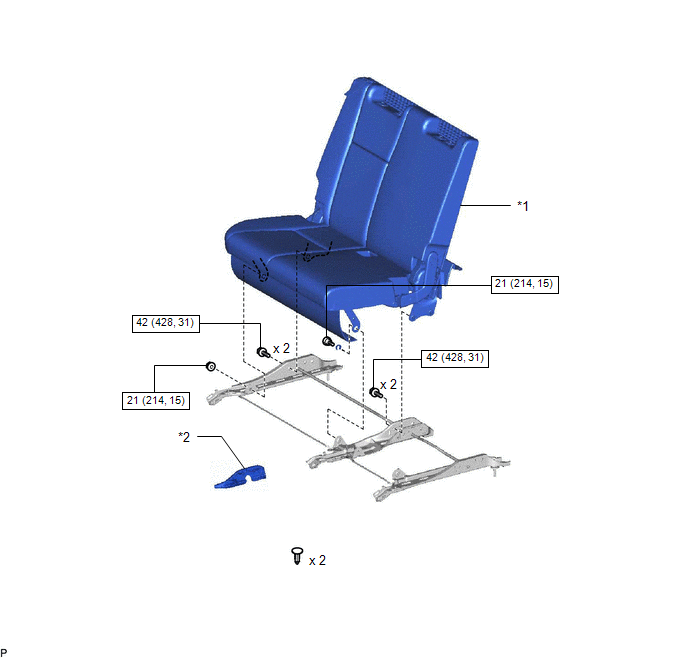

Fig 1: Rear No. 2 Seat Assembly Component Replacements With Torque Specifications (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 2 SEAT ASSEMBLY LH	*2	REAR SEAT INNER BELT COVER LH
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

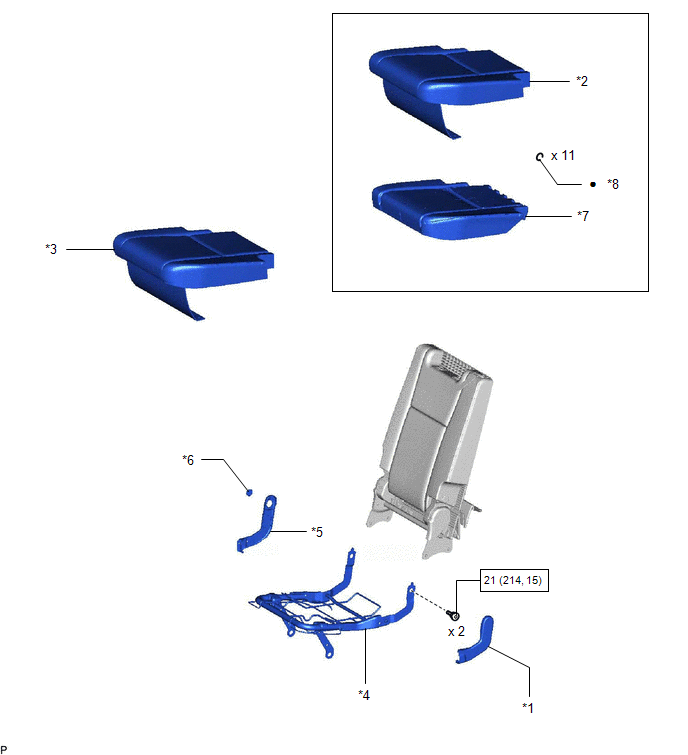

Fig 1: Rear No. 2 Seat Assembly Component Replacements With Torque Specifications (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	LOWER REAR SEAT CUSHION HINGE COVER LH	*2	NO. 2 SEAT CUSHION COVER SUB-ASSEMBLY LH
*3	NO. 2 SEAT CUSHION COVER WITH PAD LH	*4	NO. 2 SEAT CUSHION FRAME SUB-ASSEMBLY LH
*5	NO. 3 REAR SEAT CUSHION HINGE COVER	*6	REAR SEAT CUSHION HINGE COVER CAP
*7	REAR SEAT CUSHION PAD LH	*8	HOG RING
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

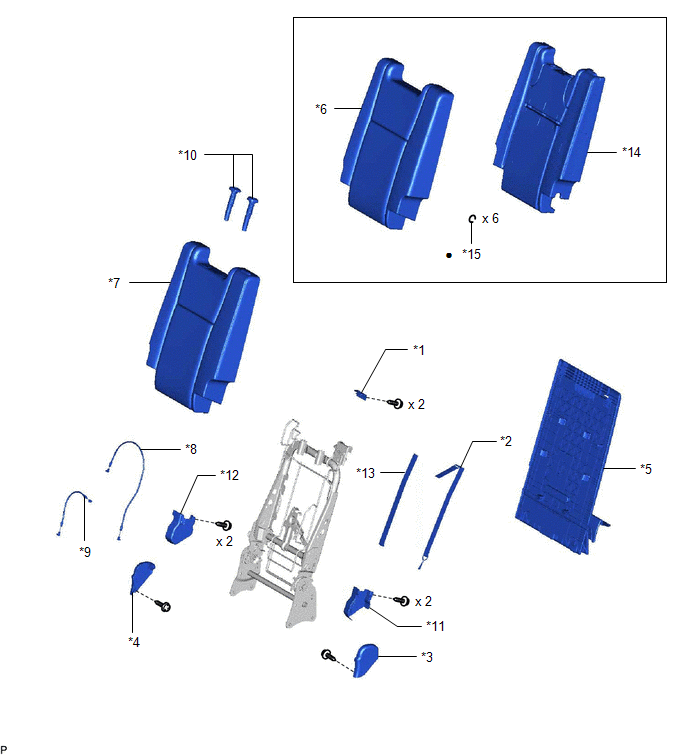

Fig 1: Rear No. 2 Seat Assembly Component Replacements (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 2 REAR SEAT COVER BEZEL	*2	NO. 2 REAR SIDE SEAT BAND SUB-ASSEMBLY
*3	NO. 2 SEAT HINGE COVER	*4	NO. 2 SEAT NO. 3 HINGE COVER
*5	NO. 2 SEATBACK BOARD SUB-ASSEMBLY LH	*6	NO. 2 SEATBACK COVER SUB-ASSEMBLY LH
*7	NO. 2 SEATBACK COVER WITH PAD LH	*8	REAR NO. 2 SEAT CUSHION LOCK CABLE ASSEMBLY
*9	REAR NO. 2 SEAT CUSHION LOCK CABLE ASSEMBLY LH	*10	REAR NO. 2 SEAT HEADREST SUPPORT ASSEMBLY
*11	REAR NO. 2 SEAT RECLINING COVER LH	*12	REAR NO. 2 SEAT RECLINING COVER RH
*13	REAR SIDE SEAT BAND SUB-ASSEMBLY	*14	SEPARATE TYPE REAR SEATBACK PAD
*15	HOG RING	-	-
•	Non-reusable part	-	-

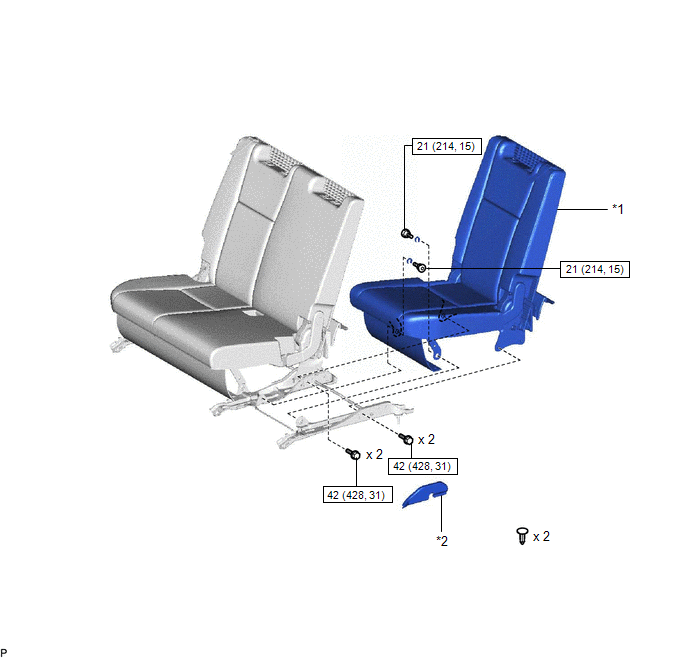

Fig 1: Rear No. 2 Seat Assembly Component Replacements With Torque Specifications (6 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 2 SEAT ASSEMBLY RH	*2	REAR SEAT INNER BELT COVER RH
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

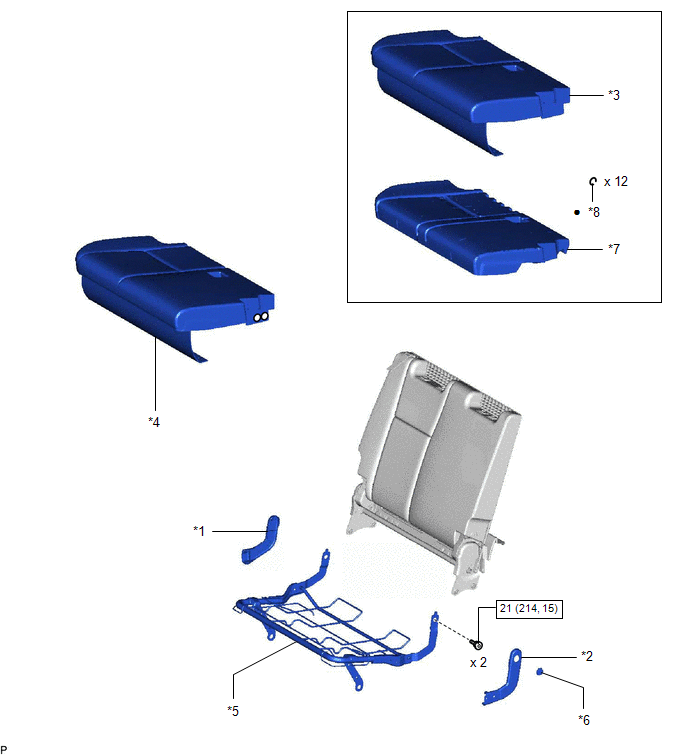

Fig 1: Rear No. 2 Seat Assembly Component Replacements With Torque Specifications (7 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 1 REAR SEAT CUSHION HINGE COVER	*2	NO. 2 REAR SEAT CUSHION HINGE COVER
*3	NO. 2 SEAT CUSHION COVER SUB-ASSEMBLY RH	*4	NO. 2 SEAT CUSHION COVER WITH PAD RH
*5	NO. 2 SEAT CUSHION FRAME SUB-ASSEMBLY RH	*6	REAR SEAT CUSHION HINGE COVER CAP
*7	REAR SEAT CUSHION PAD RH	*8	HOG RING
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

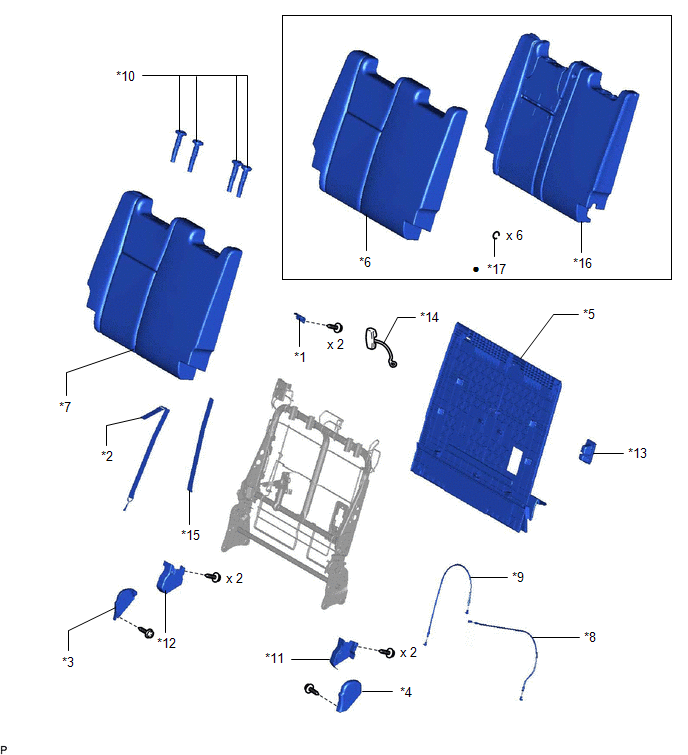

Fig 1: Rear No. 2 Seat Assembly Component Replacements (8 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 2 REAR SEAT COVER BEZEL	*2	NO. 2 REAR SIDE SEAT BAND SUB-ASSEMBLY
*3	NO. 2 SEAT NO. 2 HINGE COVER	*4	NO. 2 SEAT NO. 4 HINGE COVER
*5	NO. 2 SEATBACK BOARD SUB-ASSEMBLY RH	*6	NO. 2 SEATBACK COVER SUB-ASSEMBLY RH
*7	NO. 2 SEATBACK COVER WITH PAD RH	*8	REAR NO. 2 SEAT CUSHION LOCK CABLE ASSEMBLY
*9	REAR NO. 2 SEAT CUSHION LOCK CABLE ASSEMBLY RH	*10	REAR NO. 2 SEAT HEADREST SUPPORT ASSEMBLY
*11	REAR NO. 2 SEAT RECLINING COVER LH	*12	REAR NO. 2 SEAT RECLINING COVER RH
*13	REAR NO. 2 SEATBACK COVER RH	*14	REAR SEAT BELT HOOK
*15	REAR SIDE SEAT BAND SUB-ASSEMBLY	*16	SEPARATE TYPE REAR SEATBACK PAD
*17	HOG RING	-	-
•	Non-reusable part	-	-
