Components [11/2016 - ]: Illustration

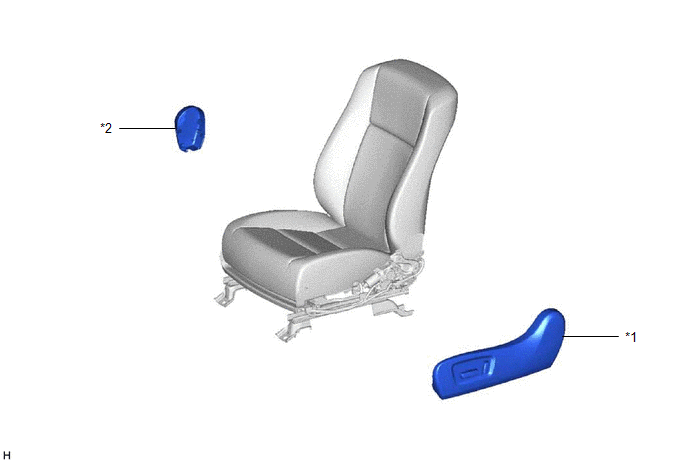

Fig 1: Lumbar Support Adjuster Assembly Component Replacements (1 Of 4)
GTY710479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT SEAT CUSHION SHIELD *2 FRONT SEAT INNER CUSHION SHIELD

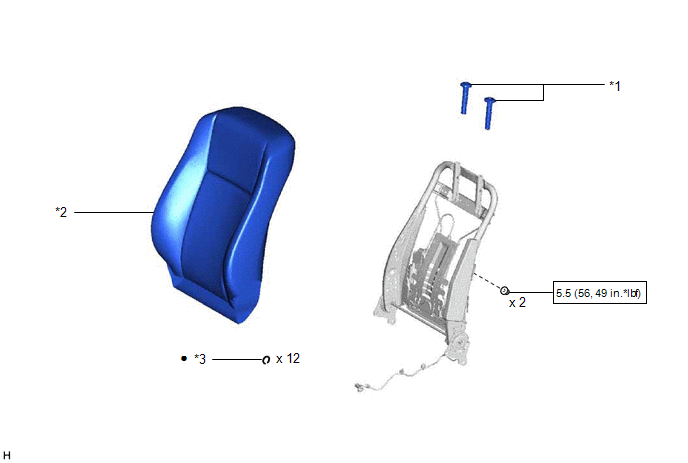

Fig 1: Lumbar Support Adjuster Assembly Component Replacements With Torque Specifications (3 Of 4)
GTY716464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT SEAT HEADREST SUPPORT ASSEMBLY *2 SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
*3 HOG RING - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

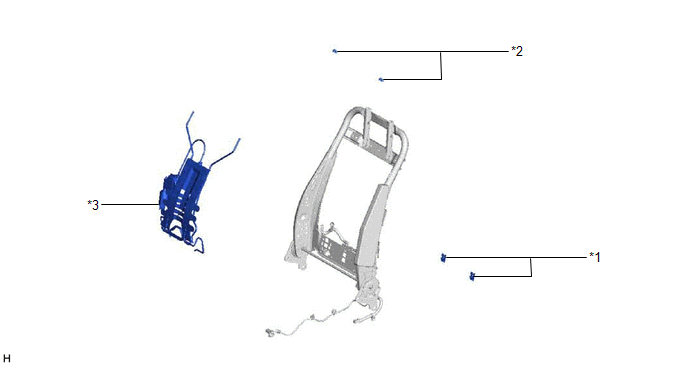

Fig 1: Lumbar Support Adjuster Assembly Component Replacements (4 Of 4)
GTY723025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT SEAT BACK EDGE PROTECTOR *2 FRONT SEAT BACK HOOK
*3 LUMBAR SUPPORT ADJUSTER ASSEMBLY - -
