Il Lustration

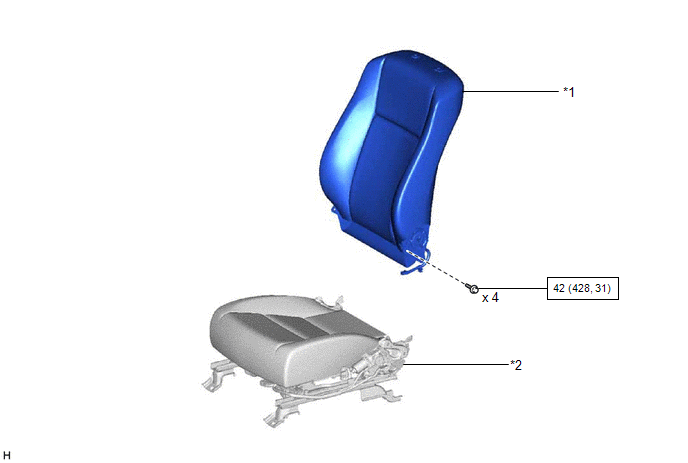

Fig 1: Lumbar Support Adjuster Assembly Component Replacements With Torque Specifications (2 Of 4)
GTY453137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 SEPARATE TYPE FRONT SEATBACK ASSEMBLY *2 SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -
